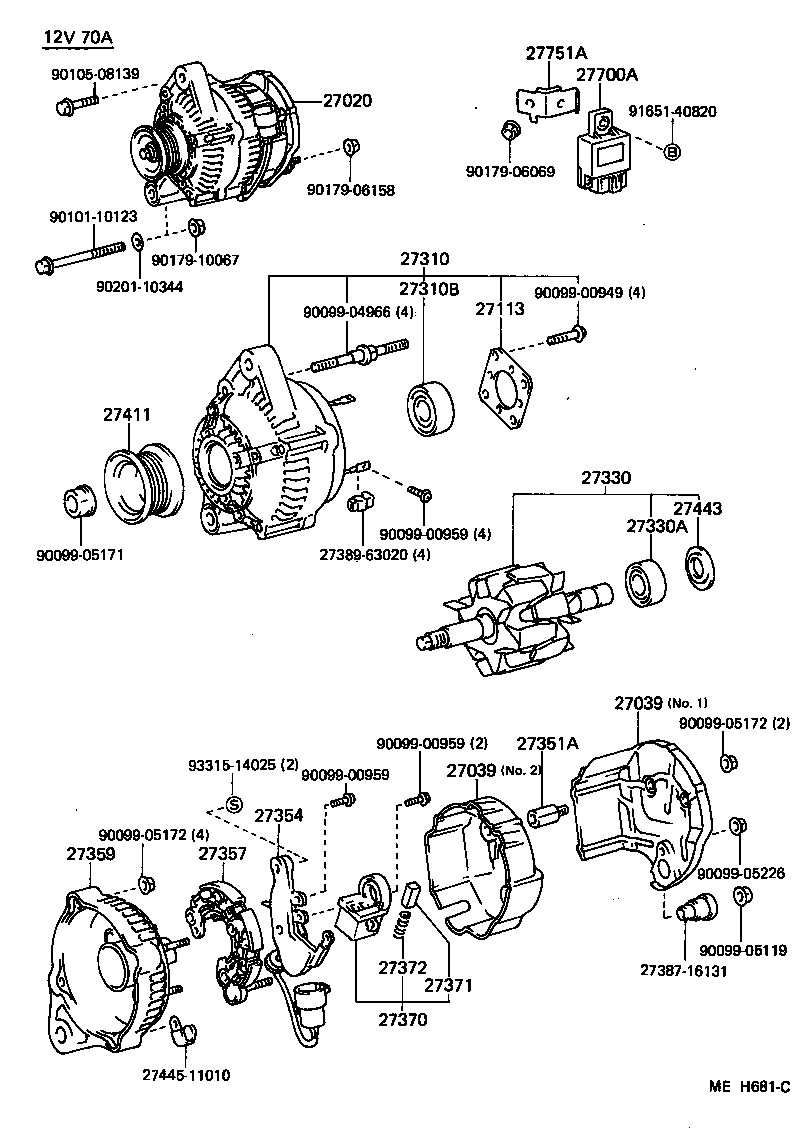

Toyota Mr2 AW11 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-16130	4AGZE..AW11 12V 70A	03/1988 - 12/1989	1
27020-16130	4AGZE..AW11 12V 70A,12V 70A	08/1986 - 03/1988	1
27039 - COVER, ALTERNATOR REAR END
27039-16120	4AGZE..AW11 12V 70A,NO.2	08/1986 - 03/1988	1
27039-16120	4AGZE..AW11 NO.2	03/1988 - 12/1989	1
27039-16130	4AGZE..AW11 NO.1	03/1988 - 12/1989	1
27039-16130	4AGZE..AW11 12V 70A,NO.1	08/1986 - 03/1988	1
27039 - COVER, ALTERNATOR REAR END
27039-16120	4AGZE..AW11 12V 70A,NO.2	08/1986 - 03/1988	1
27039-16120	4AGZE..AW11 NO.2	03/1988 - 12/1989	1
27039-16130	4AGZE..AW11 NO.1	03/1988 - 12/1989	1
27039-16130	4AGZE..AW11 12V 70A,NO.1	08/1986 - 03/1988	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72100	4AGZE..AW11	03/1988 - 12/1989	1
27312-72100	3ALU,4AGZE..AW1# 12V 70A	05/1987 - 03/1988	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16130	4AGZE..AW11	03/1988 - 12/1989	1
27310-16130	4AGZE..AW11 12V 70A	08/1986 - 03/1988	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10159	4AGZE..AW11	03/1988 - 12/1989	1
90099-10159	3ALU,4AGZE..AW1# 12V 70A,OD=46	05/1987 - 03/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101	3ALU,4AG#..AW1# 12V 70A	06/1987 - 03/1988	1
27330-72101	3ALU,4AG#..AW1#	03/1988 - 12/1989	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	3ALU,4AG#..AW1# 12V 60A,70A	06/1984 - 03/1988	1
90099-10140	4AGZE..AW11	03/1988 - 12/1989	1
27351A - COLLAR, ADJUSTING ALTERNATOR
27351-16130	4AGZE..AW11	03/1988 - 12/1989	2
27351-16130	4AGZE..AW11 12V 70A	08/1986 - 03/1988	2
27354 - WIRE SUB-ASSY, ALTERNATOR LEAD
27037-16130	4AGZE..AW11	03/1988 - 12/1989	1
27037-16130	4AGZE..AW11 12V 70A	08/1986 - 03/1988	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-70081	4AGZE..AW11 12V 70A	09/1986 - 03/1988	1
27357-70080	4AGZE..AW11 12V 70A	08/1986 - 09/1986	1
27357-70081	4AGZE..AW11	03/1988 - 12/1989	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16130	4AGZE..AW11 12V 70A	08/1986 - 03/1988	1
27359-16130	4AGZE..AW11	03/1988 - 12/1989	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011	4AG#..AW11	03/1988 - 12/1989	1
27370-16011	4AG#..AW11 12V 60A,70A	06/1984 - 03/1988	1
27371 - BRUSH, ALTERNATOR
27371-63020	3ALU,4AG#..AW1# 12V 60A,70A	06/1984 - 03/1988	2
27371-63020	3ALU,4AG#..AW1#	03/1988 - 12/1989	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	3ALU,4AG#..AW1#	03/1988 - 12/1989	2
27411 - PULLEY, ALTERNATOR
27411-63081	3ALU,4AGZE..AW1# 12V 70A	05/1987 - 06/1987	1
27411-16180	3ALU,4AGZE..AW1# 12V 70A	06/1987 - 03/1988	1
27411-16180	4AG#..AW11	03/1988 - 12/1989	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	3ALU,4AG#..AW1# 12V 60A,70A	06/1984 - 03/1988	1
27443-63020	4AGZE..AW11	03/1988 - 12/1989	1
27700A - REGULATOR ASSY, GENERATOR
27700-64021	4AGZE..AW11 12V 70A	08/1986 - 03/1988	1
27700-64021	4AGZE..AW11	03/1988 - 12/1989	1
27751A - BRACKET, GENERATOR REGULATOR
27751-16010	4AGZE..AW11	03/1988 - 12/1989	1
27751-16010	4AGZE..AW11 12V 70A	08/1986 - 03/1988	1
Common parts
27387-16131
27389-63020
27445-11010
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90099-05226
90101-10123
90105-08139
90179-06069
90179-06158
90179-10067
90201-10344
91651-40820
93315-14025

AW11-WCMQR (1986)

(8608- )4AGZE
