AW11-WCMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )4AGZE

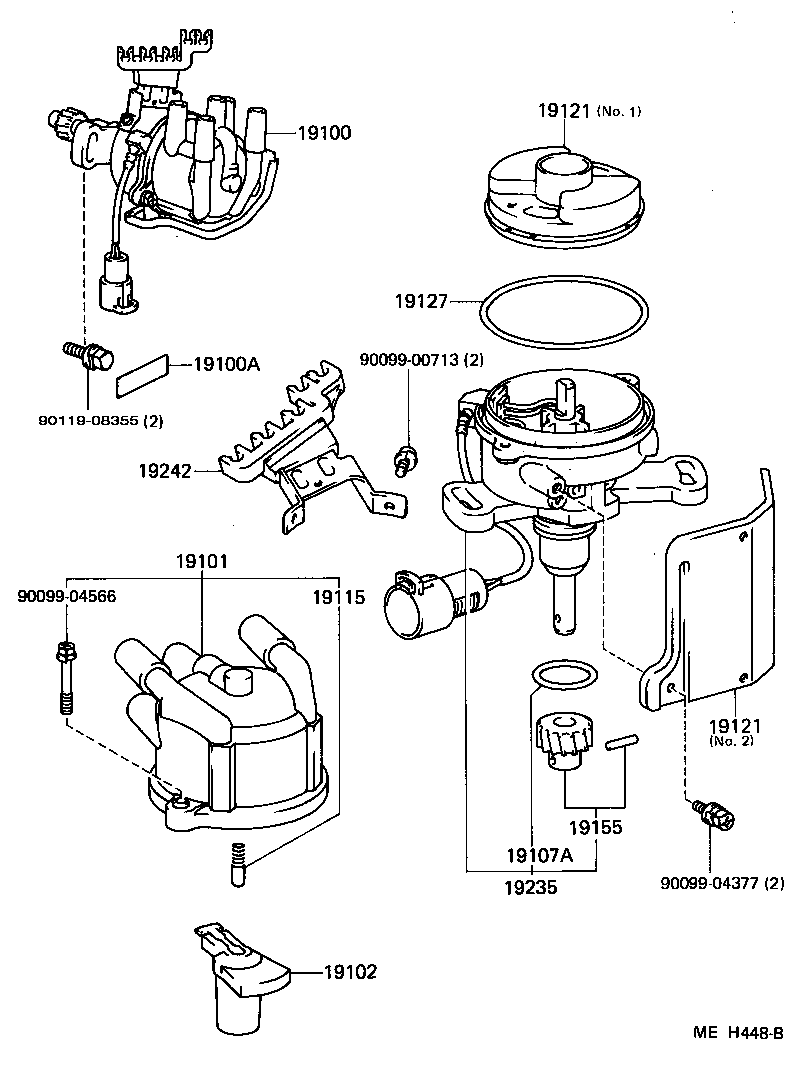

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19121 19127 19155 19235 19242 9009900713 9009904377 9009904566 9011908355
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-16150

4AGZE..AW11

 1
19100A - TAPE, SEALING
90919-24004

3ALU,4AG#..AW1#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-16220

4AG#..AW11

 1
19101-16150

4AGZE..AW11

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11010

4AGZE..AW11

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

4AG#..AW11

 1
19121 - COVER, DUST PROOF
19121-16150

4AGZE..AW11

NO.1

 1
19121-16150

4AGZE..AW11

NO.1

 1
19121-16090

4AGZE..AW11

NO.2

 1
19121-16090

4AGZE..AW11

NO.2

 1
19121 - COVER, DUST PROOF
19121-16150

4AGZE..AW11

NO.1

 1
19121-16150

4AGZE..AW11

NO.1

 1
19121-16090

4AGZE..AW11

NO.2

 1
19121-16090

4AGZE..AW11

NO.2

 1
19127 - PACKING, DUST PROOF
19127-15021

4AG#..AW11

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-16040

4AG#..AW11

 1
19235 - HOUSING, DISTRIBUTOR
19235-16150

4AGZE..AW11

 1
19242 - CLAMP, CORD
19242-16080

4AGZE..AW11

 1
Common parts
90099-00713
90099-04377
90099-04566
90119-08355
