AW11-WCMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

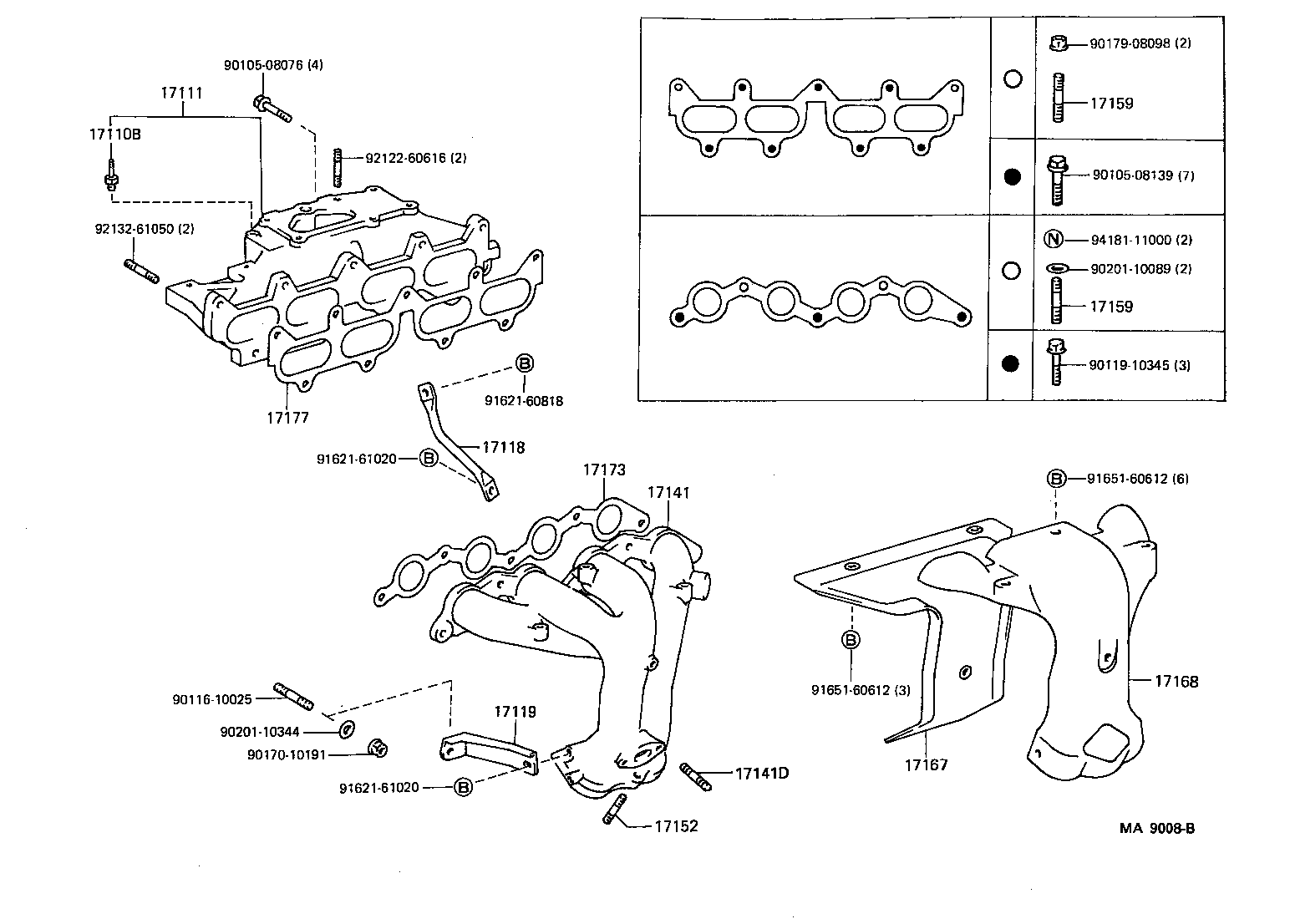

ILLUST NO. 1 OF 2(8608- )4AGZE

Click highlighted areas on diagram

diagram 17110B 17111 17118 17119 17141 17141D 17152 17159 17159 17167 17168 17173 17177 9010508076 9010508139 9011610025 9011910345 9017010191 9017908098 9020110089 9020110344 9162160818 9162161020 9162161020 9165160612 9165160612 9212260616 9213261050 9418111000
Part # Description Qty Price
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90405-04002

4AGZE..AW11

 1
17111 - MANIFOLD, INTAKE
17101-16050

4AGZE..AW11

 1
17118 - STAY, MANIFOLD
17125-16040

4AGZE..AW11

 1
17119 - STAY, MANIFOLD, NO.2
17118-16040

4AG#..AW11

 1
17141 - MANIFOLD, EXHAUST
17141-16210

4AG#..AW11

 1
17141-16170

4AGZE..AW11

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08168

4AG#..AW11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4AG#..AW11

 3
90116-10058

3ALU,4AG#..AW1#

 3
90116-10146

4AG#..AW11

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10037

4AG#..AW11

EXHAUST MANIFOLD

 2
90116-08254

4AGZE..AW11

INTAKE MANIFOLD

 2
90116-08254

4AGZE..AW11

INTAKE MANIFOLD,L=47,S=13&13

 2
90116-08250

4AGZE..AW11

INTAKE MANIFOLD,L=45,S=12&12

 2
90116-10037

4AG#..AW11

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10037

4AG#..AW11

EXHAUST MANIFOLD

 2
90116-08254

4AGZE..AW11

INTAKE MANIFOLD

 2
90116-08254

4AGZE..AW11

INTAKE MANIFOLD,L=47,S=13&13

 2
90116-08250

4AGZE..AW11

INTAKE MANIFOLD,L=45,S=12&12

 2
90116-10037

4AG#..AW11

EXHAUST MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16050

4AGZE..AW11

 1
17167-16050

4AG#..AW11

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16030

4AGZE..AW11

 1
17168-16060

4AG#..AW11

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-16010

4AG#..AW11

 1
17173-16011

4AG#..AW11

 1
Common parts
90105-08076
90105-08139
90116-10025
90119-10345
90170-10191
90179-08098
90201-10089
90201-10344
91621-60818
91621-61020
91651-60612
92122-60616
92132-61050
94181-11000

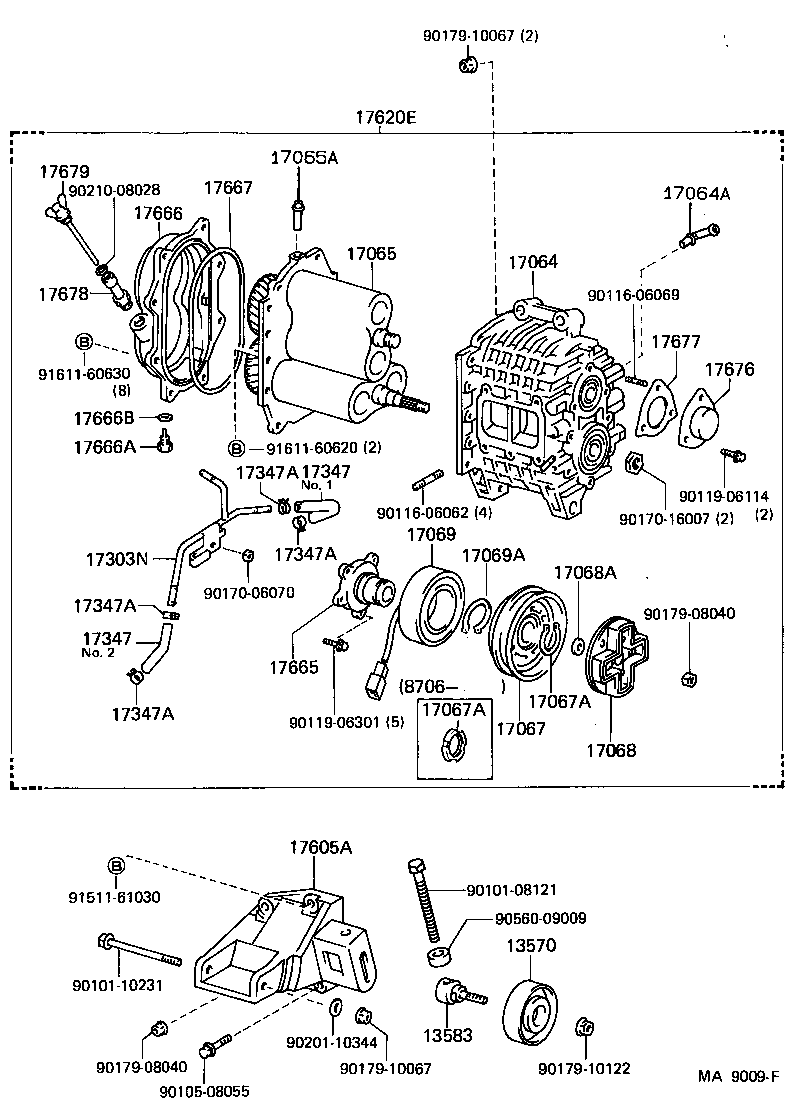

ILLUST NO. 2 OF 2(8608- )4AGZE

Click highlighted areas on diagram

diagram 13570 13583 17064 17064A 17065 17065A 17067 17067A 17067A 17068 17068A 17069 17069A 17303N 17347 17347 17347A 17347A 17347A 17347A 17605A 17620E 17665 17666 17666A 17666B 17667 17676 17677 17678 17679 9010108121 9010110231 9010508055 9011606062 9011606069 9011906114 9011906301 9017006070 9017016007 9017908040 9017908040 9017910067 9017910067 9017910122 9020110344 9021008028 9056009009 9151161030 9161160620 9161160630
Part # Description Qty Price
13570 - IDLER ASSY, V-RIBBED, NO.1
13570-16010

4AGZE..AW11

 1
13583 - SHAFT, IDLER, V-RIBBED BELT(FOR SUPERCHARGER)
13583-16010

4AGZE..AW11

 1
17064 - HOUSING SUB-ASSY, ROTOR
17064-16010

4AGZE..AW11

 1
17064-16011

4AGZE..AW11

 1
17064A - ELBOW(FOR SUPERCHARGER)
90407-06004

4AGZE..AW11

 2
17065 - PLATE SUB-ASSY, ROTOR HOUSING, RR
17065-16010

4AGZE..AW11

 1
17065-16011

4AGZE..AW11

 1
17065A - UNION(FOR SUPERCHARGER)
90406-06002

4AGZE..AW11

 1
17067 - PULLEY SUB-ASSY, CLUTCH
17067-16010

4AGZE..AW11

 1
17067A - RING, SHAFT SNAP(FOR CLUTCH PULLEY SUB-ASSY)
90520-28060

4AGZE..AW11

 1
90179-30006

4AGZE..AW11

 1
17067A - RING, SHAFT SNAP(FOR CLUTCH PULLEY SUB-ASSY)
90520-28060

4AGZE..AW11

 1
90179-30006

4AGZE..AW11

 1
17068 - HUB SUB-ASSY, CLUTCH
17068-16010

4AGZE..AW11

 1
17068A - SHIM(FOR SUPERCHARGER)
90564-08001

4AGZE..AW11

厚さ=0.1,ﾏｰｸ 1,T=0.1

 1
90564-08005

4AGZE..AW11

厚さ=0.9,ﾏｰｸ 5,T=0.9

 1
90564-08001

4AGZE..AW11

厚さ=0.1,ﾏｰｸ 1

 1
90564-08004

4AGZE..AW11

厚さ=0.7,ﾏｰｸ 4,T=0.7

 1
90564-08006

4AGZE..AW11

厚さ=1.1,ﾏｰｸ 6

 1
90564-08004

4AGZE..AW11

厚さ=0.7,ﾏｰｸ 4

 1
90564-08003

4AGZE..AW11

厚さ=0.5,ﾏｰｸ 3,T=0.5

 1
90564-08003

4AGZE..AW11

厚さ=0.5,ﾏｰｸ 3

 1
90564-08005

4AGZE..AW11

厚さ=0.9,ﾏｰｸ 5

 1
90564-08006

4AGZE..AW11

厚さ=1.1,ﾏｰｸ 6,T=1.1

 1
90564-08002

4AGZE..AW11

厚さ=0.3,ﾏｰｸ 2,T=0.3

 1
90564-08002

4AGZE..AW11

厚さ=0.3,ﾏｰｸ 2

 1
17069 - STATOR SUB-ASSY, CLUTCH
17069-16010

4AGZE..AW11

 1
17069A - RING, SHAFT SNAP(FOR CLUTCH STATOR SUB-ASSY)
90520-37003

4AGZE..AW11

 1
17303N - PIPE SUB-ASSY, AIR
17303-16060

4AGZE..AW11

 1
17347 - HOSE, AIR, NO.7
90445-12196

4AGZE..AW11

NO.2

 1
17347-16010

4AGZE..AW11

NO.1

 1
90445-12196

4AGZE..AW11

NO.2

 1
17347-16010

4AGZE..AW11

NO.1

 1
17347 - HOSE, AIR, NO.7
90445-12196

4AGZE..AW11

NO.2

 1
17347-16010

4AGZE..AW11

NO.1

 1
90445-12196

4AGZE..AW11

NO.2

 1
17347-16010

4AGZE..AW11

NO.1

 1
17347A - CLIP(FOR AIR HOSE NO.7)
96132-30600

4AGZE..AW11

 4
17347A - CLIP(FOR AIR HOSE NO.7)
96132-30600

4AGZE..AW11

 4
17347A - CLIP(FOR AIR HOSE NO.7)
96132-30600

4AGZE..AW11

 4
17347A - CLIP(FOR AIR HOSE NO.7)
96132-30600

4AGZE..AW11

 4
17605A - BRACKET, SUB-ASSY, SUPERCHARGER
17625-16010

4AGZE..AW11

 1
17620E - SUPERCHARGER ASSY
17620-16010

4AGZE..AW11

 1
17665 - FLANGE, CLUTCH
17665-16011

4AGZE..AW11

 1
17665-16010

4AGZE..AW11

 1
17666 - COVER, REAR(FOR SUPERCHARGER)
17666-16010

4AGZE..AW11

 1
17666A - PLUG SUB-ASSY, W/HEAD STRAIGHT SCREW(FOR SUPERCHARGER)
90341-12019

4AGZE..AW11

 1
17666B - GASKET, SEAT(FOR SUPERCHARGER)
90430-12005

4AGZE..AW11

 2
17667 - GASKET, REAR COVER(FOR SUPERCHARGER)
17667-70010

4AGZE..AW11

 1
17676 - COVER, HOUSING, FRONT
17676-16010

4AGZE..AW11

 1
17676-16011

4AGZE..AW11

 1
17677 - GASKET, HOUSING FRONT COVER
17677-70010

4AGZE..AW11

 1
17678 - GUIDE, SUPERCHARGER OIL LEVEL GAGE
17678-16010

4AGZE..AW11

 1
17679 - GAGE, SUPERCHARGER OIL LEVEL
17679-16010

4AGZE..AW11

 1
Common parts
90101-08121
90101-10231
90105-08055
90116-06062
90116-06069
90119-06114
90119-06301
90170-06070
90170-16007
90179-08040
90179-10067
90179-10122
90201-10344
90210-08028
90560-09009
91511-61030
91611-60620
91611-60630
