AW11-WCMQF (1984)
Toyota Mr2
Production
Jun 1984
-
Dec 1989
Engine
4AGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

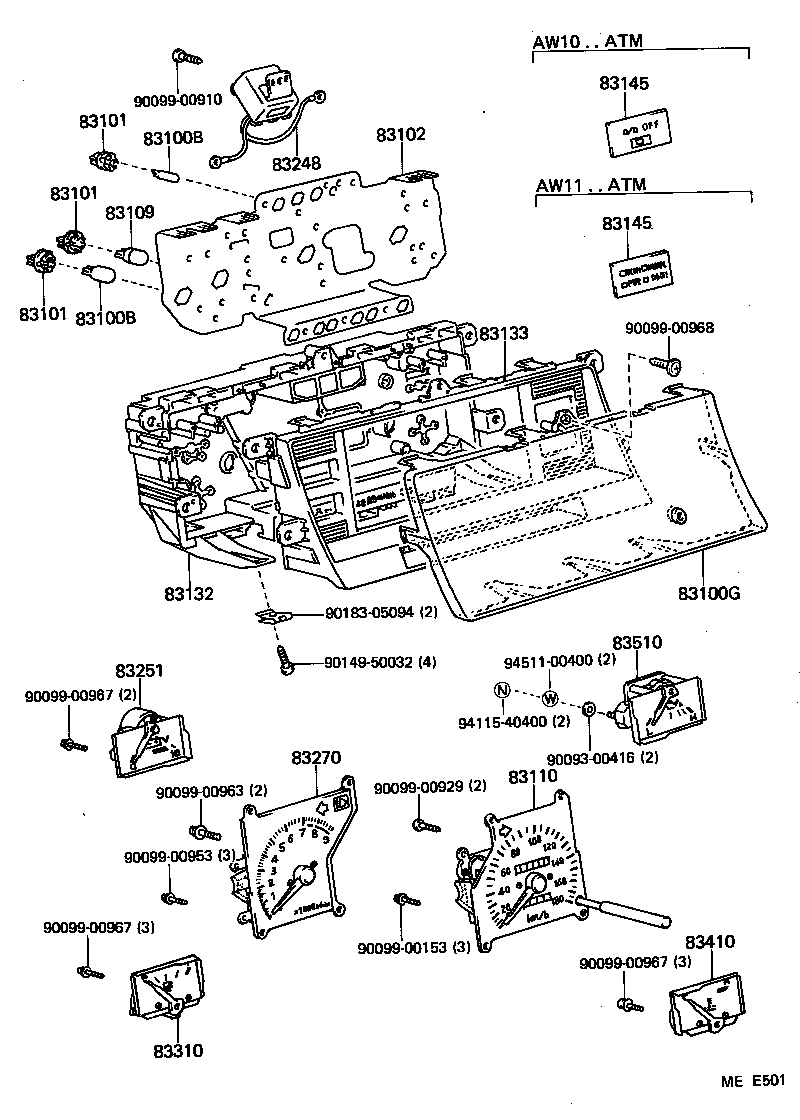

ILLUST NO. 1 OF 2(8406- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AW11 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 90981-11018 |
AW1# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 99132-12034 |
AW1# 12V 3.4W |
4 | ||
| 99132-12034 |
AW1# 12V 3.4W,12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AW11 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 90981-11018 |
AW1# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 99132-12034 |
AW1# 12V 3.4W |
4 | ||
| 99132-12034 |
AW1# 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-17010 |
AW1# |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AW1# 12V 3.4W |
7 | ||
| 83101-14030 |
AW1# 12V 3.4W |
7 | ||
| 83101-14040 |
AW1# 12V 1.4W |
5 | ||
| 83101-14040 |
AW11 12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AW1# 12V 3.4W |
7 | ||
| 83101-14030 |
AW1# 12V 3.4W |
7 | ||
| 83101-14040 |
AW1# 12V 1.4W |
5 | ||
| 83101-14040 |
AW11 12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AW1# 12V 3.4W |
7 | ||
| 83101-14030 |
AW1# 12V 3.4W |
7 | ||
| 83101-14040 |
AW1# 12V 1.4W |
5 | ||
| 83101-14040 |
AW11 12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-17050 |
AW11..5F..TWC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AW1# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
3 | ||
| 83109-24030 |
AW1# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-17020 |
AW11 |
1 | ||
| 83110-17021 |
AW11 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-17030 |
AW11 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-17010 |
AW1# |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-17020 |
AW1# |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-17030 |
AW11..5F |
1 | ||
| 83251-17010 |
AW11..5F |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-17150 |
AW11..TWC |
1 | ||
| 83242-17030 |
AW11 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-17030 |
AW1# |
1 | ||
| 83243-17010 |
AW1# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-17030 |
AW1# |
1 | ||
| 83244-17010 |
AW1# |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-17010 |
AW11 |
1 | ||
| 83246-17030 |
AW11 |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 90099-00967 | ||||
| 90099-00968 | ||||
| 90149-50032 | ||||
| 90183-05094 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

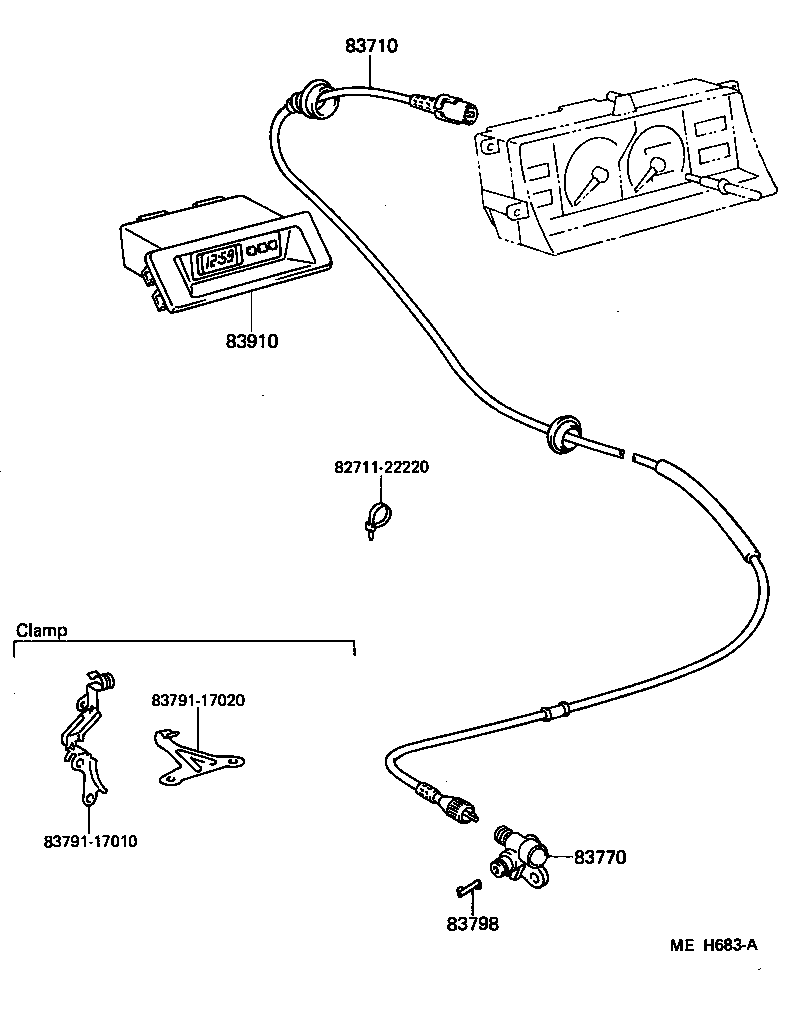

ILLUST NO. 2 OF 2(8406- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-17011 |
AW11..5F..TWC |
1 | ||
| 83710-17010 |
AW11..5F..TWC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 83910-17010 |
AW1# |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 83791-17010 | ||||
| 83791-17020 | ||||
