AW11-WCMQF (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )

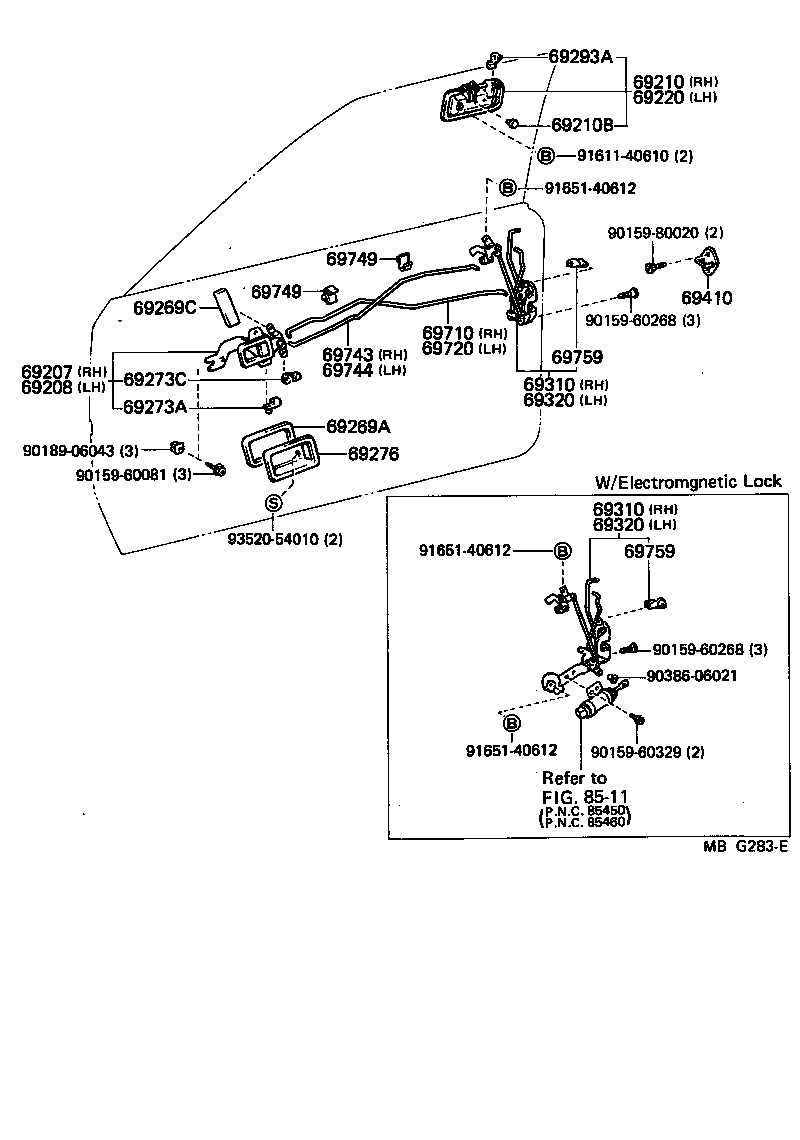

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69269A 69269C 69273A 69273C 69276 69293A 69310 69310 69320 69320 69410 69710 69720 69743 69744 69749 69749 69759 69759 8511 9015960081 9015960268 9015960268 9015960329 9015980020 9018906043 9038606021 9161140610 9165140612 9165140612 9165140612 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206-1208001

AW1#

BLACK,BLACK

 1
69206-1208001

AW1#

BLACK,TRIM2#

 1
69206-1208014

AW1#

DARK BLUE,TRIM8#

 1
69206-1208014

AW1#

BLUE,DARK BLUE

 1
69206-1208011

AW1#

BLACK,TRIM2#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69205-1208011

AW1#

BLACK,TRIM2#

 1
69205-1208001

AW1#

BLACK,TRIM2#

 1
69205-1208001

AW1#

BLACK,BLACK

 1
69205-1208014

AW1#

BLUE,DARK BLUE

 1
69205-1208014

AW1#

DARK BLUE,TRIM8#

 1
69205-1208014

AW1#

DARK BLUE,DARK BLUE,TRIM8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-1702008

AW1#

SUPER WHITE 3,043

 1
69210-1702013

AW1#

SILVER M.,21E

 1
69210-1702003

AW1#

GRAY M.,167

 1
69210-1702018

AW1#

WHITE,28J

 1
69210-14080

AW1#

 1
69210-1702002

AW1#

RED MICA,3H4

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

AW1#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-1702003

AW1#

GRAY M.,167

 1
69220-1702013

AW1#

SILVER M.,21E

 1
69220-1702008

AW1#

SUPER WHITE 3,043

 1
69220-1702002

AW1#

RED MICA,3H4

 1
69220-14080

AW1#

 1
69220-1702018

AW1#

WHITE,28J

 1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269-14010

AW1#

COLD SPEC

 2
69269-17010

AW1#

COLD SPEC

 2
69269-17010

AW1#

ｶﾝﾚｲﾁ ｼﾖｳ

 2
69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69289-17010

AW1#

ｶﾝﾚｲﾁｼﾖｳ

 2
69289-17010

AW1#

COLD SPEC

 2
69289-12010

AW1#

COLD SPEC

 2
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20020

AW1#

左側

 1
69759-20030

AW1#

RH

 1
69759-20030

AW1#

右側

 1
69759-20020

AW1#

LH

 1
69273C - SNAP, DOOR INSIDE HANDLE LINK
69759-20060

AW1#

RH

 1
69759-20060

AW1#

右側

 1
69759-20070

AW1#

LH

 1
69759-20070

AW1#

左側

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1403014

AW1#

DARK BLUE,TRIM8#

 2
69277-1403004

AW1#

BLUE,BLUE

 1
69260-1004058

AW1#

BLUE,DARK BLUE

 2
69277-1403001

AW1#

BLACK,TRIM2#

 2
69277-1403011

AW1#

BLACK,TRIM2#

 2
69277-1403001

AW1#

BLACK,BLACK

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

AW1#

右側

 1
69293-12040

AW1#

LH

 1
69293-12040

AW1#

左側

 1
69293-12030

AW1#

RH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-17030

AW11

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69310-17030

AW11

W/*EL

 1
69310-17010

AW1#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-17030

AW11

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69310-17030

AW11

W/*EL

 1
69310-17010

AW1#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-17030

AW11

W/*EL

 1
69320-17030

AW11

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69320-17010

AW1#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-17030

AW11

W/*EL

 1
69320-17030

AW11

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69320-17010

AW1#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AW1#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-17010

AW1#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-17010

AW1#

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69733-17010

AW1#

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69734-17010

AW1#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-17020

AW1#

 4
69749-20010

AW1#

 4
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-17020

AW1#

 4
69749-20010

AW1#

 4
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20030

AW1#

LH,LOCKING LINK

 1
69759-20020

AW1#

RH,LOCKING LINK

 1
69759-20050

AW1#

LH,OPEN LINK

 1
69759-20030

AW1#

LH,LOCKING LINK

 1
69759-20040

AW1#

RH,OPEN LINK

 1
69759-20020

AW1#

RH,LOCKING LINK

 1
69759-20040

AW1#

LH,OPEN LINK

 1
69759-20050

AW1#

RH,OPEN LING

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20030

AW1#

LH,LOCKING LINK

 1
69759-20020

AW1#

RH,LOCKING LINK

 1
69759-20050

AW1#

LH,OPEN LINK

 1
69759-20030

AW1#

LH,LOCKING LINK

 1
69759-20040

AW1#

RH,OPEN LINK

 1
69759-20020

AW1#

RH,LOCKING LINK

 1
69759-20040

AW1#

LH,OPEN LINK

 1
69759-20050

AW1#

RH,OPEN LING

 1
Common parts
90159-60081
90159-60268
90159-60329
90159-80020
90189-06043
90386-06021
91611-40610
91651-40612
93520-54010
