AW11-WCMQF (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )

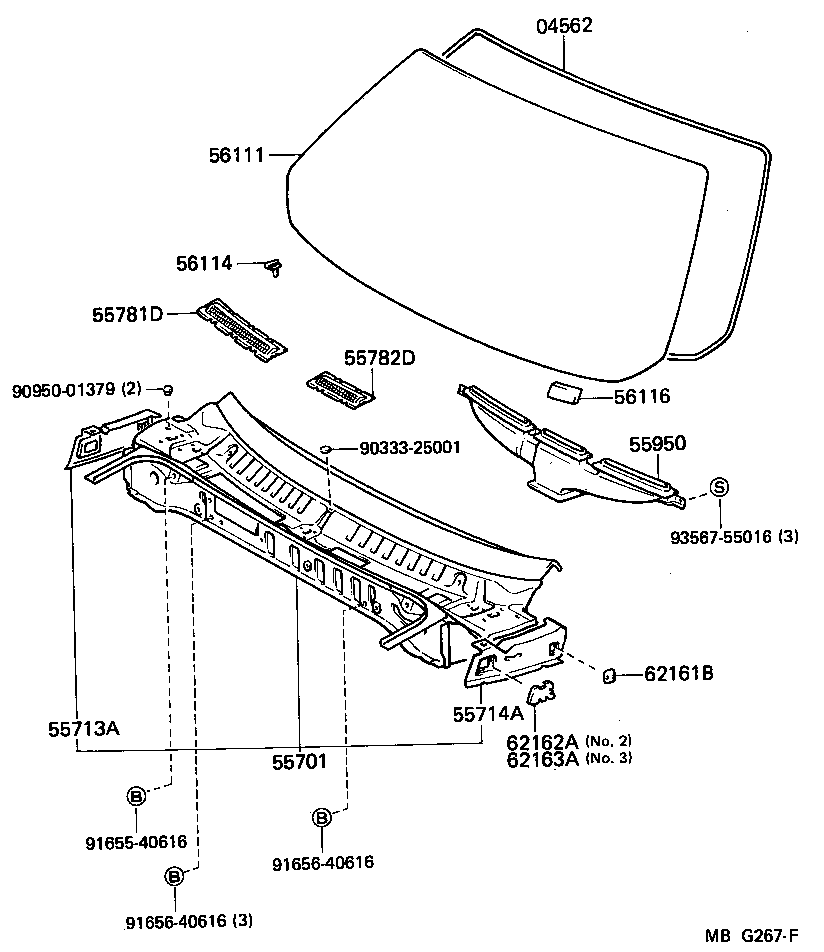

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55781D 55782D 55950 56111 56114 56116 62161B 62162A 62163A 9033325001 9095001379 9165540616 9165640616 9165640616 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

AW1#

 1
55701 - PANEL SUB-ASSY, COWL
55700-17030

AW1#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-17010

AW1#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-17010

AW1#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-17010

AW1#

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-17010

AW1#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-1701004

AW1#

DARK BLUE,TRIM8#

 1
55950-1701001

AW1#

BLACK,TRIM2#

 1
55950-17010

AW1#

 1
55950-1701004

AW1#

BLUE,DARK BLUE

 1
55950-1701011

AW1#

BLACK,TRIM2#

 1
55950-1701001

AW1#

BLACK,BLACK

 1
56111 - GLASS, WINDSHIELD
56111-17020

AW1#

*TL,T=5.3,*TL,T=5.3

 1
56111-17070

AW11

*TL,T=5.3,ﾌﾞﾛﾝｽﾞ,G LIMITED,BRONZE,*TL,T=5.3

 1
56111-17050

AW11

WHITE LANNER,BRONZE,*ZT,T=5.0

 1
56111-17070

AW11

*TL,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-17020

AW1#

*TL,T=5.3

 1
56111-17010

AW1#

*TZT,T=5.0

 1
56111-17040

AW11

*TL,T=5.3

 1
56111-17090

AW11

*TL,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-17010

AW1#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-17020

AW1#

 2
62161B - COVER, COWL SIDE PANEL SERVICE HOLE
62161-17010

AW1#

 2
62162A - COVER, COWL SIDE PANEL HOLE, NO.2
62162-17010

AW1#

 1
62163A - COVER, COWL SIDE PANEL HOLE, NO.3
62163-17010

AW1#

 1
Common parts
90333-25001
90950-01379
91655-40616
91656-40616
93567-55016
