AW10-WCPSS (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 3ALU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

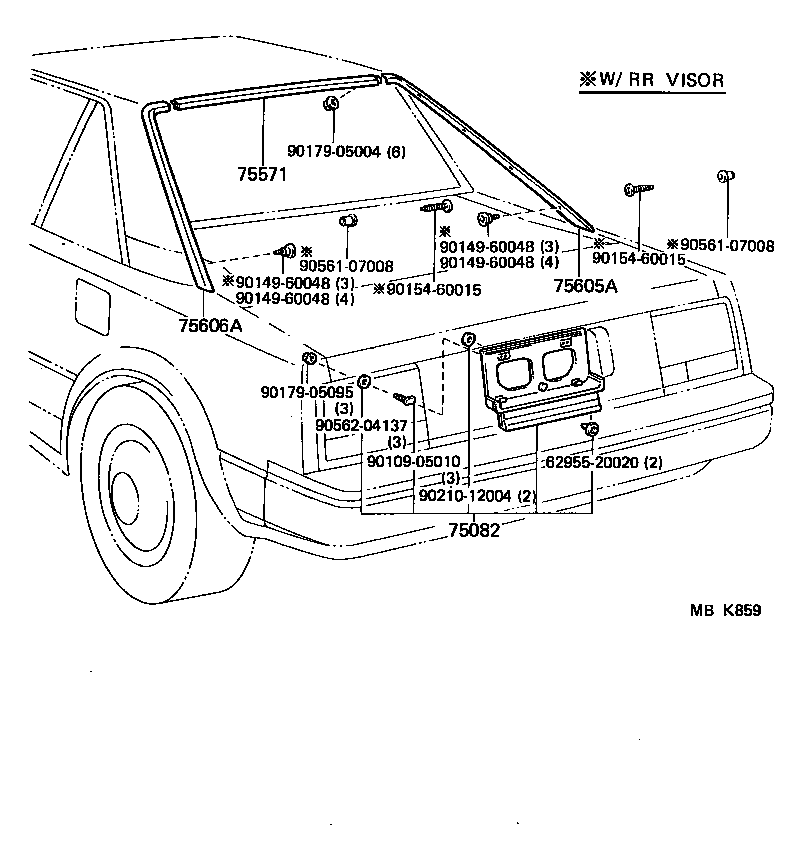

(8406-8608)

Click highlighted areas on diagram

diagram 6295520020 75082 75571 75605A 75606A 9010905010 9014960048 9014960048 9014960048 9014960048 9015460015 9015460015 9017905004 9017905095 9021012004 9056107008 9056107008 9056204137
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-19315

AW1#

 1
75082-17011

AW1#

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-19015

AW1#

 1
75507-17010

AW1#

 1
75605A - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75605-19055

AW1#

W/RR VISOR

 1
75605-17020

AW1#

W/RR VISOR

 1
75605-17010

AW1#

 1
75605-19045

AW1#

 1
75606A - MOULDING SUB-ASSY, QUARTER OUTSIDE, LH
75606-19035

AW1#

 1
75606-17020

AW1#

W/RR VISOR

 1
75606-19045

AW1#

W/RR VISOR

 1
75606-17010

AW1#

 1
Common parts
62955-20020
90109-05010
90149-60048
90154-60015
90179-05004
90179-05095
90210-12004
90561-07008
90562-04137

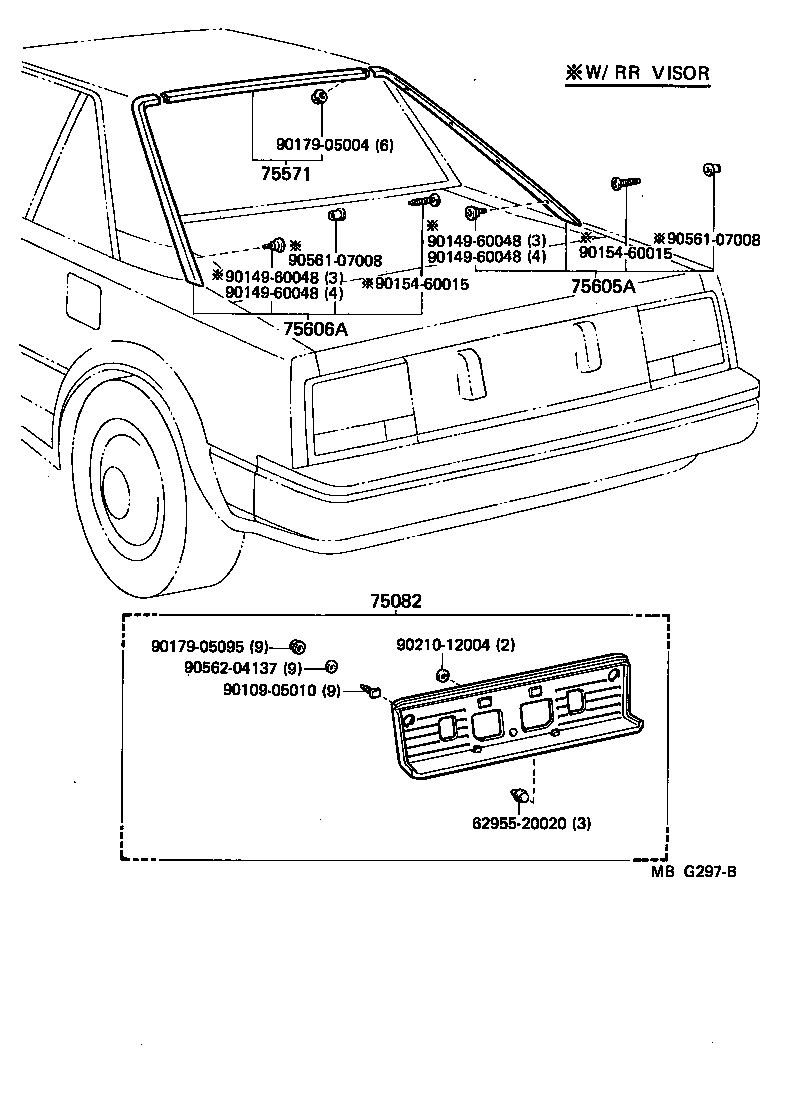

(8608- )

Click highlighted areas on diagram

diagram 6295520020 75082 75571 75605A 75606A 9010905010 9014960048 9014960048 9014960048 9014960048 9015460015 9015460015 9017905004 9017905095 9021012004 9056107008 9056107008 9056204137
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-19315

AW1#

 1
75082-17011

AW1#

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-19015

AW1#

 1
75507-17010

AW1#

 1
75605A - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75605-19055

AW1#

W/RR VISOR

 1
75605-17020

AW1#

W/RR VISOR

 1
75605-17010

AW1#

 1
75605-19045

AW1#

 1
75606A - MOULDING SUB-ASSY, QUARTER OUTSIDE, LH
75606-19035

AW1#

 1
75606-17020

AW1#

W/RR VISOR

 1
75606-19045

AW1#

W/RR VISOR

 1
75606-17010

AW1#

 1
Common parts
62955-20020
90109-05010
90149-60048
90154-60015
90179-05004
90179-05095
90210-12004
90561-07008
90562-04137
