AW10-WCPSS (1984)
Toyota Mr2
Production
Jun 1984
-
Dec 1989
Engine
3ALU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8406- )

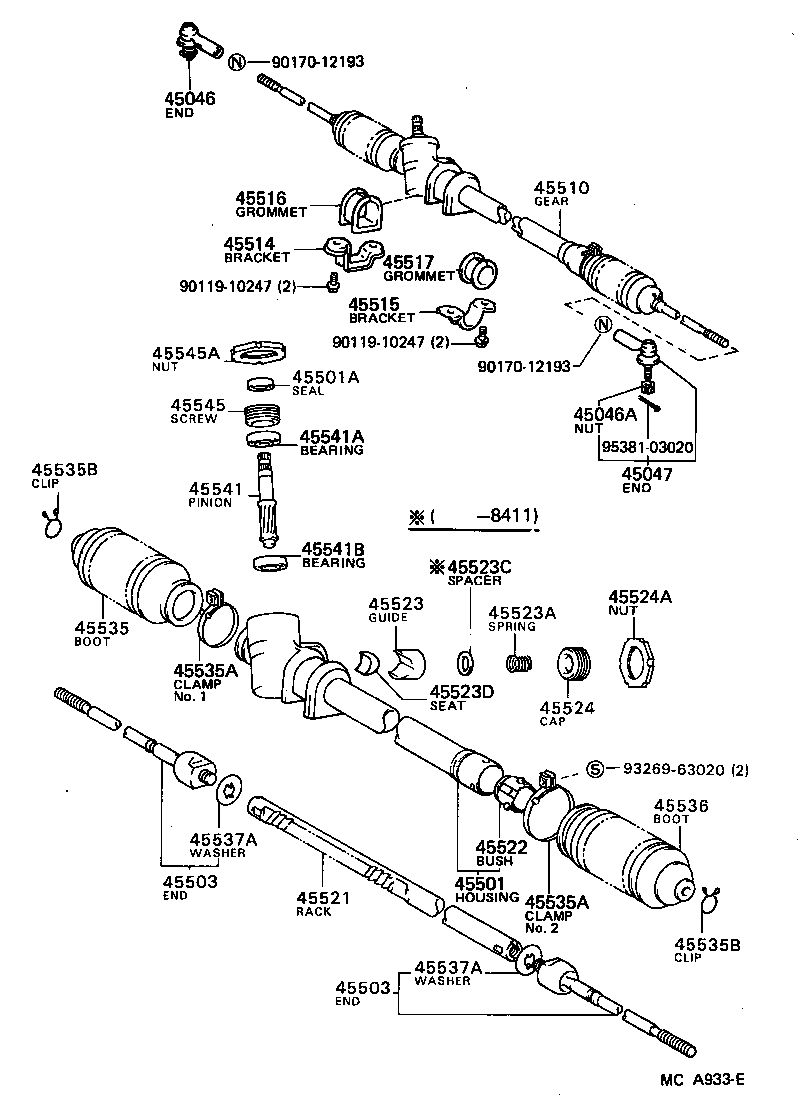

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AW1# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AW1# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29135 |
AW1# |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-17010 |
AW1# |
1 | ||
| 45501-17011 |
AW1# |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
AW1# |
1 | ||
| 90311-15001 |
AW1# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19065 |
AW1# |
2 | ||
| 45503-19066 |
AW1# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19065 |
AW1# |
2 | ||
| 45503-19066 |
AW1# |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-17010 |
AW1# |
1 | ||
| 45510-17011 |
AW1# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-17010 |
AW1# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-17010 |
AW1# |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-17010 |
AW1# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12080 |
AW1# |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-17010 |
AW1# |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-17010 |
AW1# |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-17012 |
AW1# |
1 | ||
| 45523-17011 |
AW1# |
1 | ||
| 45523-17010 |
AW1# |
1 | ||
| 45523-12040 |
AW1# |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-25013 |
AW1# |
1 | ||
| 90501-26038 |
AW1# |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AW1# |
1 | ||
| 45523D - SEAT, RACK GUIDE | ||||
| 44277-17010 |
AW1# |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AW1# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
AW1# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AW1# |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-41001 |
AW1# NO.2 BOOT |
1 | ||
| 90460-43001 |
AW1# NO.1 BOOT |
1 | ||
| 90949-01453 |
AW1# NO.2 BOOT |
1 | ||
| 90461-10273 |
AW1# NO.1 BOOT |
1 | ||
| 90949-01453 |
AW1# NO.2 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-41001 |
AW1# NO.2 BOOT |
1 | ||
| 90460-43001 |
AW1# NO.1 BOOT |
1 | ||
| 90949-01453 |
AW1# NO.2 BOOT |
1 | ||
| 90461-10273 |
AW1# NO.1 BOOT |
1 | ||
| 90949-01453 |
AW1# NO.2 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AW1# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AW1# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12011 |
AW1# |
1 | ||
| 45536-17010 |
AW1# |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14009 |
AW1# |
2 | ||
| 90214-14002 |
AW1# |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14009 |
AW1# |
2 | ||
| 90214-14002 |
AW1# |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-17010 |
AW1# |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
AW1# |
1 | ||
| 90363-15003 |
AW1# |
1 | ||
| 90363-15015 |
AW1# |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
AW1# |
1 | ||
| 90363-13001 |
AW1# |
1 | ||
| 90363-13004 |
AW1# |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AW1# |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AW1# |
1 | ||
| Common parts | ||||
| 90119-10247 | ||||
| 90170-12193 | ||||
| 93269-63020 | ||||
| 95381-03020 | ||||
