AW10-WCPSS (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 3ALU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )3ALU

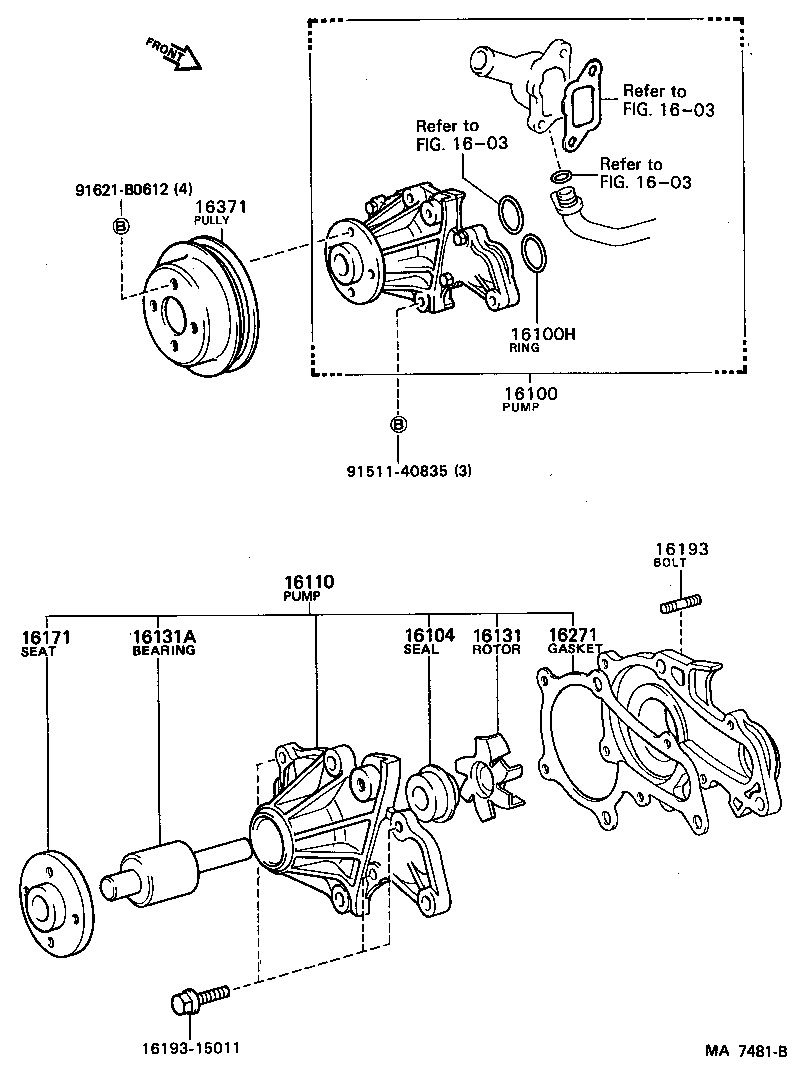

Click highlighted areas on diagram

diagram 1603 1603 1603 16100 16100H 16104 16110 16131 16131A 16171 16193 1619315011 16271 16371 9151140835 91621B0612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19105

3ALU..AW10

 1
16100H - RING, O(FOR WATER PUMP)
96711-24035

3ALU,4AG#..AW1#

 1
16104 - SEAL SET, WATER PUMP
16104-15020

3ALU..AW10

AISIN

 1
16104-15060

3ALU..AW10

AISAN

 1
16104-70010

3ALU..AW10

AISIN

 1
16104-15020

3ALU,4AG#..AW1#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19045

3ALU..AW10

 1
16110-19046

3ALU..AW10

 1
16131 - ROTOR, WATER PUMP
16131-15070

3ALU..AW10

AISAN

 1
16131-15080

3ALU..AW10

AISIN

 1
16131-15050

3ALU..AW10

 1
16131-15051

3ALU..AW10

 1
16131A - BEARING, WATER PUMP
90369-35043

3ALU,4AG#..AW1#

 1
90369-35021

3ALU,4AG#..AW1#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-15050

3ALU..AW10

 1
16171-15070

3ALU..AW10

AISAN

 1
16171-15050

3ALU..AW10

AISIN

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
92122-60816

3ALU,4AG#..AW1#

 2
16271 - GASKET, WATER PUMP
16124-15010

3ALU,4AG#..AW1#

 1
16371 - PULLEY, FAN
16371-15060

3ALU..AW10

 1
Common parts
16193-15011
91511-40835
91621-B0612
Linked diagrams
1603
