AW10-WCMSS (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

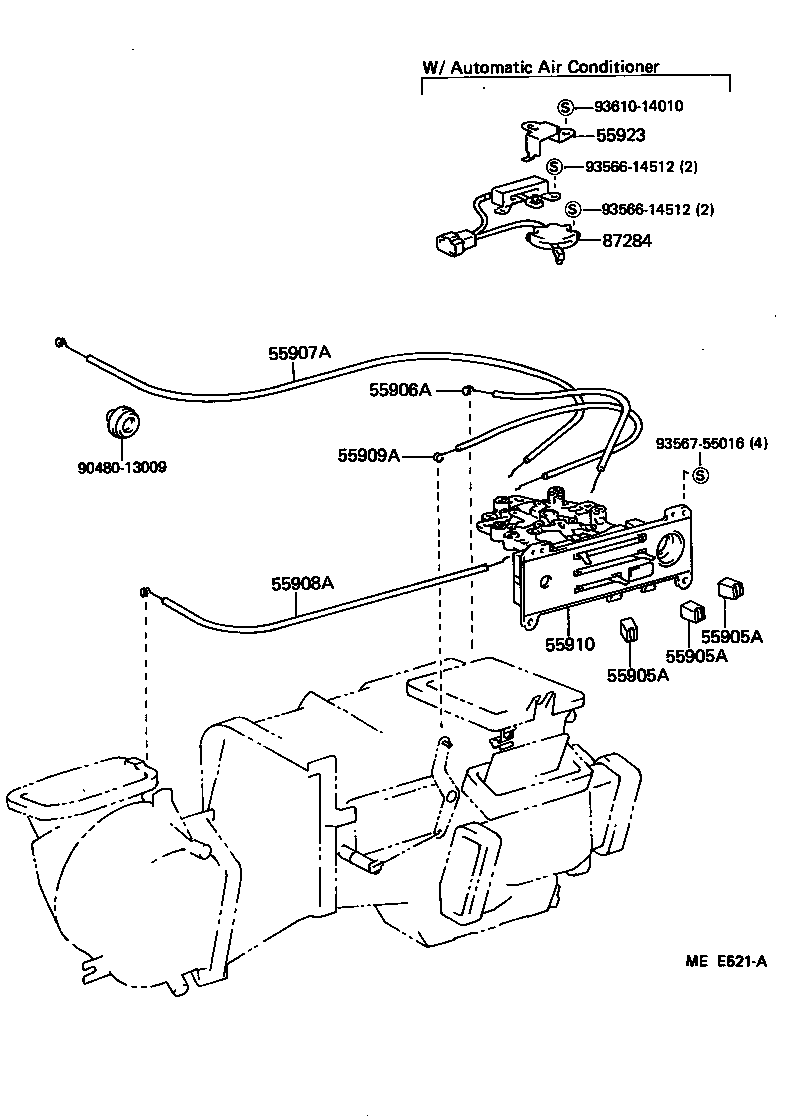

ILLUST NO. 1 OF 3(8406-8608)

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 55923 87284 9048013009 9356614512 9356614512 9356755016 9361014010
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89110

AW1#

 3
55905-17020

AW10

ECON

 1
55905-17020

AW1#

ECON

 1
55905-17010

AW1#

A/C

 1
55905-17010

AW10

A/C

 1
55905A - KNOB, HEATER CONTROL
55905-89110

AW1#

 3
55905-17020

AW10

ECON

 1
55905-17020

AW1#

ECON

 1
55905-17010

AW1#

A/C

 1
55905-17010

AW10

A/C

 1
55905A - KNOB, HEATER CONTROL
55905-89110

AW1#

 3
55905-17020

AW10

ECON

 1
55905-17020

AW1#

ECON

 1
55905-17010

AW1#

A/C

 1
55905-17010

AW10

A/C

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-17010

AW1#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-17010

AW1#

 1
55907-17011

AW1#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-17010

AW1#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-17010

AW1#

 1
55909-17011

AW1#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-17030

AW1#

 1
55910-17040

AW1#

ｵ-ﾄｴｱｺﾝ

 1
55910-17010

AW1#

 1
Common parts
90480-13009
93566-14512
93567-55016
93610-14010

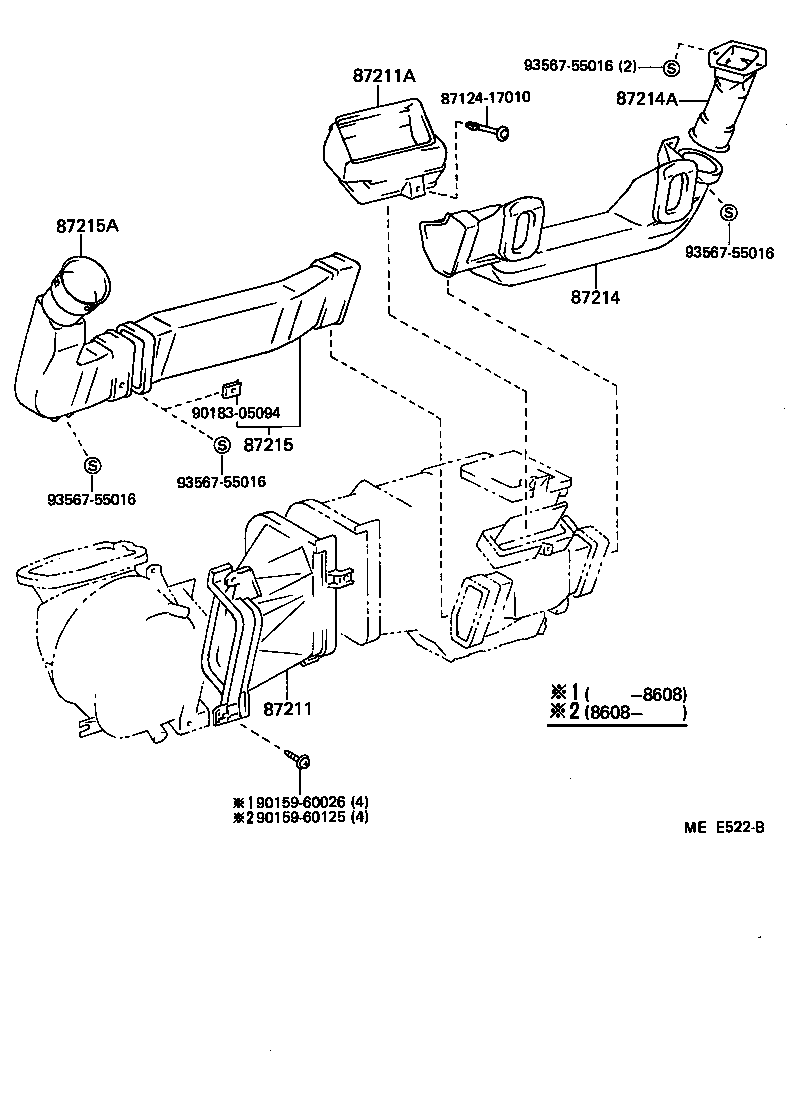

ILLUST NO. 3 OF 3(8406- )

Click highlighted areas on diagram

diagram 8712417010 87211 87211A 87214 87214A 87215 87215A 9015960026 9015960125 9018305094 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-17010

AW1#

 1
87211A - DUCT, AIR, NO.2
55847-17010

AW1#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55844-17010

AW1#

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55843-17010

AW1#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55831-17040

AW1#

 1
55831-17010

AW1#

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55848-17030

AW1#

 1
55848-17010

AW1#

 1
Common parts
87124-17010
90159-60026
90159-60125
90183-05094
93567-55016

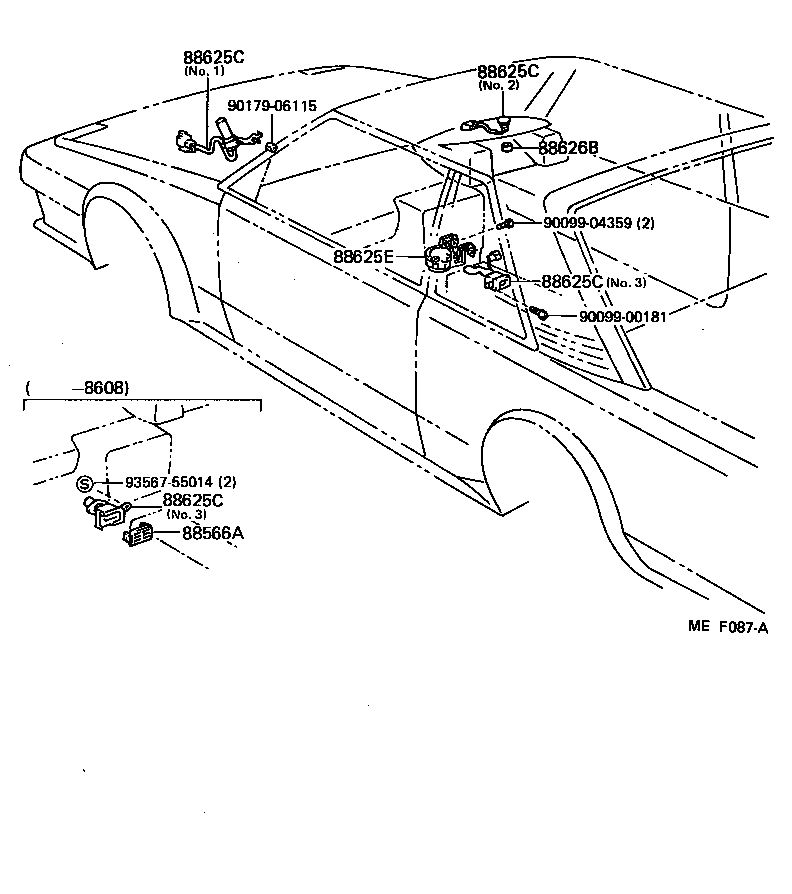

ILLUST NO. 2 OF 3(8406- )

Click highlighted areas on diagram

diagram 88566A 88625C 88625C 88625C 88625C 88625E 88626B 9009900181 9009904359 9017906115 9356755014
Part # Description Qty Price
Common parts
90099-00181
90099-04359
90179-06115
93567-55014

ILLUST NO. 1 OF 3(8608- )

Click highlighted areas on diagram

diagram 55905A 55905A 55907A 55909A 55910 55910B 5593317010 5593317010 55937 55937 8302 8401 87284 9016430003 9048013015 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89110

AW1#

 3
55905-17020

AW10

ECON

 1
55905-17020

AW1#

ECON

 1
55905-17010

AW1#

A/C

 1
55905-17010

AW10

A/C

 1
55905A - KNOB, HEATER CONTROL
55905-89110

AW1#

 3
55905-17020

AW10

ECON

 1
55905-17020

AW1#

ECON

 1
55905-17010

AW1#

A/C

 1
55905-17010

AW10

A/C

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-17010

AW1#

 1
55907-17011

AW1#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-17010

AW1#

 1
55909-17011

AW1#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-17030

AW1#

 1
55910-17040

AW1#

ｵ-ﾄｴｱｺﾝ

 1
55910-17010

AW1#

 1
55910B - BULB, HEATER CONTROL
90010-01017

AW1#

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-17030

AW1#

 2
55937 - KNOB, HEATER CONTROL LEVER
55905-17030

AW1#

 2
Common parts
55933-17010
90164-30003
90480-13015
93567-55016
Linked diagrams
8302
8401
