AW10-WCMSS (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )CP

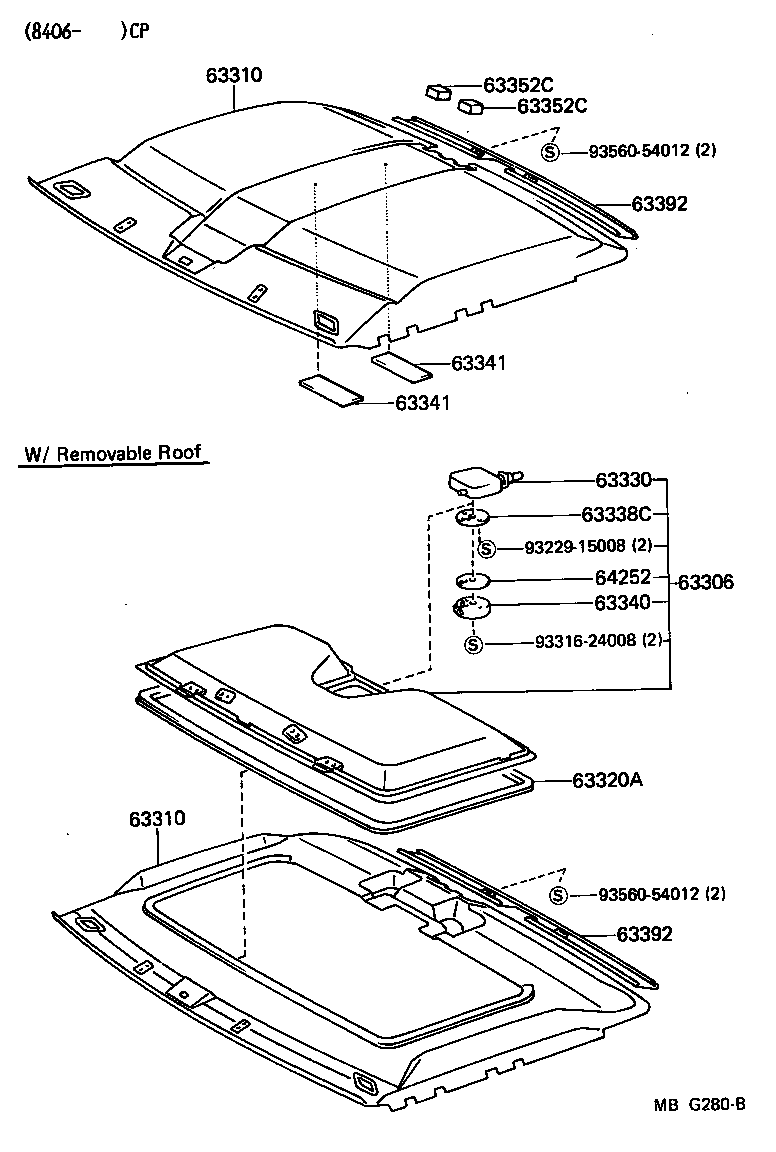

Click highlighted areas on diagram

diagram 63306 63310 63310 63320A 63330 63338C 63340 63341 63341 63352C 63352C 63392 63392 64252 9322915008 9331624008 9356054012 9356054012
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63350-1701003

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63350-1701103

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63310 - HEADLINING ASSY, ROOF
63311-1704003

AW1#

W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY

 1
63311-1703101

AW1#..CP

BLACK,BLACK

 1
63311-1703103

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63311-1703104

AW1#..CP

BLUE,DARK BLUE

 1
63311-1703104

AW1#..CP

DARK BLUE,TRIM8#

 1
63311-1704103

AW1#

W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY

 1
63311-1703003

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63311-1703101

AW1#..CP

BLACK,TRIM2#

 1
63310 - HEADLINING ASSY, ROOF
63311-1704003

AW1#

W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY

 1
63311-1703101

AW1#..CP

BLACK,BLACK

 1
63311-1703103

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63311-1703104

AW1#..CP

BLUE,DARK BLUE

 1
63311-1703104

AW1#..CP

DARK BLUE,TRIM8#

 1
63311-1704103

AW1#

W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY

 1
63311-1703003

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63311-1703101

AW1#..CP

BLACK,TRIM2#

 1
63320A - MOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
63318-1701003

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63330 - LOCK ASSY, SUNSHADE TRIM
63330-89101

AW1#

 1
63338C - STOPPER, SUNSHADE LOCK, NO.2
63338-12010

AW1#

 1
63340 - HANDLE ASSY, SUNSHADE TRIM LOCK
63340-1701003

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-17010

AW1#..CP

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-17010

AW1#..CP

 2
63352C - PAD, ROOF HEADLINING, END
63352-17010

AW1#..CP

 2
63352C - PAD, ROOF HEADLINING, END
63352-17010

AW1#..CP

 2
63392 - TRIM, ROOF HEADLINING, REAR
63392-1701004

AW1#

BLUE,DARK BLUE

 1
63392-1701001

AW1#

BLACK,TRIM2#

 1
63392-1701001

AW1#

BLACK,BLACK

 1
63392-1701004

AW1#

DARK BLUE,TRIM8#

 1
63392-1701011

AW1#

BLACK,TRIM2#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1701004

AW1#

BLUE,DARK BLUE

 1
63392-1701001

AW1#

BLACK,TRIM2#

 1
63392-1701001

AW1#

BLACK,BLACK

 1
63392-1701004

AW1#

DARK BLUE,TRIM8#

 1
63392-1701011

AW1#

BLACK,TRIM2#

 1
64252 - SPACER, SUNSHADE TRIM
64252-17010

AW1#

 1
64252-12010

AW1#

 1
Common parts
93229-15008
93316-24008
93560-54012
