AW10-WCMSS (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )

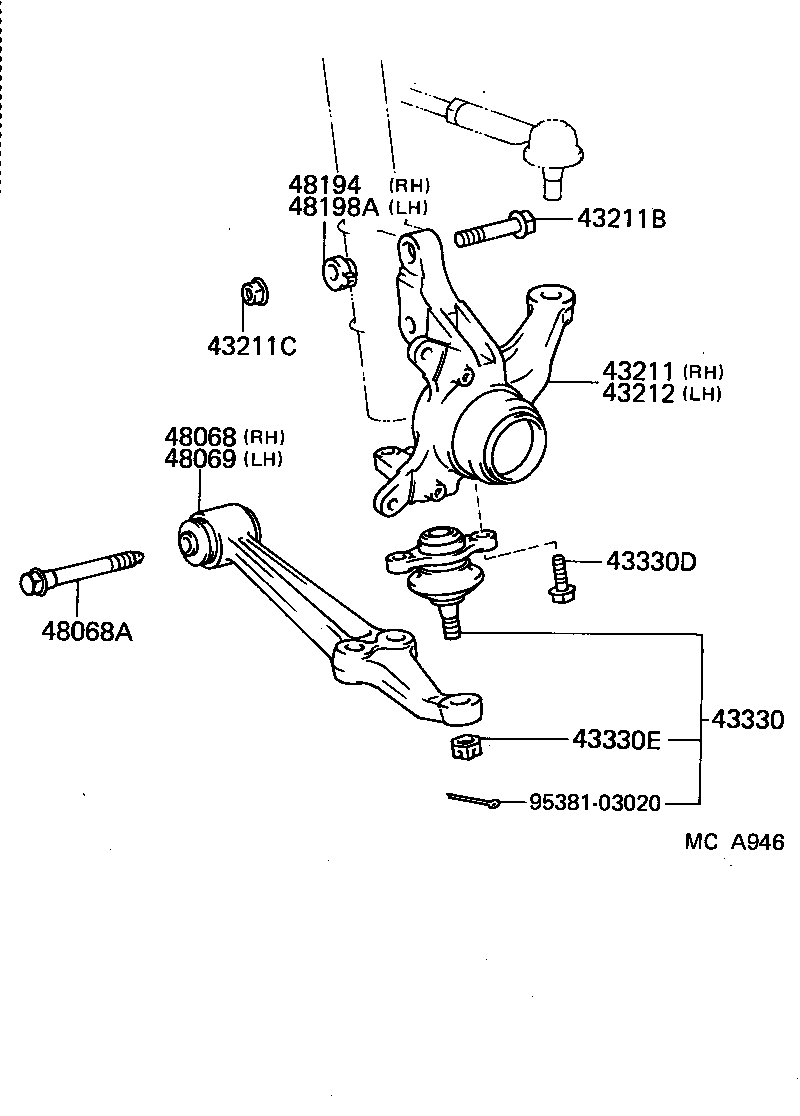

Click highlighted areas on diagram

diagram 43211 43211B 43211C 43212 43330 43330D 43330E 48068 48068A 48069 48194 48198A 9538103020
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-17020

AW1#

 1
43211-17010

AW1#

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-12042

AW1#

 2
90105-12042

AW1#

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-12025

AW1#

 4
43212 - KNUCKLE, STEERING, LH
43212-17020

AW1#

 1
43212-17010

AW1#

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-19025

AW1#

 2
43330-19025

AW1#

 2
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90105-10129

AW1#

 4
90105-10057

AW1#

 4
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
94146-71200

AW1#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-17010

AW1#

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90119-12083

AW1#

 2
90119-12083

AW1#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48068-17010

AW1#

 1
48194 - CAM, CAMBER ADJUST, RH
48194-16010

AW1#

 1
48194-16011

AW1#

 1
48198A - CAM, CAMBER ADJUST, LH
48198-16011

AW1#

 1
48198-16010

AW1#

 1
Common parts
95381-03020
