ZZW30-AKGQH (2000)

Toyota Mr-S

Production Aug 2000 - Aug 2002
Engine 1ZZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )5FS,6FS

Click highlighted areas on diagram

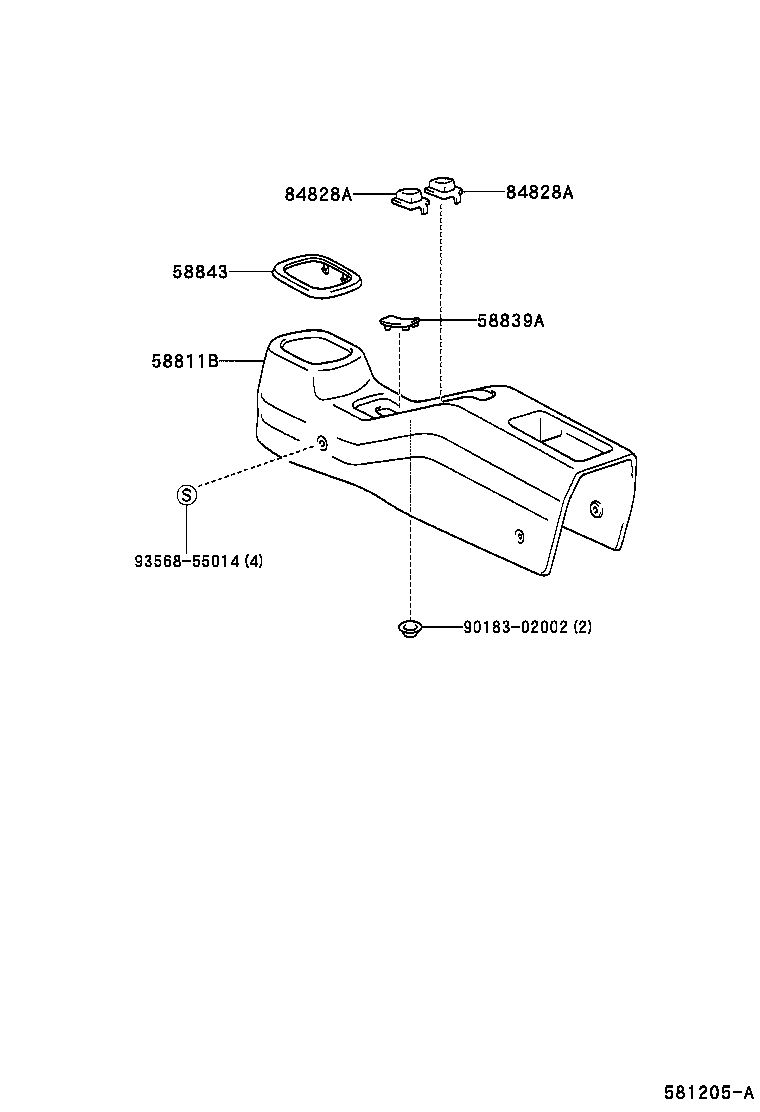

diagram 58811B 58839A 58843 84828A 84828A 9018302002 9356855014
Part # Description Qty Price
58811B - BOX, CONSOLE
58801-17140C0

ZZW30

BLACK,TRIM2#,3#,5#

 1
58801-17140C0

ZZW30

BLACK,TRIM2#,3#,4#,5#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-17010C0

ZZW30

BLACK,TRIM2#,3#,5#

 1
58839-17010C0

ZZW30

BLACK,TRIM2#,3#,4#,5#

 1
58843 - BEZEL, SHIFTING HOLE
58843-17020C0

ZZW30..5FS

BLACK,TRIM2#,3#,4#,5#

 1
84828A - COVER, POWER WINDOW SWITCH
84828-17010C0

ZZW30

BLACK,TRIM2#,3#,5#

 2
84828A - COVER, POWER WINDOW SWITCH
84828-17010C0

ZZW30

BLACK,TRIM2#,3#,5#

 2
Common parts
90183-02002
93568-55014
