JPD20-CEDSS (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

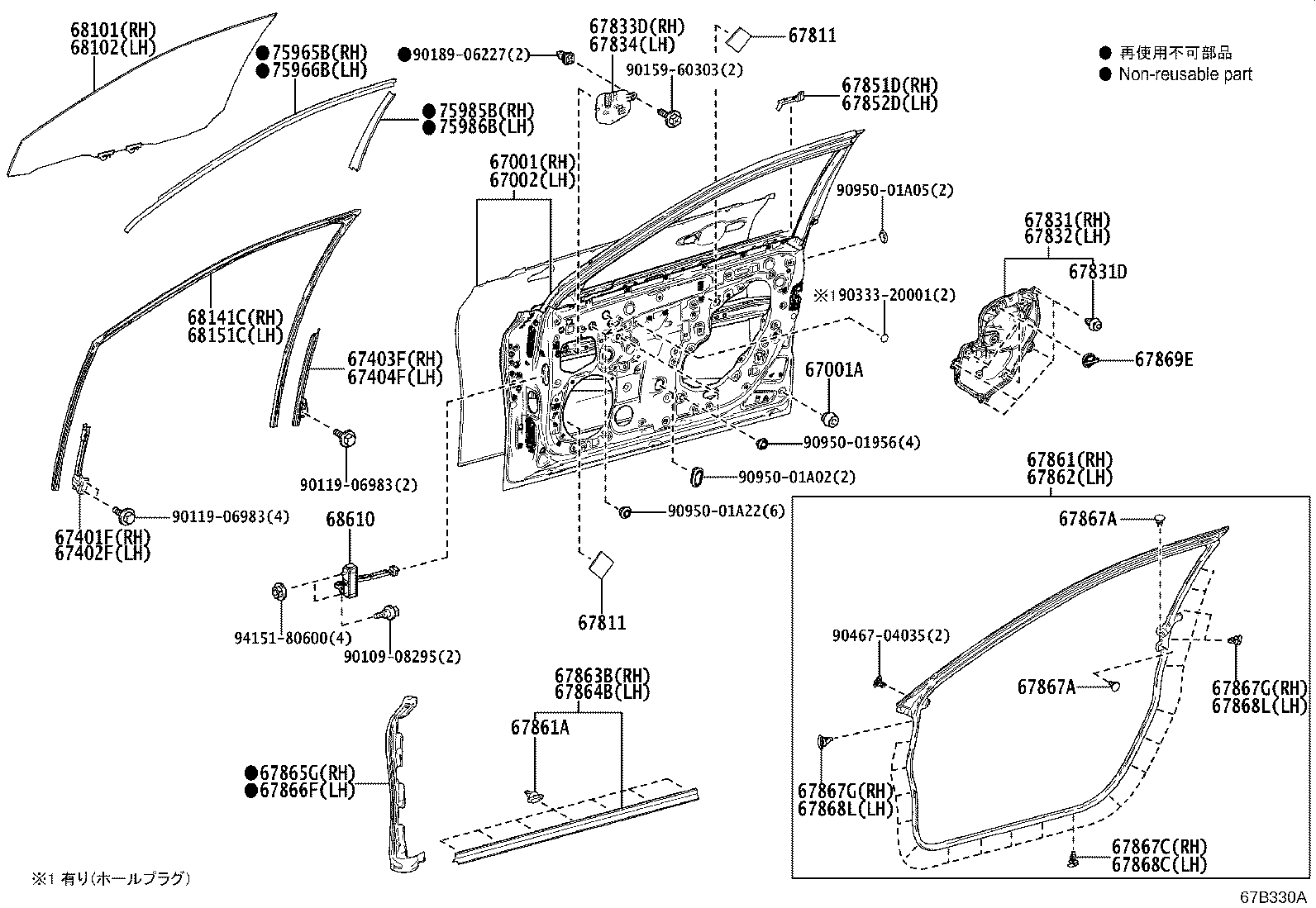

ILLUST NO. 1 OF 2(2011- )
Click highlighted areas on diagram
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-62060 |
JPD20 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
JPD20 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-62040 |
JPD20 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-62020 |
JPD20 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-62020 |
JPD20 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-62020 |
JPD20 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-62020 |
JPD20 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-30100 |
JPD20 |
4 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-30100 |
JPD20 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-62020 |
JPD20 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
JPD20 |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-62020 |
JPD20 |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-62010 |
JPD20 |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67834-62010 |
JPD20 |
1 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-62010 |
JPD20 |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-62010 |
JPD20 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-62020 |
JPD20 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
JPD20 |
14 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-62020 |
JPD20 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-62020 |
JPD20 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-62020 |
JPD20 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-62020 |
JPD20 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-62020 |
JPD20 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30030 |
JPD20 |
4 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30030 |
JPD20 |
4 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
JPD20 |
17 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
JPD20 |
3 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
JPD20 |
3 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
JPD20 |
17 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
JPD20 |
3 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
JPD20 |
3 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-47010 |
JPD20 |
6 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-62020 |
JPD20 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-62020 |
JPD20 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-62020 |
JPD20 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-62020 |
JPD20 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-62020 |
JPD20 |
2 | ||
| 75965B - STRIPE, FRONT DOOR NO.4 RH | ||||
| 75965-62020 |
JPD20 |
1 | ||
| 75966B - STRIPE, FRONT DOOR NO.4 LH | ||||
| 75966-62020 |
JPD20 |
1 | ||
| 75985B - STRIPE, FRONT DOOR, NO.3 RH | ||||
| 75985-62020 |
JPD20 |
1 | ||
| 75986B - STRIPE, FRONT DOOR, NO.3 LH | ||||
| 75986-62020 |
JPD20 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90333-20001 | ||||
| 90467-04035 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||
| 90950-01A22 | ||||
| 94151-80600 | ||||

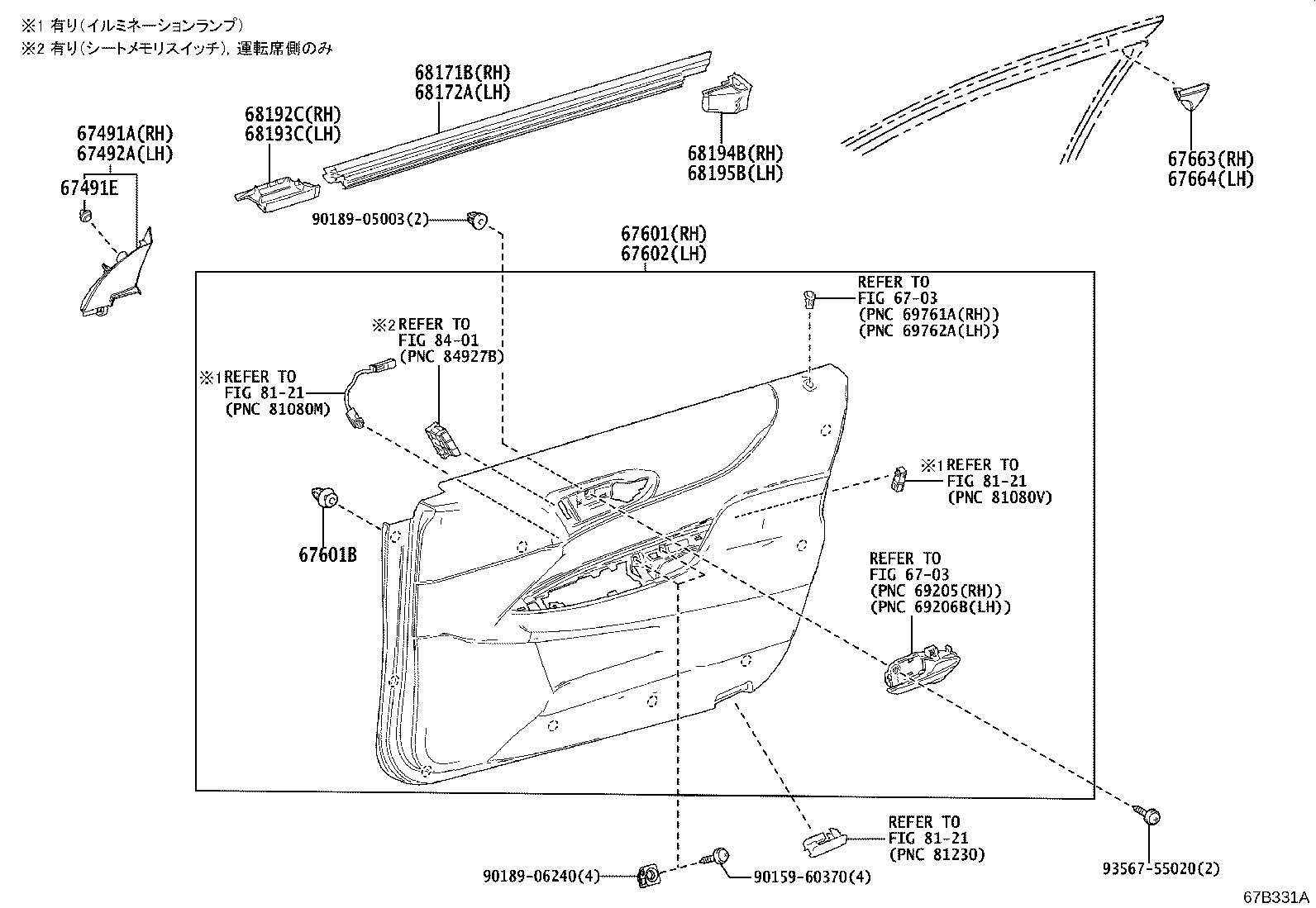

ILLUST NO. 2 OF 2(2011- )
Click highlighted areas on diagram
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-62010 |
JPD20 |
1 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-26240 |
JPD20 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-62010 |
JPD20 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-62060C7 |
JPD20..G “Executive Package”*(E),BROWN,TRIM0# |
1 | ||
| 67610-62060C5 |
JPD20..G “Executive Package”*(E),BLACK,TRIM2# |
1 | ||
| 67610-62040C3 |
JPD20..G BLACK,TRIM2# |
1 | ||
| 67610-62040C5 |
JPD20..G BROWN,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
JPD20 |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-62050C4 |
JPD20..G “Executive Package”*(E),BLACK,TRIM2# |
1 | ||
| 67620-62040C2 |
JPD20..G BLACK,TRIM2# |
1 | ||
| 67620-62040C3 |
JPD20..G BROWN,TRIM0# |
1 | ||
| 67620-62050C5 |
JPD20..G “Executive Package”*(E),BROWN,TRIM0# |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-62030 |
JPD20 |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-62030 |
JPD20 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-62020 |
JPD20 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-62020 |
JPD20 |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-62010 |
JPD20 |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68193-62010 |
JPD20 |
1 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-62010 |
JPD20 |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-62010 |
JPD20 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-05003 | ||||
| 90189-06240 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8121 | ||||
| 8401 | ||||
