JPD20-CEDSS (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

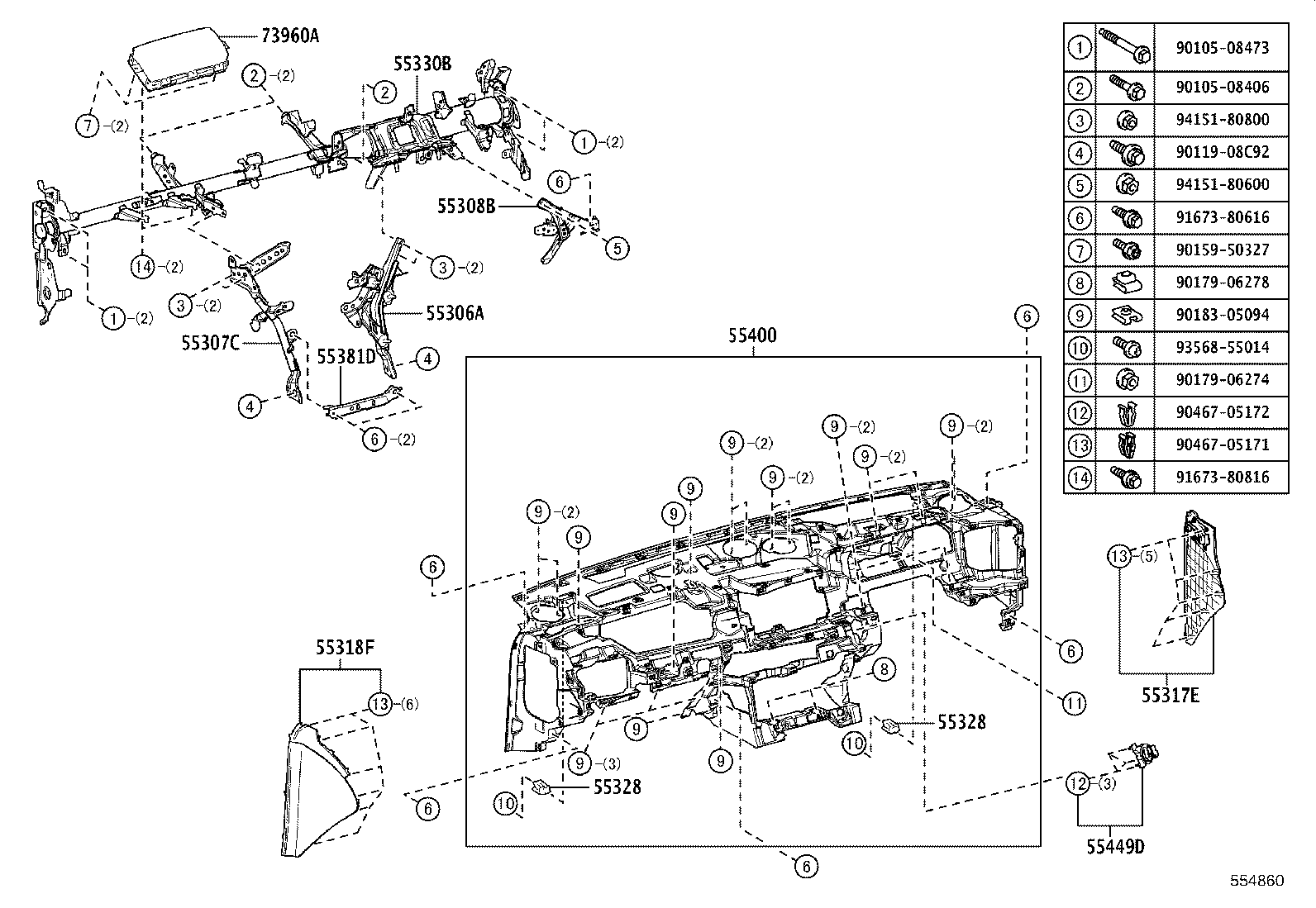

ILLUST NO. 1 OF 2(2011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-62030 |
JPD20 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-62030 |
JPD20 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-62010 |
JPD20 |
1 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-62070C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-62070C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
JPD20 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
JPD20 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-62030 |
JPD20 |
1 | ||
| 55381D - BRACKET, INSTRUMENT PANEL SHIFT MOUNTING, NO.1 | ||||
| 55381-62010 |
JPD20 |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-62020 |
JPD20 |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-62030 |
JPD20 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-62030 |
JPD20 |
1 | ||
| Common parts | ||||
| 90105-08406 | ||||
| 90105-08473 | ||||
| 90119-08C92 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

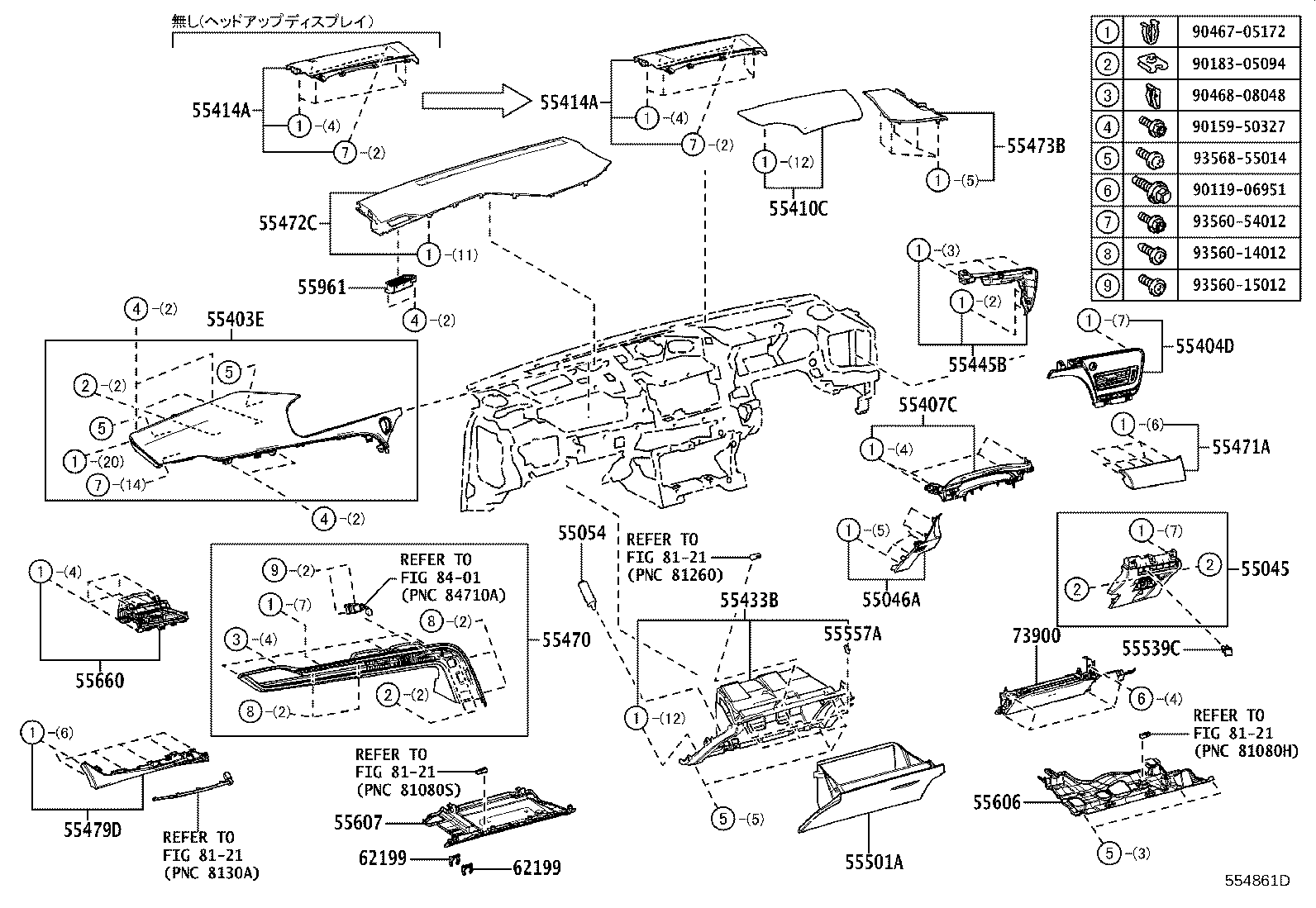

ILLUST NO. 2 OF 2(2011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-62030C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
JPD20 |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-62010C1 |
JPD20 BLACK,TRIM2# |
1 | ||
| 55403-62010A1 |
JPD20 WHITE,TRIM0# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-62010 |
JPD20 |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-62010 |
JPD20 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-62020C0 |
JPD20..G BLACK,TRIM0#,2# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-62020C0 |
JPD20..G BLACK,TRIM0#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-62050C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-62010 |
JPD20 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-62010 |
JPD20 |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-62050C1 |
JPD20 BLACK,TRIM2# |
1 | ||
| 55471-62070A0 |
JPD20 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−合成皮革(ｻﾃﾝﾒｯｷ & ﾎﾜｲﾄ),WHITE,BLACK,TRIM0# |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-62050C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-62030C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
JPD20..G BLACK |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
JPD20 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-62030 |
JPD20 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-62030 |
JPD20 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-62050 |
JPD20 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-62030 |
JPD20 |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 62199-48010 |
JPD20 |
2 | ||
| 62199 - HOLDER, FUSEE | ||||
| 62199-48010 |
JPD20 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-62030C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90183-05094 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
