JPD20-CEDSS (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2011- )

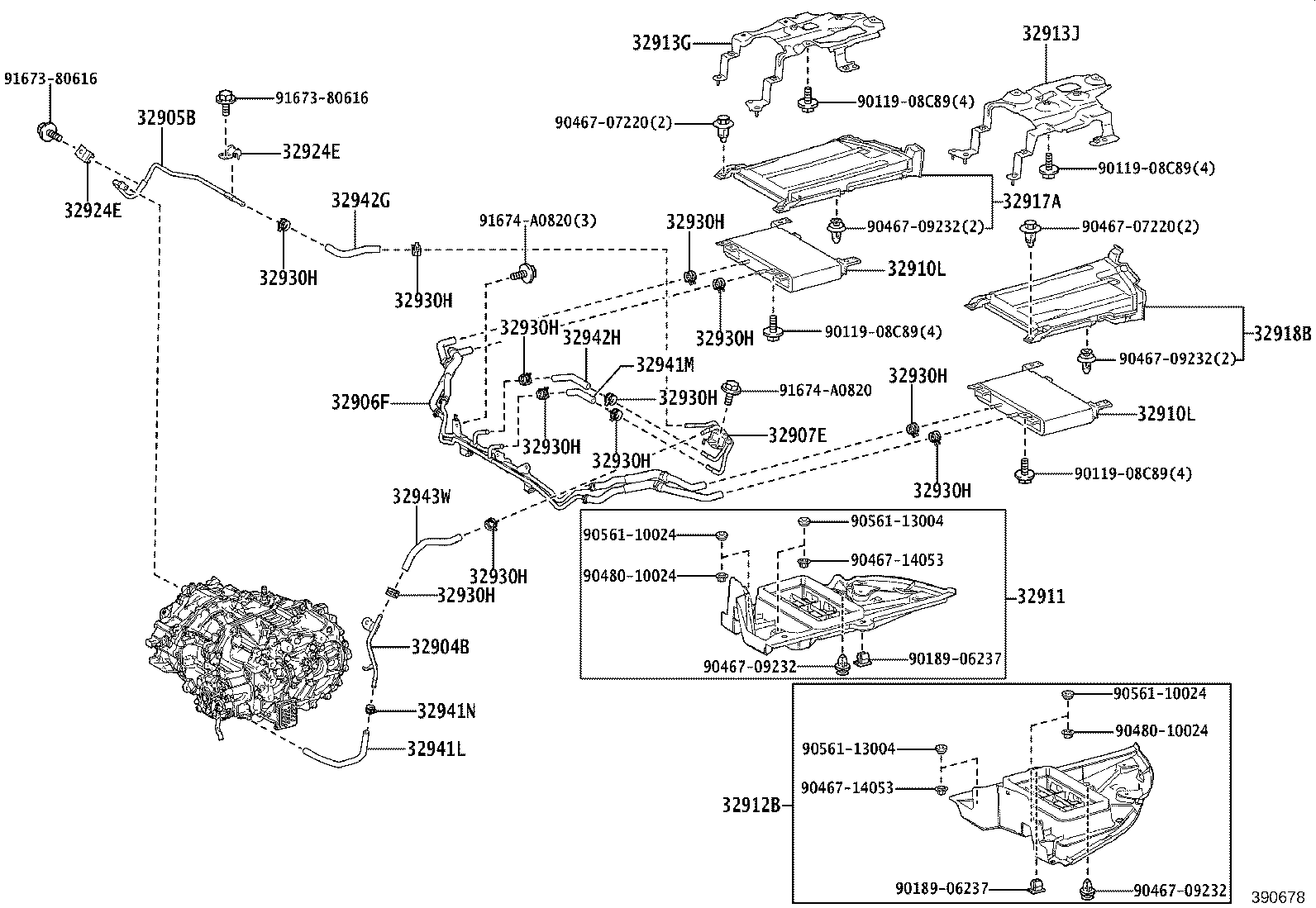

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32904B - TUBE SUB-ASSY, OIL COOLER INLET | ||||
| 32904-62010 |
JPD20 |
1 | ||
| 32905B - TUBE SUB-ASSY, OIL COOLER OUTLET | ||||
| 32905-62020 |
JPD20 |
1 | ||
| 32906F - TUBE SUB-ASSY, OIL COOLER | ||||
| 32960-62050 |
JPD20 |
1 | ||
| 32907E - TUBE SUB-ASSY, OIL COOLER W/O HOSE | ||||
| 32906-62030 |
JPD20 |
1 | ||
| 32910L - COOLER ASSY, OIL | ||||
| 32910-62020 |
JPD20 |
2 | ||
| 32910L - COOLER ASSY, OIL | ||||
| 32910-62020 |
JPD20 |
2 | ||
| 32911 - COVER, TRANSMISSION OIL COOLER UNDER, RH | ||||
| 32911-62010 |
JPD20 |
1 | ||
| 32912B - COVER, TRANSMISSION OIL COOLER UNDER, LH | ||||
| 32912-62010 |
JPD20 |
1 | ||
| 32913G - BRACKET, TRANSMISSION OIL COOLER | ||||
| 32913-62020 |
JPD20 |
1 | ||
| 32913J - BRACKET, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32914-62010 |
JPD20 |
1 | ||
| 32917A - DUCT, TRANSMISSION OIL COOLER AIR | ||||
| 32917-62010 |
JPD20 |
1 | ||
| 32918B - DUCT, TRANSMISSION OIL COOLER AIR, LH | ||||
| 32918-62010 |
JPD20 |
1 | ||
| 32924E - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-48010 |
JPD20 |
2 | ||
| 32924E - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-48010 |
JPD20 |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
12 | ||
| 32941L - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-62010 |
JPD20 |
1 | ||
| 32941M - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32941-62040 |
JPD20 |
1 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
JPD20 |
1 | ||
| 32942G - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-62020 |
JPD20 |
1 | ||
| 32942H - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 32942-62030 |
JPD20 |
1 | ||
| 32943W - HOSE, TRANSMISSION OIL COOLER | ||||
| 32941-62030 |
JPD20 |
1 | ||
| Common parts | ||||
| 90119-08C89 | ||||
| 90189-06237 | ||||
| 90467-07220 | ||||
| 90467-09232 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-10024 | ||||
| 90561-13004 | ||||
| 91673-80616 | ||||
| 91674-A0820 | ||||
