JPD20-CEDHS (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

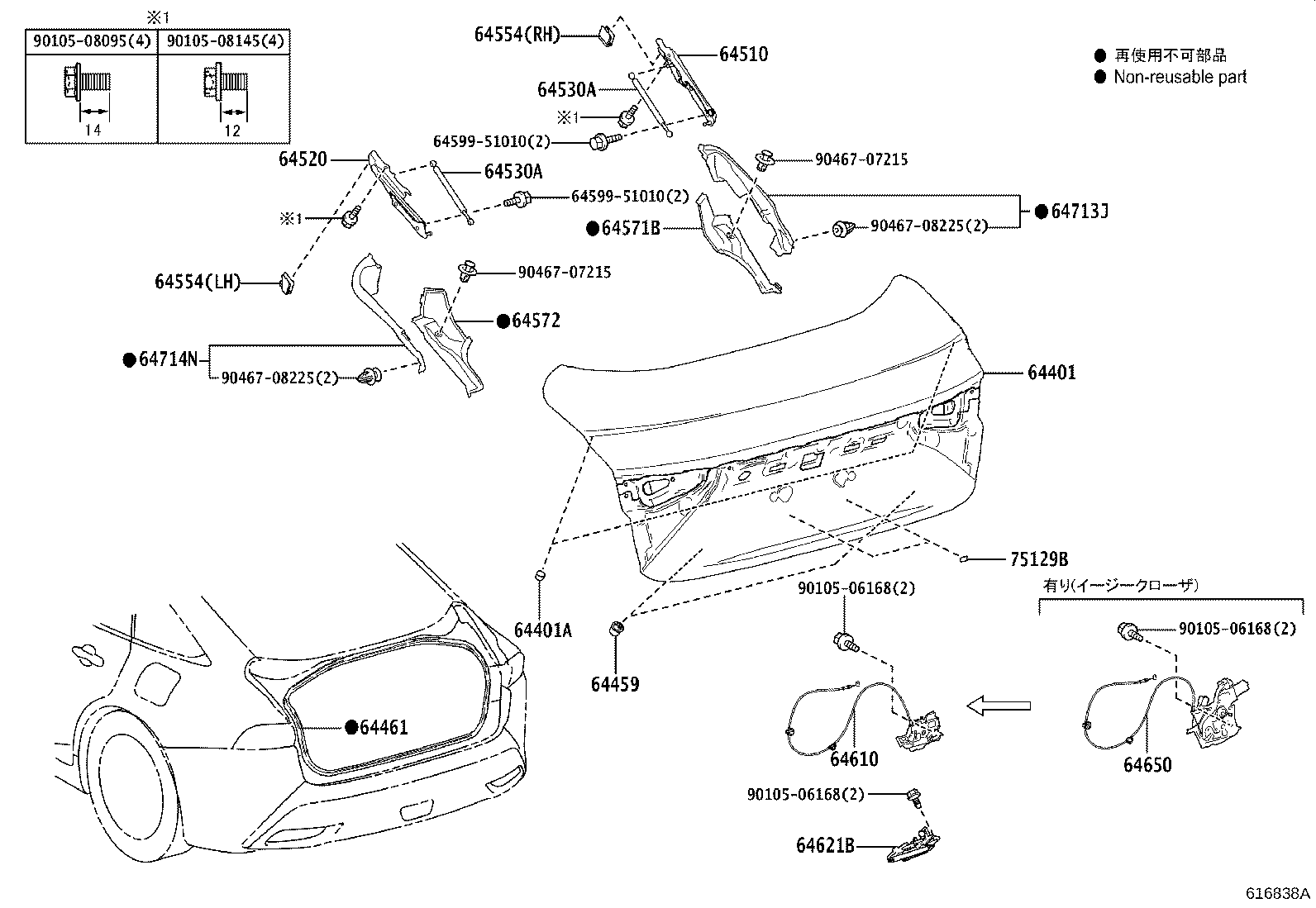

Click highlighted areas on diagram

diagram 64401 64401A 64459 64461 64510 64520 64530A 64530A 64554 64554 64571B 64572 6459951010 6459951010 64610 64621B 64650 64713J 64714N 75129B 9010506168 9010506168 9010506168 9010508095 9010508145 9046707215 9046707215 9046708225 9046708225
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-62050

JPD20

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
53384-60050

JPD20

 2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09116

JPD20

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-62040

JPD20

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-62040

JPD20

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-62040

JPD20

 1
64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64530-0W290

JPD20

DOP用

 2
64530-0W270

JPD20

 2
64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64530-0W290

JPD20

DOP用

 2
64530-0W270

JPD20

 2
64554 - STOPPER, LUGGAGE DOOR BALANCER
64554-30051

JPD20

左側

 1
64554-30041

JPD20

右側

 1
64554 - STOPPER, LUGGAGE DOOR BALANCER
64554-30051

JPD20

左側

 1
64554-30041

JPD20

右側

 1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-62020

JPD20

 1
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572-62020

JPD20

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64620-30150

JPD20

 1
64650 - CLOSER ASSY, LUGGAGE DOOR
64650-62010

JPD20..Z

 1
64713J - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64712-62010

JPD20

 1
64714N - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
64713-62040

JPD20

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-30010

JPD20

 2
Common parts
64599-51010
90105-06168
90105-08095
90105-08145
90467-07215
90467-08225
