JPD20-CEDHS (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2011- )

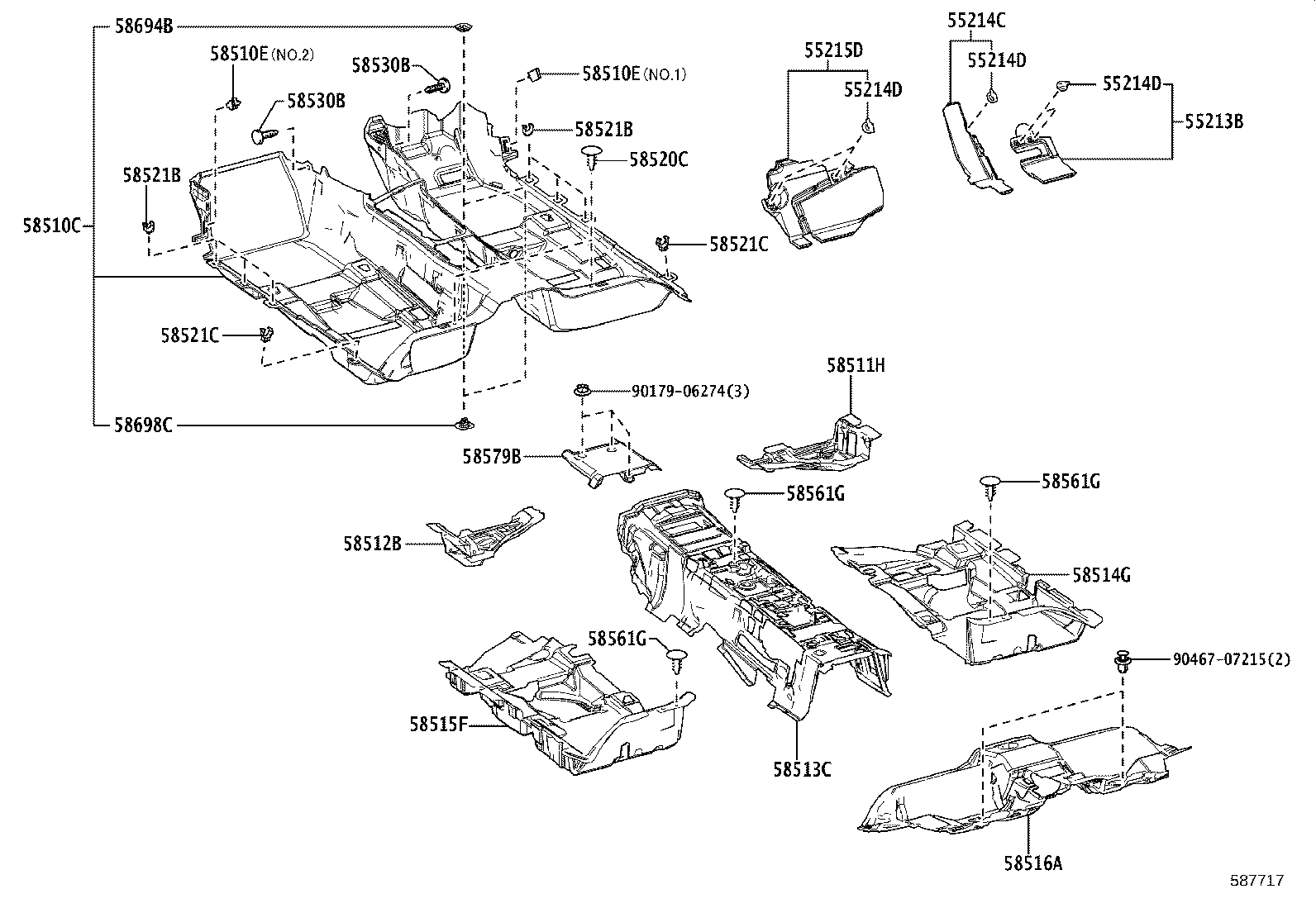

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213B - PAD, DASH PANEL INSULATOR, NO.1 | ||||
| 55213-50130 |
JPD20 |
1 | ||
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-50120 |
JPD20 |
1 | ||
| 55214D - CLIP(FOR DASH PANEL INSULATOR PAD) | ||||
| 90467-10217 |
JPD20 |
5 | ||
| 55214D - CLIP(FOR DASH PANEL INSULATOR PAD) | ||||
| 90467-10217 |
JPD20 |
5 | ||
| 55214D - CLIP(FOR DASH PANEL INSULATOR PAD) | ||||
| 90467-10217 |
JPD20 |
5 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-50110 |
JPD20 |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-62030C2 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 58510E - RETAINER, FLOOR CARPET | ||||
| 62135-62010 |
JPD20 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 62135-62020 |
JPD20 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 58510E - RETAINER, FLOOR CARPET | ||||
| 62135-62010 |
JPD20 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 62135-62020 |
JPD20 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 58511H - MAT, FLOOR, FRONT RH | ||||
| 58511-62020 |
JPD20 |
1 | ||
| 58512B - MAT, FLOOR, FRONT LH | ||||
| 58512-62020 |
JPD20 |
1 | ||
| 58513C - MAT, FLOOR, FRONT CENTER | ||||
| 58513-62020 |
JPD20 |
1 | ||
| 58514G - MAT, FLOOR, REAR RH | ||||
| 58514-62010 |
JPD20 |
1 | ||
| 58515F - MAT, FLOOR, REAR LH | ||||
| 58515-62010 |
JPD20 |
1 | ||
| 58516A - MAT, FLOOR, NO.6 | ||||
| 58516-62010 |
JPD20 |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164B8 |
JPD20 LT.GRAY |
2 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-50050 |
JPD20 |
6 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-50050 |
JPD20 |
6 | ||
| 58521C - HOOK, FLOOR CARPET NO.2 | ||||
| 58521-62010 |
JPD20 |
2 | ||
| 58521C - HOOK, FLOOR CARPET NO.2 | ||||
| 58521-62010 |
JPD20 |
2 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
JPD20 BLACK |
2 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
JPD20 BLACK |
2 | ||
| 58561G - CLIP(FOR FRONT FLOOR SILENCER) | ||||
| 90467-07042C0 |
JPD20 BLACK |
3 | ||
| 58561G - CLIP(FOR FRONT FLOOR SILENCER) | ||||
| 90467-07042C0 |
JPD20 BLACK |
3 | ||
| 58561G - CLIP(FOR FRONT FLOOR SILENCER) | ||||
| 90467-07042C0 |
JPD20 BLACK |
3 | ||
| 58579B - PAD, REAR FLOOR | ||||
| 58579-62010 |
JPD20 |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-33010 |
JPD20 |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-33010 |
JPD20 |
2 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-07215 | ||||
