JPD20-CEDHS (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

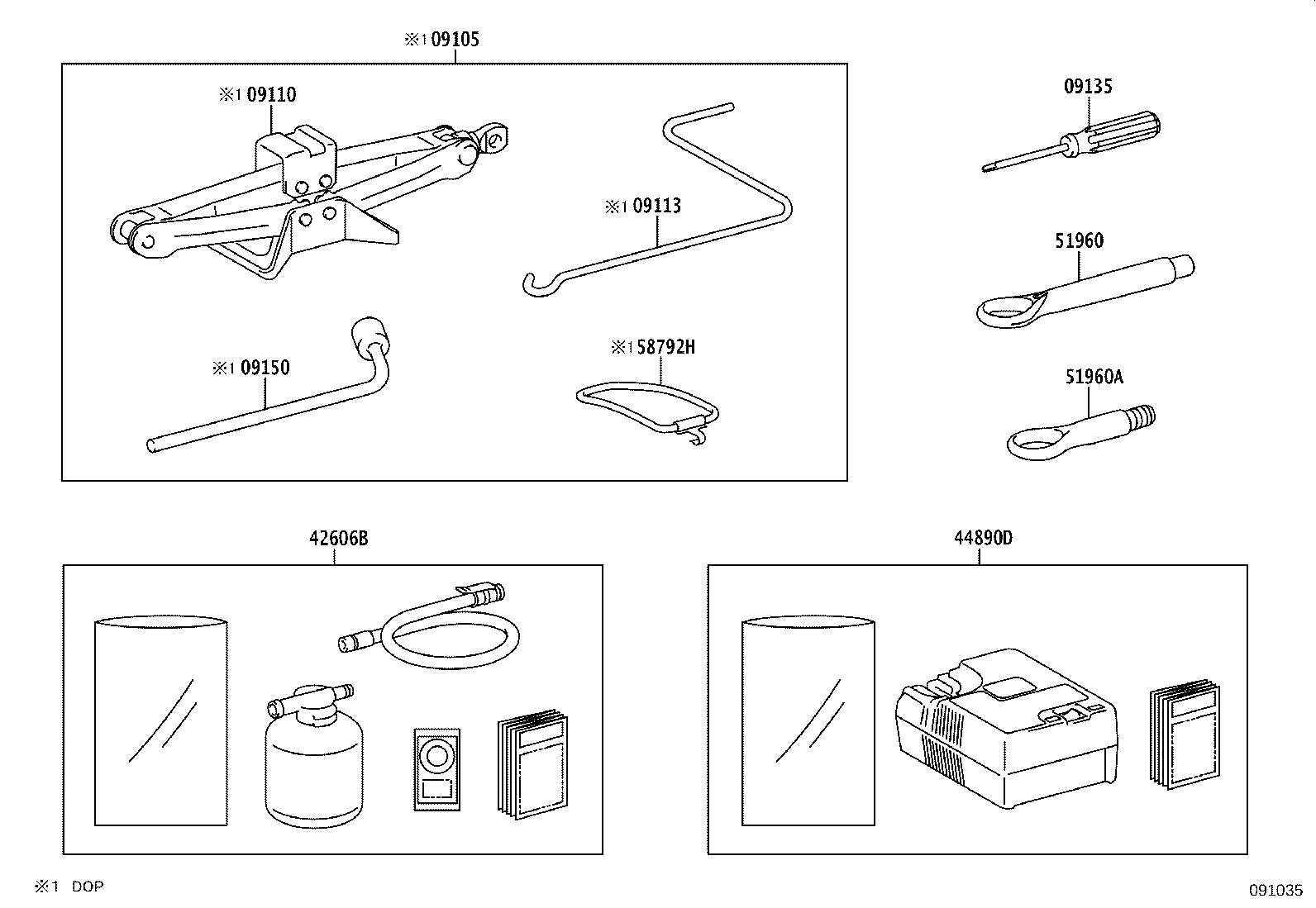

Click highlighted areas on diagram

diagram 09105 09110 09113 09135 09150 42606B 44890D 51960 51960A 58792H
Part # Description Qty Price
09105 - BOX SET, JACK
09105-62010

JPD20

ｼﾞｬｯｷ−有り(DOP)

 1
09110 - JACK ASSY
09111-50140

JPD20

ｼﾞｬｯｷ−有り(DOP)

 1
09113 - HANDLE, JACK
09113-30060

JPD20

ｼﾞｬｯｷ−有り(DOP)

 1
09135 - DRIVER, SCREW
99915-10700

JPD20

 1
09150 - WRENCH, HUB NUT BOX
09150-50040

JPD20

ｼﾞｬｯｷ−有り(DOP)

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-30011

JPD20

 1
44890D - COMPRESSOR ASSY, AIR
44890-30030

JPD20

 1
44890-30030

JPD20

 1
51960 - HOOK ASSY, FRONT
51961-42060

JPD20

 1
51960A - HOOK ASSY, REAR
51961-11020

JPD20

 2
58792H - SUPPORT, JACK CARRIER
58792-48010

JPD20

ｼﾞｬｯｷ−有り(DOP)

 1
