JPD10-CEDSS (2014)
Toyota Mirai
Production
Dec 2014
-
May 2020
Engine
4JM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1412- )

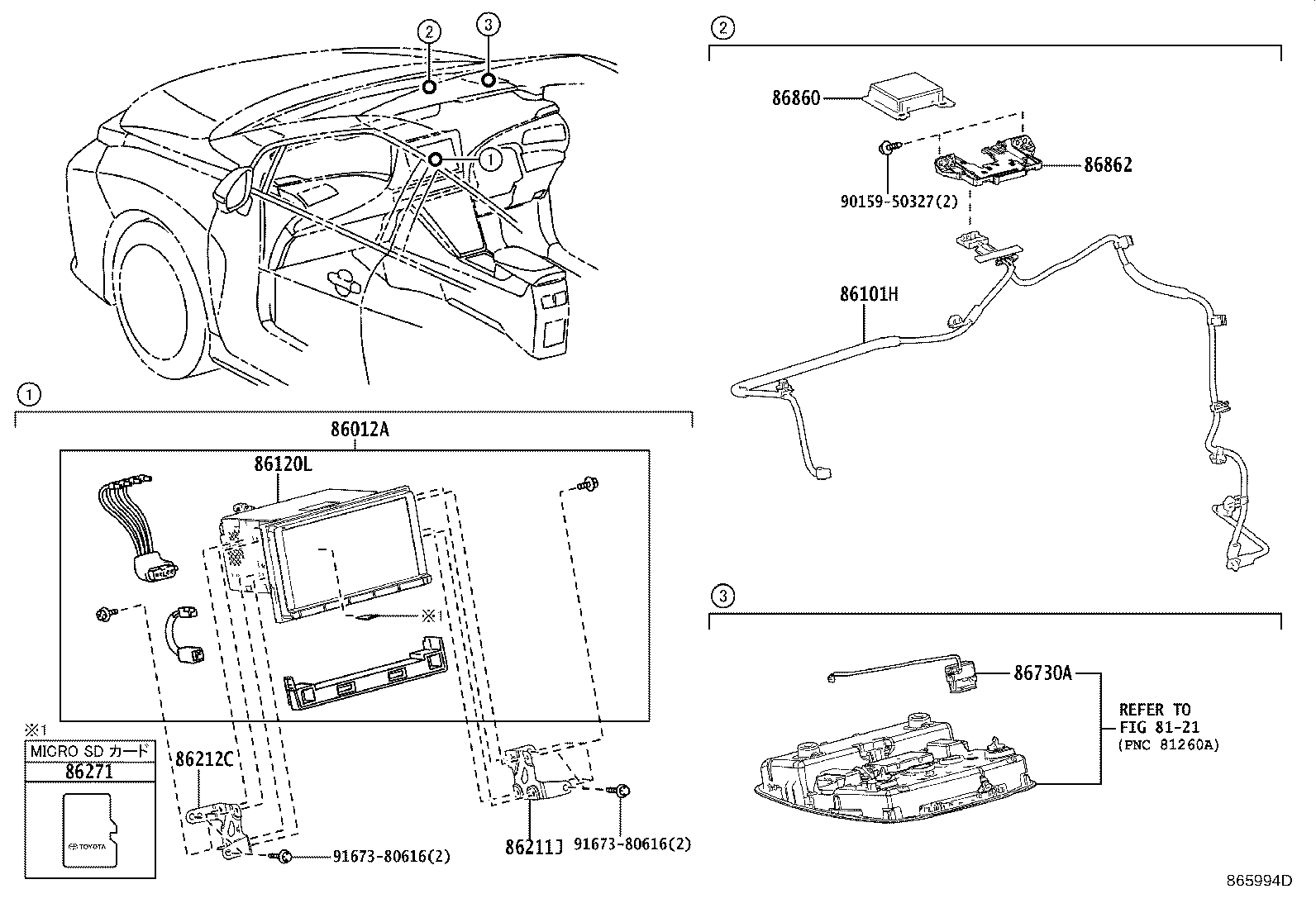

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86012A - PARTS SET, RADIO SETTING | ||||
| 86011-62010 |
JPD10 ***,ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ |
1 | ||
| 86101H - CORD SUB-ASSY, ANTENNA | ||||
| 86101-62170 |
JPD10 |
1 | ||
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86100-62030 |
JPD10 FUJITSU TEN,ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-62020 |
JPD10 |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-62020 |
JPD10 |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-62012 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62016 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62014 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62011 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62017 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62013 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62015 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62020 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ |
1 | ||
| 86271-62018 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62010 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86271-62019 |
JPD10 ｵｰﾃﾞｨｵ−AVN & 6ｽﾋﾟｰｶ,MICRO SDｶｰﾄﾞ |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-62030 |
JPD10 |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86880-78010 |
JPD10 |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-62010 |
JPD10 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8121 | ||||
