JPD10-CEDSS (2014)

Toyota Mirai

Production Dec 2014 - May 2020
Engine 4JM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1412- )

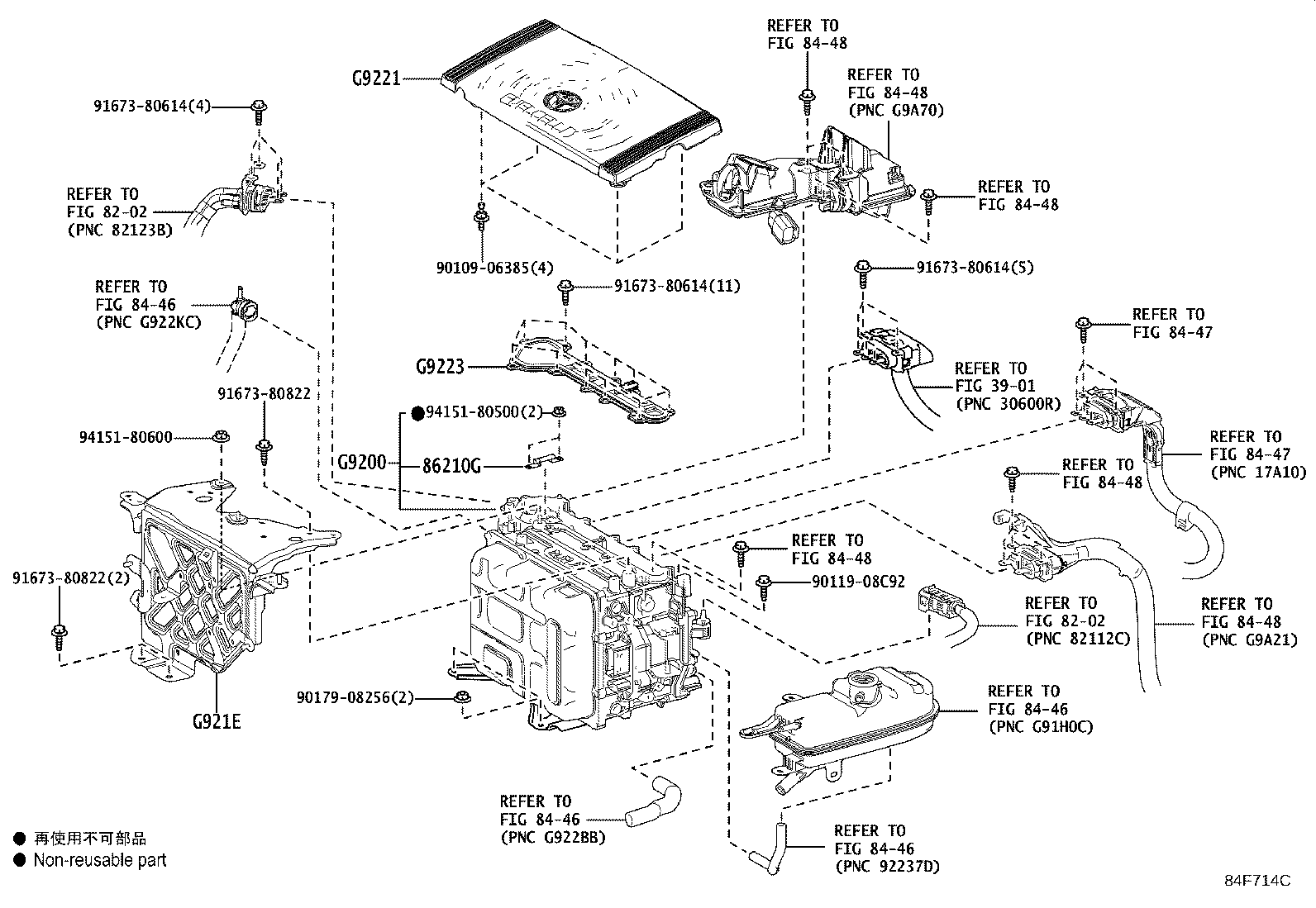

Click highlighted areas on diagram

diagram 3901 8202 8202 8446 8446 8446 8446 8447 8447 8448 8448 8448 8448 8448 8448 86210G 9010906385 9011908C92 9017908256 9167380614 9167380614 9167380614 9167380822 9167380822 9415180500 9415180600 G9200 G921E G9221 G9223
Part # Description Qty Price
86210G - FUSE, HIGH VOLTAGE
90982-11050

JPD10

 1
G9200 - INVERTER ASSY, W/CONVERTER
G92A0-62010

JPD10

 1
G921E - PROTECTOR, INVERTER
G921E-62021

JPD10

 1
G9221 - COVER, INVERTER
G9140-62010

JPD10

 1
G9223 - COVER, INVERTER TERMINAL
G9223-62030

JPD10

 1
Common parts
90109-06385
90119-08C92
90179-08256
91673-80614
91673-80822
94151-80500
94151-80600
Linked diagrams
3901
8202
8446
8447
8448
