JPD10-CEDSS (2014)
Toyota Mirai
Production
Dec 2014
-
May 2020
Engine
4JM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1412- )

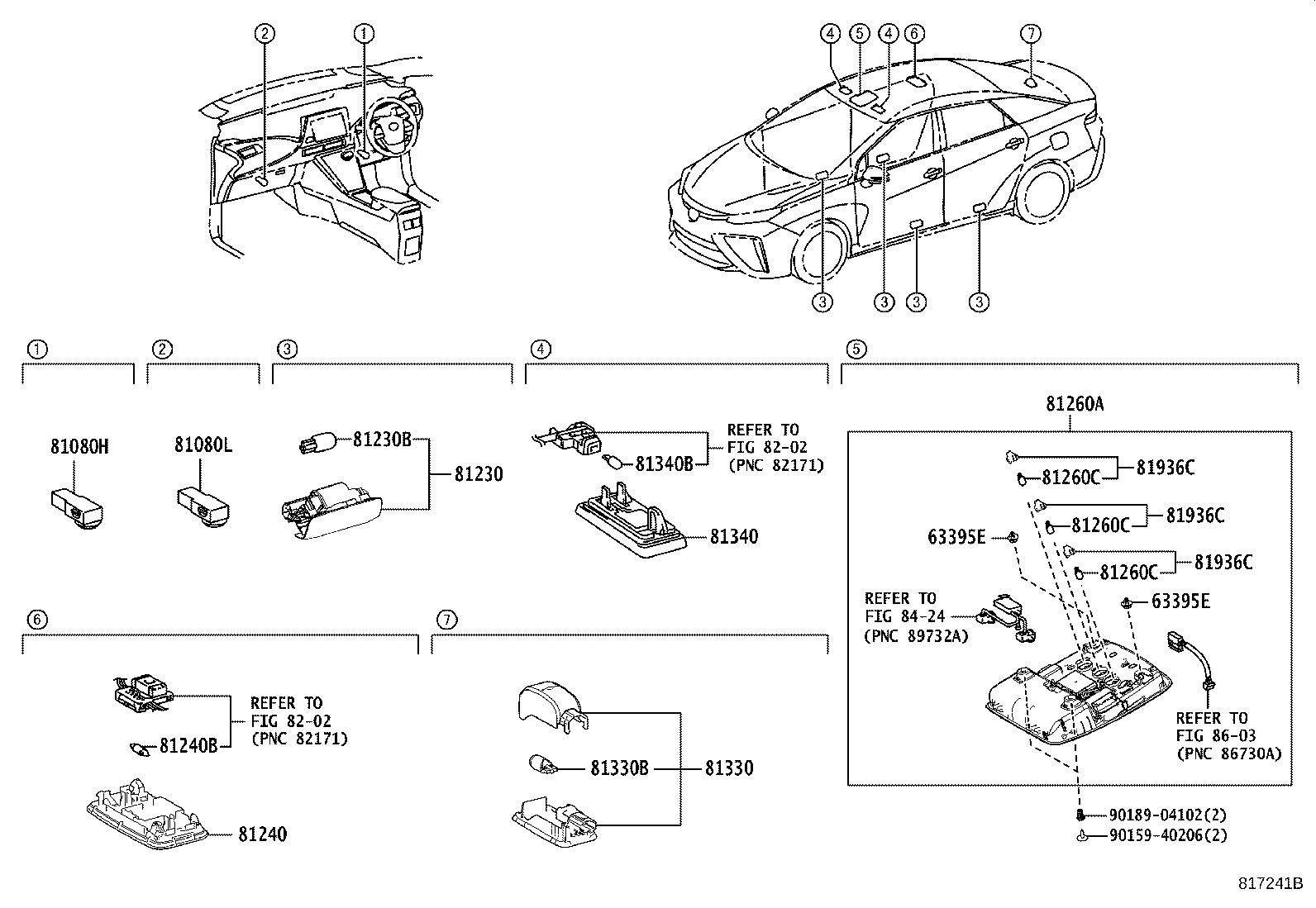

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09240 |
JPD10 |
2 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09240 |
JPD10 |
2 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-62010 |
JPD10 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-62010 |
JPD10 |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30200 |
JPD10 |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
JPD10 12V 5W |
4 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-60060A8 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
JPD10 12V 8W |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-62050A0 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
JPD10 12V 8W |
3 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
JPD10 12V 8W |
3 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
JPD10 12V 8W |
3 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-30210 |
JPD10 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
JPD10 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
JPD10 |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
JPD10 12V 8W |
2 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
JPD10 |
3 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
JPD10 |
3 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
JPD10 |
3 | ||
| Common parts | ||||
| 90159-40206 | ||||
| 90189-04102 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8424 | ||||
| 8603 | ||||
