JPD10-CEDSS (2014)

Toyota Mirai

Production Dec 2014 - May 2020
Engine 4JM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1412- )

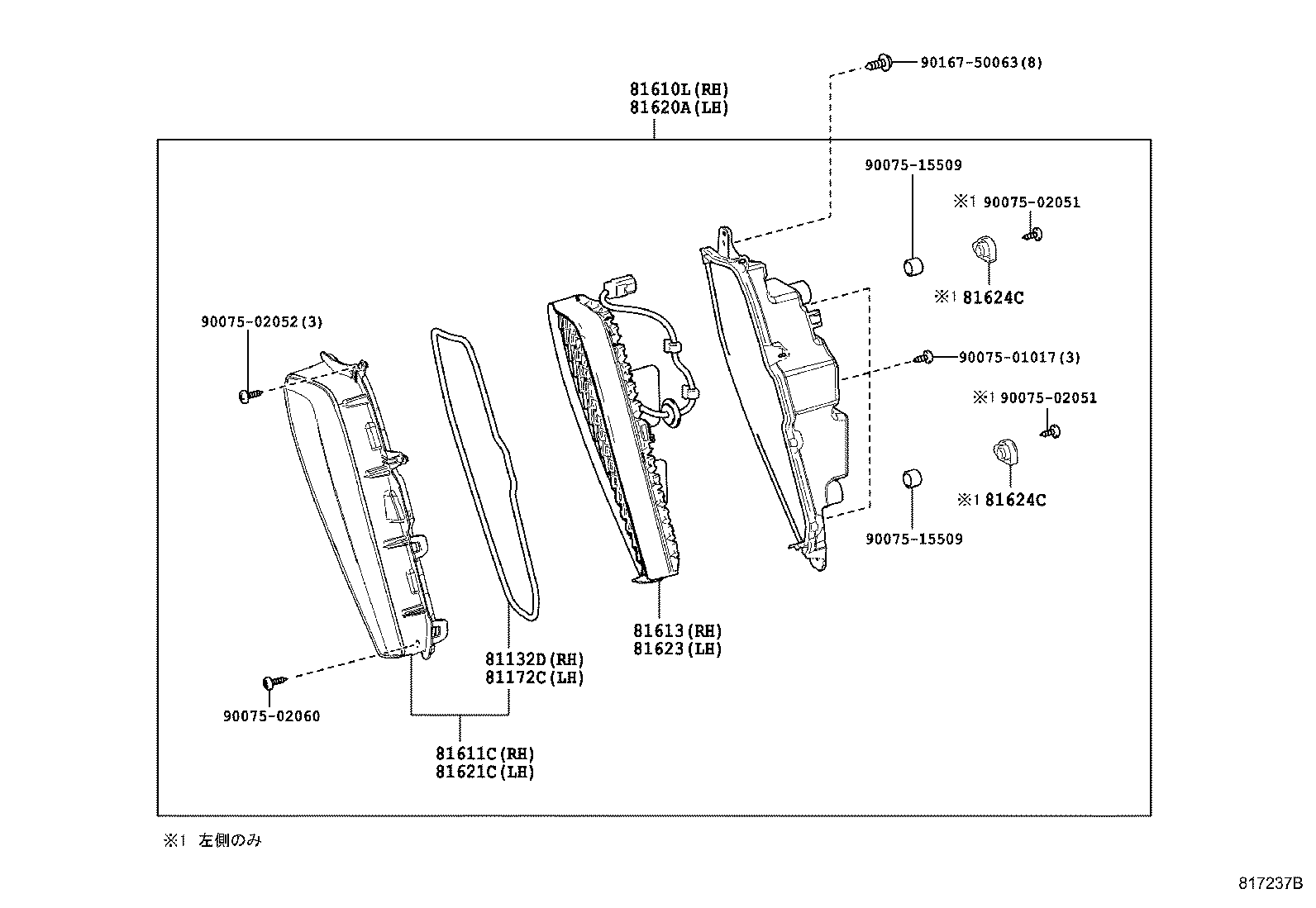

Click highlighted areas on diagram

diagram 81132D 81172C 81610L 81611C 81613 81620A 81621C 81623 81624C 81624C 9007501017 9007502051 9007502051 9007502052 9007502060 9007515509 9007515509 9016750063
Part # Description Qty Price
81132D - GASKET, CLEARANCE LAMP LENS, RH
81132-30E40

JPD10

 1
81172C - GASKET, CLEARANCE LAMP LENS, LH
81132-30E40

JPD10

 1
81610L - LAMP ASSY, CLEARANCE, RH
81610-62010

JPD10

 1
81611C - LENS, CLEARANCE LAMP, RH
81611-62010

JPD10

 1
81613 - UNIT ASSY, CLEARANCE LAMP LED, RH
81613-62010

JPD10

 1
81620A - LAMP ASSY, CLEARANCE, LH
81620-62010

JPD10

 1
81621C - LENS, CLEARANCE LAMP, LH
81621-62010

JPD10

 1
81623 - UNIT ASSY, CLEARANCE LAMP LED, LH
81623-62010

JPD10

 1
81624C - PROTECTOR, CLEARANCE LAMP, LH
81624-62010

JPD10

 2
81624C - PROTECTOR, CLEARANCE LAMP, LH
81624-62010

JPD10

 2
Common parts
90075-01017
90075-02051
90075-02052
90075-02060
90075-15509
90167-50063
