JPD10-CEDSS (2014)
Toyota Mirai
Production
Dec 2014
-
May 2020
Engine
4JM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

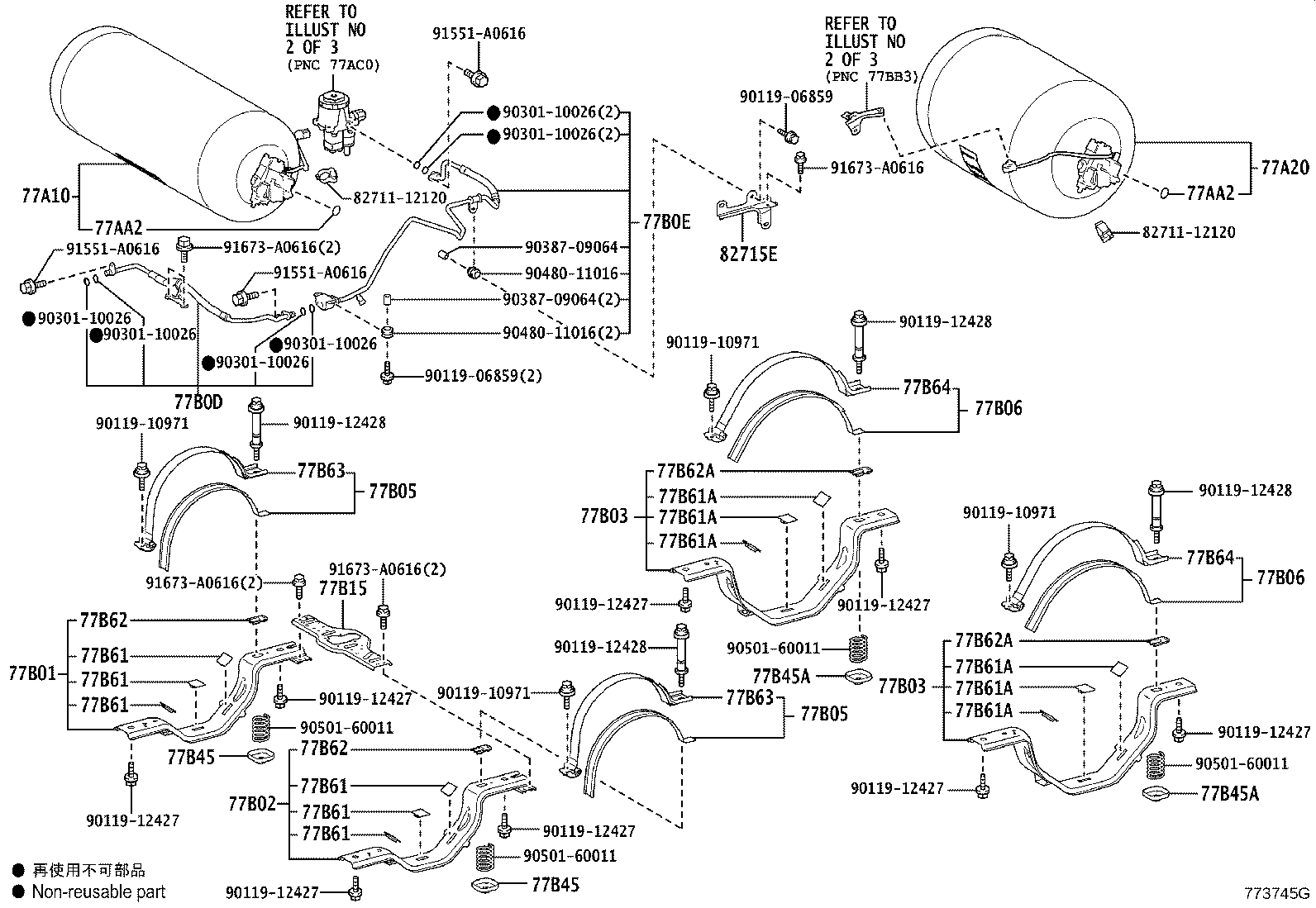

ILLUST NO. 1 OF 3(1412- )
Click highlighted areas on diagram
ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77A10 - TANK ASSY, HYDROGEN, NO.1 | ||||
| 77A10-62060 |
JPD10 |
1 | ||
| 77A20 - TANK ASSY, HYDROGEN, NO.2 | ||||
| 77A20-62060 |
JPD10 |
1 | ||
| 77AA2 - COVER, HYDROGEN TANK VALVE | ||||
| 77AA2-62010 |
JPD10 |
2 | ||
| 77AA2 - COVER, HYDROGEN TANK VALVE | ||||
| 77AA2-62010 |
JPD10 |
2 | ||
| 77B01 - FRAME SUB-ASSY, HYDROGEN TANK, FRONT RH | ||||
| 77B01-62010 |
JPD10 |
1 | ||
| 77B02 - FRAME SUB-ASSY, HYDROGEN TANK, FRONT LH | ||||
| 77B02-62010 |
JPD10 |
1 | ||
| 77B02-62011 |
JPD10 |
1 | ||
| 77B03 - FRAME SUB-ASSY, HYDROGEN TANK, REAR | ||||
| 77B03-62010 |
JPD10 |
2 | ||
| 77B03 - FRAME SUB-ASSY, HYDROGEN TANK, REAR | ||||
| 77B03-62010 |
JPD10 |
2 | ||
| 77B05 - BAND SUB-ASSY, HYDROGEN TANK, FRONT | ||||
| 77B05-62010 |
JPD10 |
2 | ||
| 77B05 - BAND SUB-ASSY, HYDROGEN TANK, FRONT | ||||
| 77B05-62010 |
JPD10 |
2 | ||
| 77B06 - BAND SUB-ASSY, HYDROGEN TANK, REAR | ||||
| 77B06-62010 |
JPD10 |
2 | ||
| 77B06 - BAND SUB-ASSY, HYDROGEN TANK, REAR | ||||
| 77B06-62010 |
JPD10 |
2 | ||
| 77B0D - TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.1 | ||||
| 77B0D-62010 |
JPD10 |
1 | ||
| 77B0E - TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.2 | ||||
| 77B0E-62010 |
JPD10 |
1 | ||
| 77B15 - FRAME, HYDROGEN TANK, FRONT CENTER | ||||
| 77B15-62010 |
JPD10 |
1 | ||
| 77B45 - CUP, HYDROGEN TANK SPRING BOLT, FRONT | ||||
| 77B45-62010 |
JPD10 |
2 | ||
| 77B45 - CUP, HYDROGEN TANK SPRING BOLT, FRONT | ||||
| 77B45-62010 |
JPD10 |
2 | ||
| 77B45A - CUP, HYDROGEN TANK SPRING BOLT, REAR | ||||
| 77B45-62010 |
JPD10 |
2 | ||
| 77B45A - CUP, HYDROGEN TANK SPRING BOLT, REAR | ||||
| 77B45-62010 |
JPD10 |
2 | ||
| 77B61 - SEAT, HYDROGEN TANK FRAME, FRONT | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61 - SEAT, HYDROGEN TANK FRAME, FRONT | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61 - SEAT, HYDROGEN TANK FRAME, FRONT | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61 - SEAT, HYDROGEN TANK FRAME, FRONT | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61 - SEAT, HYDROGEN TANK FRAME, FRONT | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61 - SEAT, HYDROGEN TANK FRAME, FRONT | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61A - SEAT, HYDROGEN TANK FRAME, REAR | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61A - SEAT, HYDROGEN TANK FRAME, REAR | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61A - SEAT, HYDROGEN TANK FRAME, REAR | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61A - SEAT, HYDROGEN TANK FRAME, REAR | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61A - SEAT, HYDROGEN TANK FRAME, REAR | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B61A - SEAT, HYDROGEN TANK FRAME, REAR | ||||
| 77B61-62010 |
JPD10 |
6 | ||
| 77B62 - CUSHION, HYDROGEN TANK FRAME SPRING BLOT, FRONT | ||||
| 77B62-62010 |
JPD10 |
2 | ||
| 77B62 - CUSHION, HYDROGEN TANK FRAME SPRING BLOT, FRONT | ||||
| 77B62-62010 |
JPD10 |
2 | ||
| 77B62A - CUSHION, HYDROGEN TANK FRAME SPRING BLOT, REAR | ||||
| 77B62-62010 |
JPD10 |
2 | ||
| 77B62A - CUSHION, HYDROGEN TANK FRAME SPRING BLOT, REAR | ||||
| 77B62-62010 |
JPD10 |
2 | ||
| 77B63 - CUSHION, HYDROGEN TANK BAND, FRONT | ||||
| 77B63-62010 |
JPD10 |
2 | ||
| 77B63 - CUSHION, HYDROGEN TANK BAND, FRONT | ||||
| 77B63-62010 |
JPD10 |
2 | ||
| 77B64 - CUSHION, HYDROGEN TANK BAND, REAR | ||||
| 77B63-62010 |
JPD10 |
2 | ||
| 77B64 - CUSHION, HYDROGEN TANK BAND, REAR | ||||
| 77B63-62010 |
JPD10 |
2 | ||
| 82715E - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-62110 |
JPD10 |
1 | ||
| 82715-62111 |
JPD10 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90119-06859 | ||||
| 90119-10971 | ||||
| 90119-12427 | ||||
| 90119-12428 | ||||
| 90301-10026 | ||||
| 90387-09064 | ||||
| 90480-11016 | ||||
| 90501-60011 | ||||
| 91551-A0616 | ||||
| 91673-A0616 | ||||

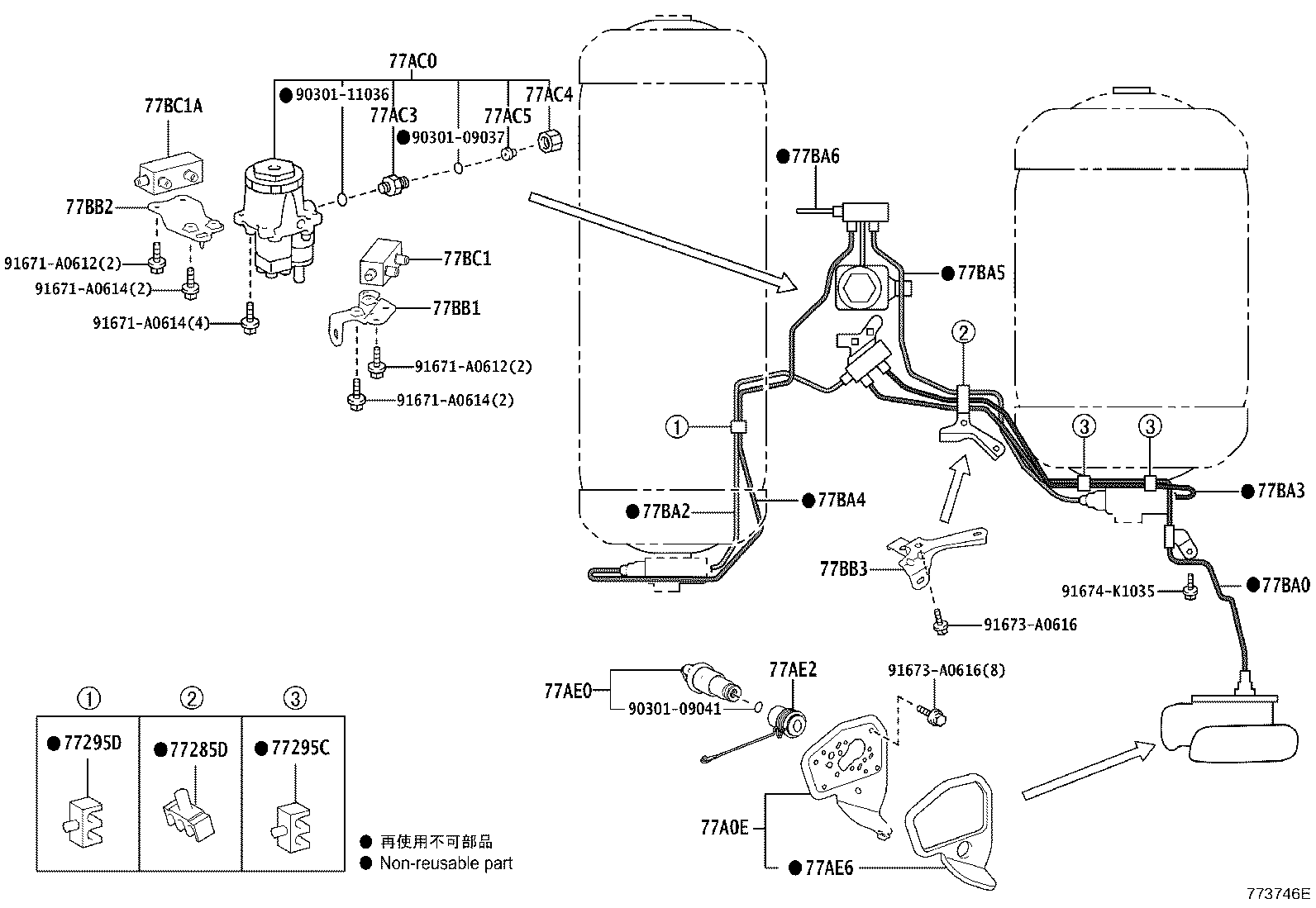

ILLUST NO. 2 OF 3(1412- )
Click highlighted areas on diagram
ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
JPD10 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-25010 |
JPD10 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-25010 |
JPD10 |
1 | ||
| 77A0E - BRACKET SUB-ASSY, HYDROGEN INLET RECEPTACLE | ||||
| 77A0E-62010 |
JPD10 |
1 | ||
| 77AC0 - REGULATOR ASSY, HYDROGEN SUPPLY | ||||
| 77AC0-62021 |
JPD10 |
1 | ||
| 77AC0-62020 |
JPD10 |
1 | ||
| 77AC0-62010 |
JPD10 |
1 | ||
| 77AC3 - UNION, HYDROGEN SUPPLY REGULATOR | ||||
| 77AC3-62010 |
JPD10 |
1 | ||
| 77AC4 - PLUG, HYDROGEN SUPPLY REGULATOR, NO.1 | ||||
| 77AC4-62010 |
JPD10 |
1 | ||
| 77AC5 - PLUG, HYDROGEN SUPPLY REGULATOR, NO.2 | ||||
| 77AC5-62010 |
JPD10 |
1 | ||
| 77AE0 - RECEPTACLE ASSY, HYDROGEN INLET | ||||
| 77AE0-62010 |
JPD10 |
1 | ||
| 77AE0-62020 |
JPD10 |
1 | ||
| 77AE0-62021 |
JPD10 |
1 | ||
| 77AE2 - CAP, HYDROGEN INLET RECEPTACLE | ||||
| 77AE2-62010 |
JPD10 |
1 | ||
| 77AE6 - CUSHION, HYDROGEN INLET RECEPTACLE BRACKET, NO.1 | ||||
| 77AE6-62010 |
JPD10 |
1 | ||
| 77BA0 - TUBE ASSY, HYDROGEN TANK | ||||
| 77BA0-62011 |
JPD10 |
1 | ||
| 77BA0-62012 |
JPD10 |
1 | ||
| 77BA0-62010 |
JPD10 |
1 | ||
| 77BA2 - TUBE, HYDROGEN TANK, NO.2 | ||||
| 77BA2-62010 |
JPD10 |
1 | ||
| 77BA2-62011 |
JPD10 |
1 | ||
| 77BA2-62012 |
JPD10 |
1 | ||
| 77BA3 - TUBE, HYDROGEN TANK, NO.3 | ||||
| 77BA3-62010 |
JPD10 |
1 | ||
| 77BA3-62012 |
JPD10 |
1 | ||
| 77BA3-62011 |
JPD10 |
1 | ||
| 77BA4 - TUBE, HYDROGEN TANK NO.4 | ||||
| 77BA4-62010 |
JPD10 |
1 | ||
| 77BA4-62011 |
JPD10 |
1 | ||
| 77BA4-62012 |
JPD10 |
1 | ||
| 77BA5 - TUBE, HYDROGEN TANK NO.5 | ||||
| 77BA5-62011 |
JPD10 |
1 | ||
| 77BA5-62012 |
JPD10 |
1 | ||
| 77BA5-62010 |
JPD10 |
1 | ||
| 77BA6 - TUBE, HYDROGEN TANK, NO.6 | ||||
| 77BA6-62010 |
JPD10 |
1 | ||
| 77BA6-62011 |
JPD10 |
1 | ||
| 77BB1 - BRACKET, HYDROGEN TANK TUBE JOINT INLET | ||||
| 77BB1-62010 |
JPD10 |
1 | ||
| 77BB2 - BRACKET, HYDROGEN TANK TUBE JOINT SUPPLY | ||||
| 77BB2-62010 |
JPD10 |
1 | ||
| 77BB3 - BRACKET, HYDROGEN TANK TUBE CLAMP | ||||
| 77BB3-62010 |
JPD10 |
1 | ||
| 77BC1 - JOINT, HYDROGEN TANK TUBE | ||||
| 77BC1-62010 |
JPD10 |
1 | ||
| 77BC1-62011 |
JPD10 |
1 | ||
| 77BC1A - JOINT, HYDROGEN TANK TUBE | ||||
| 77BC1-62011 |
JPD10 |
1 | ||
| 77BC1-62010 |
JPD10 |
1 | ||
| Common parts | ||||
| 90301-09037 | ||||
| 90301-09041 | ||||
| 90301-11036 | ||||
| 91671-A0612 | ||||
| 91671-A0614 | ||||
| 91673-A0616 | ||||
| 91674-K1035 | ||||

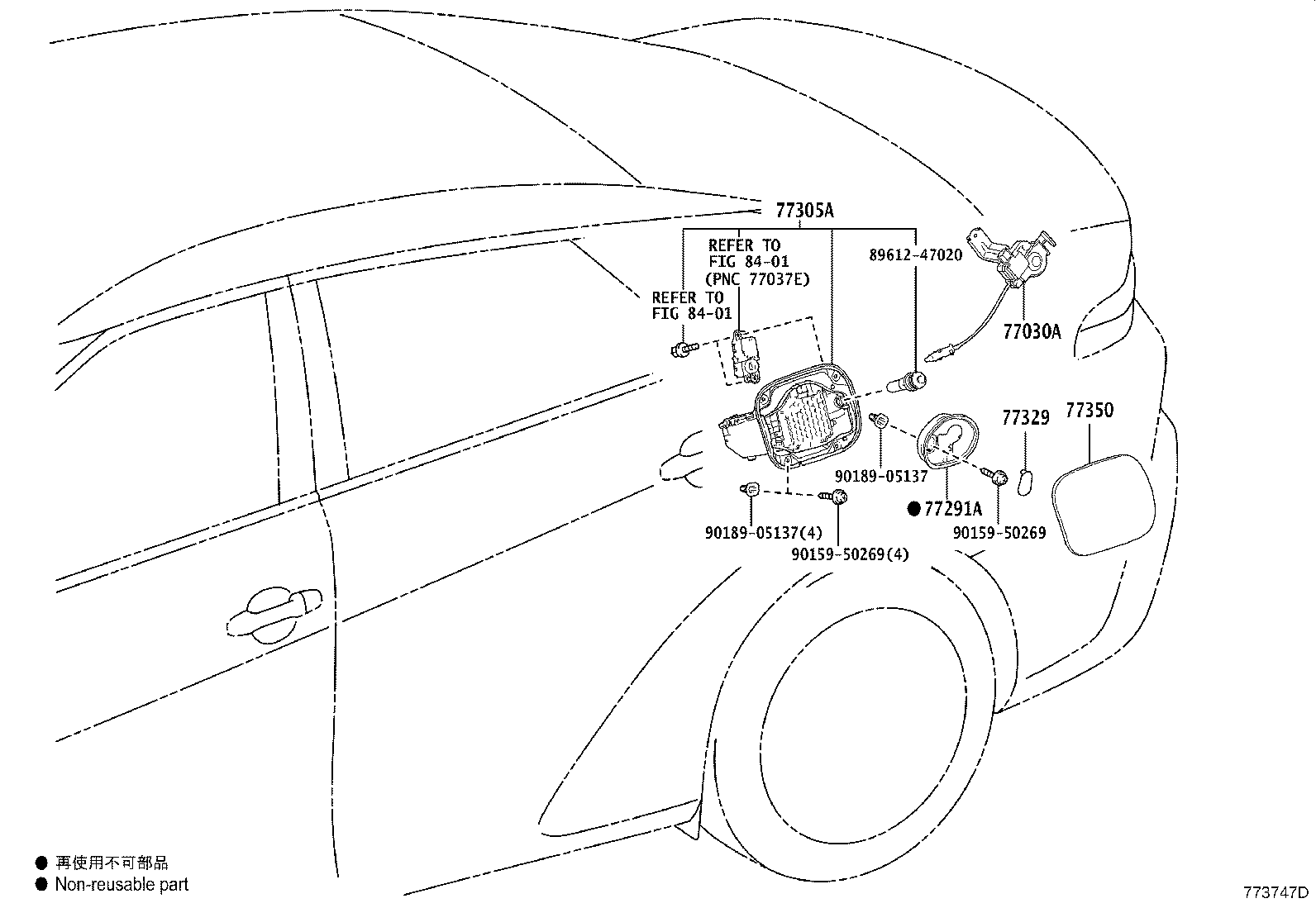

ILLUST NO. 3 OF 3(1412- )
Click highlighted areas on diagram
ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-62020 |
JPD10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-62010 |
JPD10 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-62021 |
JPD10 |
1 | ||
| 77305-62020 |
JPD10 |
1 | ||
| 77329 - COVER, FUEL TANK CAP | ||||
| 77329-62010 |
JPD10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-62020 |
JPD10 |
1 | ||
| Common parts | ||||
| 89612-47020 | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
| Linked diagrams | ||||
| 8401 | ||||
