JPD10-CEDSS (2014)
Toyota Mirai
Production
Dec 2014
-
May 2020
Engine
4JM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1412- )

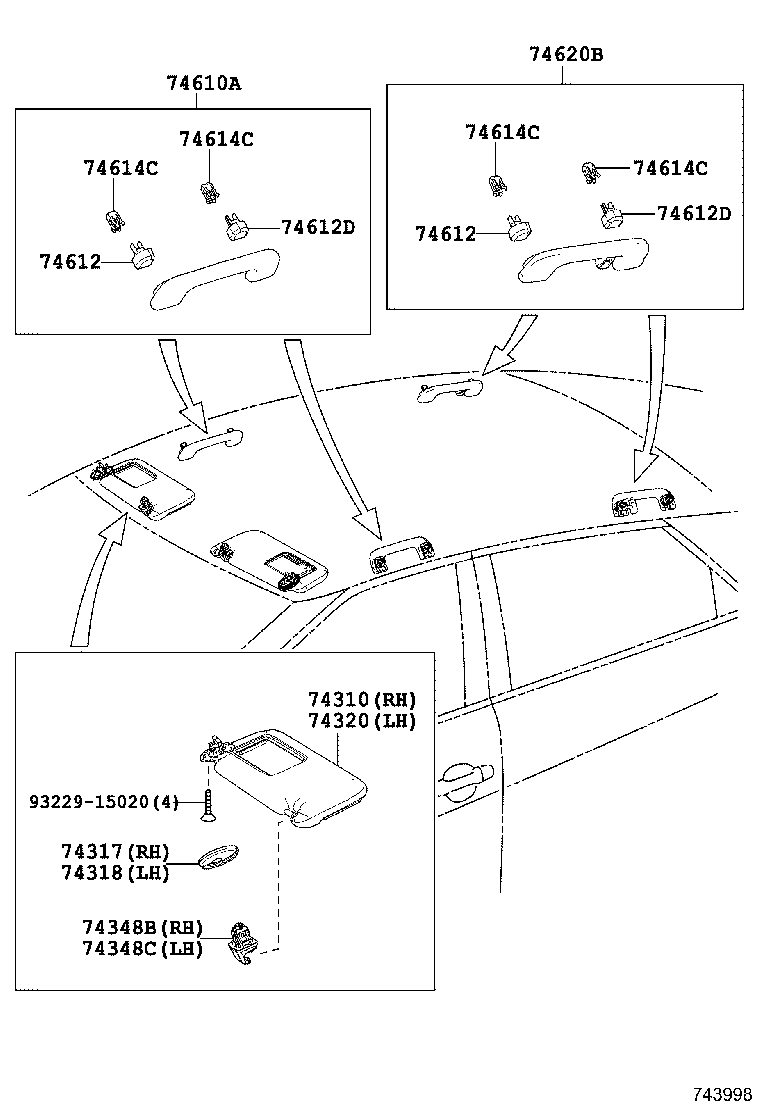

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-62040A0 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74310-62090A0 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020A8 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020A8 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-62030A0 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74320-62040A0 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-33040A9 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-33040A9 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12130A1 |
JPD10 WARM WHITE,TRIM0#,8# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-12040A1 |
JPD10 WARM WHITE,TRIM0#,8# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-12040A1 |
JPD10 WARM WHITE,TRIM0#,8# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-12040A1 |
JPD10 WARM WHITE,TRIM0#,8# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-12040A1 |
JPD10 WARM WHITE,TRIM0#,8# |
4 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
JPD10 |
8 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
JPD10 |
8 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
JPD10 |
8 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
JPD10 |
8 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-42060A1 |
JPD10 WARM WHITE,TRIM0#,8# |
2 | ||
| Common parts | ||||
| 93229-15020 | ||||
