JPD10-CEDSS (2014)

Toyota Mirai

Production Dec 2014 - May 2020
Engine 4JM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1412- )

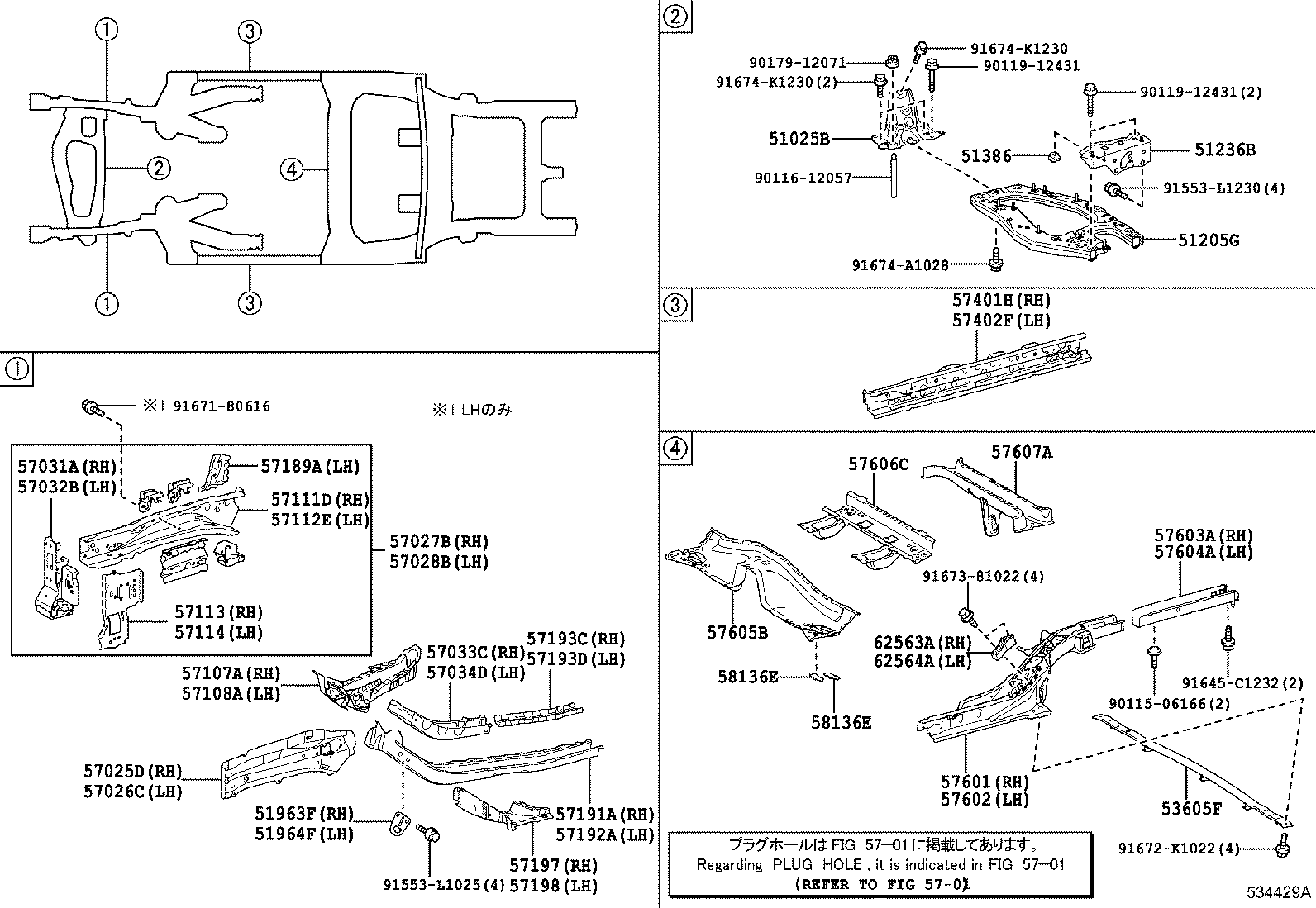

Click highlighted areas on diagram

diagram 51025B 51205G 51236B 51386 51963F 51964F 53605F 5701 57025D 57026C 57027B 57028B 57031A 57032B 57033C 57034D 57107A 57108A 57111D 57112E 57113 57114 57189A 57191A 57192A 57193C 57193D 57197 57198 57401H 57402F 57601 57602 57603A 57604A 57605B 57606C 57607A 58136E 58136E 62563A 62564A 9011506166 9011612057 9011912431 9011912431 9017912071 91553L1025 91553L1230 91645C1232 9167180616 91672K1022 9167381022 91674A1028 91674K1230 91674K1230
Part # Description Qty Price
51025B - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH
51025-62010

JPD10

 1
51205G - CROSSMEMBER SUB-ASSY, FRAME, CENTER
51205-62010

JPD10

 1
51236B - PLATE, FRAME CENTER CROSSMEMBER
51236-62010

JPD10

 1
51386 - SUPPORT, FRONT FRAME ROD, OUTER LH
51386-62010

JPD10

 1
51963F - HOOK, TRANSPORT
51963-12250

JPD10

 1
51964F - HOOK, TRANSPORT, LH
51964-12040

JPD10

 1
53605F - BRACE SUB-ASSY, REAR SUSPENSION
53605-62010

JPD10

 1
57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-12010

JPD10

 1
57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-12020

JPD10

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-12010

JPD10

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-12020

JPD10

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-12010

JPD10

 1
57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-12010

JPD10

 1
57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57033-62010

JPD10

 1
57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57034-62010

JPD10

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-62010

JPD10

 1
57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57108-62010

JPD10

 1
57111D - MEMBER, FRONT SIDE, INNER RH
57111-12230

JPD10

 1
57112E - MEMBER, FRONT SIDE, INNER LH
57112-12190

JPD10

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12220

JPD10

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12191

JPD10

 1
57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57189-12010

JPD10

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-62010

JPD10

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-62010

JPD10

 1
57193C - PLATE, FRONT SIDE MEMBER, NO.8 RH
57193-62010

JPD10

 1
57193D - PLATE, FRONT SIDE MEMBER, NO.8 LH
57194-62010

JPD10

 1
57197 - BOX, TORQUE, FRONT RH
57197-62010

JPD10

 1
57198 - BOX, TORQUE, FRONT LH
57198-62010

JPD10

 1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-62010

JPD10

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-62010

JPD10

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-62010

JPD10

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-62010

JPD10

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-62010

JPD10

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-62010

JPD10

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-62010

JPD10

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-62010

JPD10

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-62010

JPD10

 1
58136E - COVER, FRONT SIDE MEMBER
58136-62010

JPD10

 4
58136E - COVER, FRONT SIDE MEMBER
58136-62010

JPD10

 4
62563A - PROTECTOR, ROCKER PANEL, INNER REAR RH
62563-62010

JPD10

 1
62564A - PROTECTOR, ROCKER PANEL, INNER REAR LH
62564-62010

JPD10

 1
Common parts
90115-06166
90116-12057
90119-12431
90179-12071
91553-L1025
91553-L1230
91645-C1232
91671-80616
91672-K1022
91673-81022
91674-A1028
91674-K1230
Linked diagrams
5701
