ANA15-AWXSK (2009)
Toyota Mark X Zio

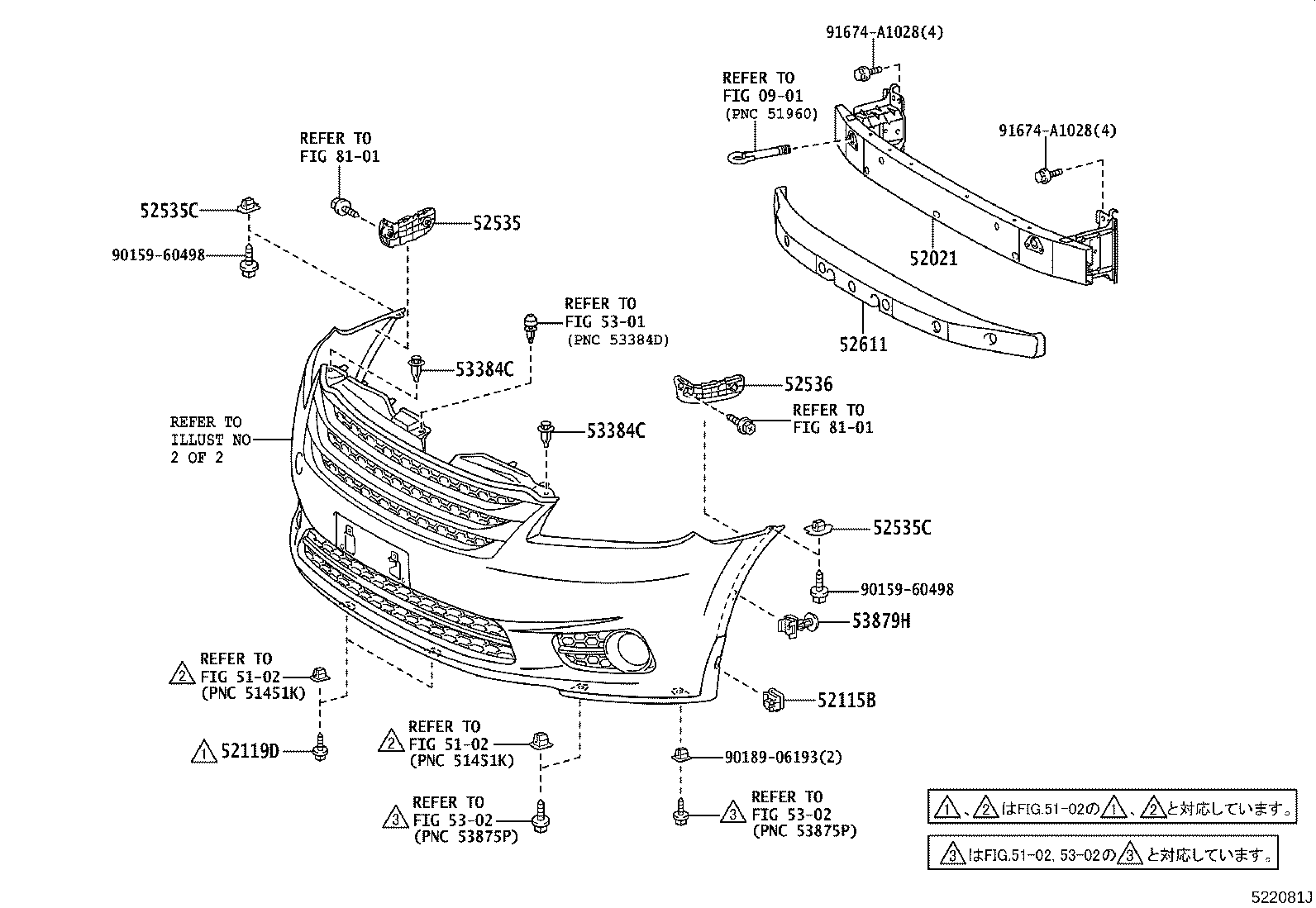

ILLUST NO. 1 OF 2(0902- )ARIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1 | ||||
| 52115-30120 |
ANA1#..ARIAL |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 52611-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-68010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-68010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90189-06193 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 8101 | ||||

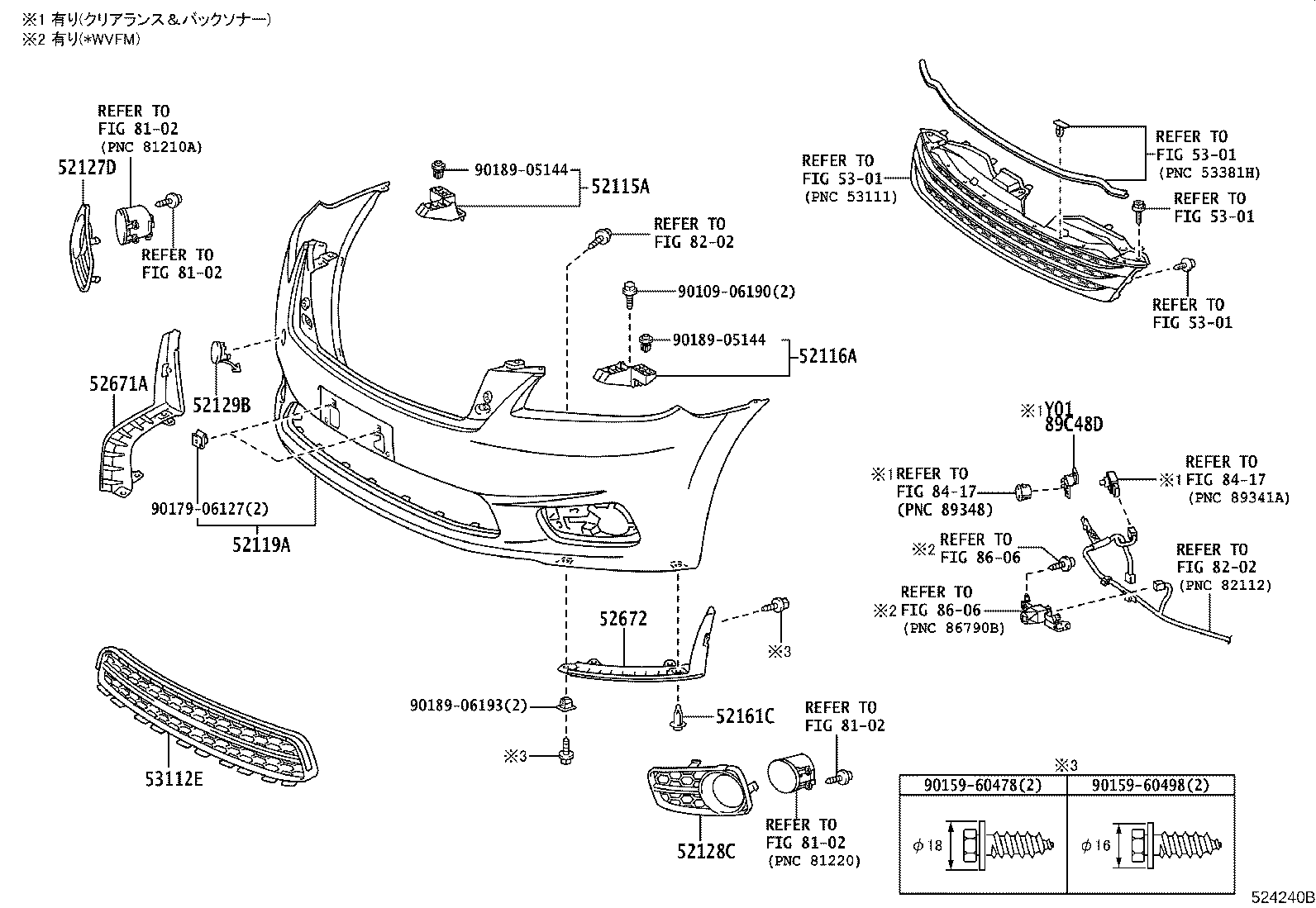

ILLUST NO. 2 OF 2(0902- )ARIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-72020 |
ANA1#..ARIAL |
1 | ||
| 52115-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-72020 |
ANA1#..ARIAL |
1 | ||
| 52116-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-72010B0 |
ANA1#,GGA10..CBU DK.GRAY M.M.,1E9 |
1 | ||
| 52119-72040A0 |
ANA1#..ARIAL WHITE PEARL CS.,070 |
1 | ||
| 52119-72040H0 |
ANA1#..ARIAL FROSTY GREEN MC.,781 |
1 | ||
| 52119-72040D1 |
ANA1#..ARIAL RED M.M.,3R3 |
1 | ||
| 52119-72040J1 |
ANA1#..ARIAL LT.BLUE M.M.,8S7 |
1 | ||
| 52119-72040C0 |
ANA1#..ARIAL BLACK MC.,209 |
1 | ||
| 52119-72050D0 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACKISH RED MC.,3R0 |
1 | ||
| 52119-72050D1 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED M.M.,3R3 |
1 | ||
| 52119-72050C0 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
1 | ||
| 52119-72050B0 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1G7 |
1 | ||
| 52119-72040B0 |
ANA1#..ARIAL SILVER ME.,1G7 |
1 | ||
| 52119-72050A0 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-72050J0 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE MC.,8S6 |
1 | ||
| 52119-72040J0 |
ANA1#..ARIAL DK.BLUE MC.,8S6 |
1 | ||
| 52119-72050H0 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FROSTY GREEN MC.,781 |
1 | ||
| 52119-72050J1 |
ANA1#..ARIAL ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LT.BLUE M.M.,8S7 |
1 | ||
| 52119-72040D0 |
ANA1#..ARIAL BLACKISH RED MC.,3R0 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-72010 |
ANA1#..ARIAL |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-72010 |
ANA1#..ARIAL |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-72010B0 |
ANA1#,GGA10..CBU DK.GRAY M.M.,1E9 |
1 | ||
| 52129-72020A0 |
ANA1#..ARIAL WHITE PEARL CS.,070 |
1 | ||
| 52129-72020B0 |
ANA1#..ARIAL SILVER ME.,1G7 |
1 | ||
| 52129-72020J1 |
ANA1#..ARIAL LT.BLUE M.M.,8S7 |
1 | ||
| 52129-72020J0 |
ANA1#..ARIAL DK.BLUE MC.,8S6 |
1 | ||
| 52129-72020D0 |
ANA1#..ARIAL BLACKISH RED MC.,3R0 |
1 | ||
| 52129-72020C0 |
ANA1#..ARIAL BLACK MC.,209 |
1 | ||
| 52129-72020H0 |
ANA1#..ARIAL FROSTY GREEN MC.,781 |
1 | ||
| 52129-72020D1 |
ANA1#..ARIAL RED M.M.,3R3 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANA1#..ARIAL |
2 | ||
| 52671A - EXTENSION, FRONT BUMPER ARM, RH | ||||
| 52671-72010 |
ANA1#..ARIAL |
1 | ||
| 52672 - EXTENSION, FRONT BUMPER ARM, LH | ||||
| 52672-72010 |
ANA1#..ARIAL |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-72020 |
ANA1#..ARIAL 塗装不要 |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-33020 |
ANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-33020 |
ANA1#,GGA10..(350G,ARIAL)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
2 | ||
| Common parts | ||||
| 90109-06190 | ||||
| 90159-60478 | ||||
| 90159-60498 | ||||
| 90179-06127 | ||||
| 90189-05144 | ||||
| 90189-06193 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
| 8606 | ||||
