ANA10-AWXSK (2009)
Toyota Mark X Zio

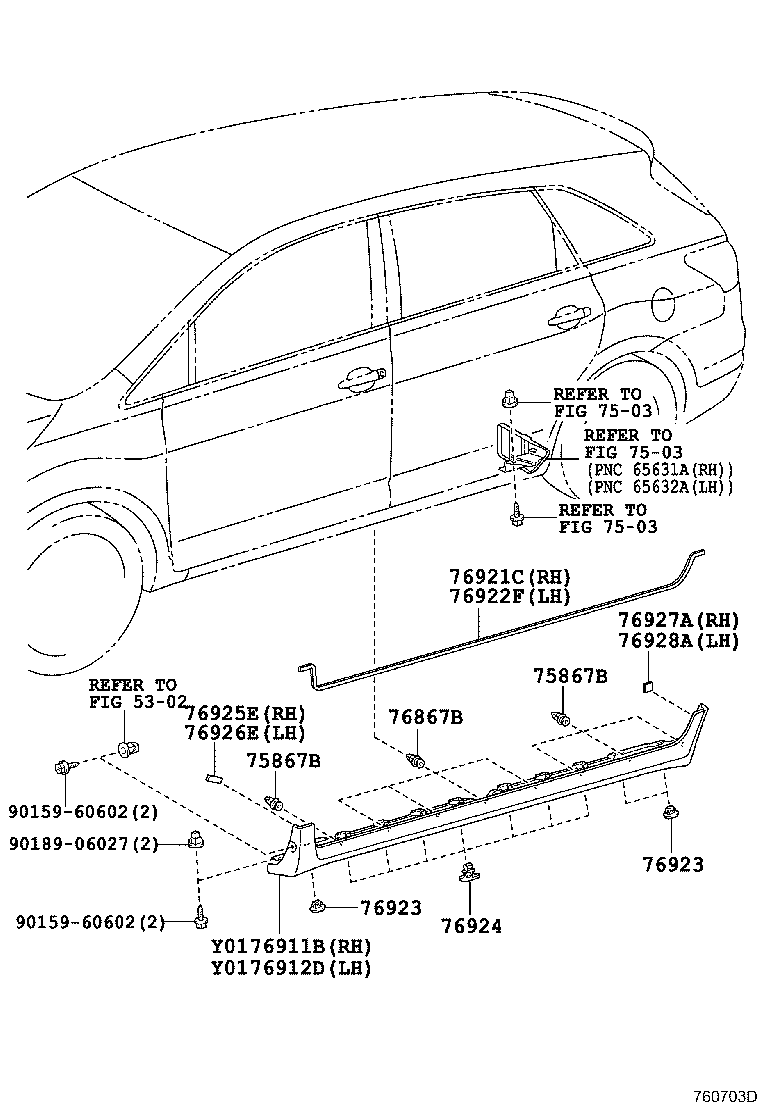

ILLUST NO. 2 OF 2(0902- )ARIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
ANA1#..ARIAL |
8 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
ANA1#..ARIAL |
8 | ||
| 76867B - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 90467-10161 |
ANA1#..ARIAL |
8 | ||
| 76911B - MUDGUARD, SIDE, RH | ||||
| 76911-72010A0 |
ANA1#..ARIAL WHITE PEARL CS.,070 |
1 | ||
| 76911-72010B0 |
ANA1#..ARIAL SILVER ME.,1G7 |
1 | ||
| 76911-72010H0 |
ANA1#..ARIAL FROSTY GREEN MC.,781 |
1 | ||
| 76911-72010D0 |
ANA1#..ARIAL BLACKISH RED MC.,3R0 |
1 | ||
| 76911-72010J1 |
ANA1#..ARIAL LT.BLUE M.M.,8S7 |
1 | ||
| 76911-72010C0 |
ANA1#..ARIAL BLACK MC.,209 |
1 | ||
| 76911-72010D1 |
ANA1#..ARIAL RED M.M.,3R3 |
1 | ||
| 76911-72010J0 |
ANA1#..ARIAL DK.BLUE MC.,8S6 |
1 | ||
| 76912D - MUDGUARD, SIDE, LH | ||||
| 76912-72010A0 |
ANA1#..ARIAL WHITE PEARL CS.,070 |
1 | ||
| 76912-72010B0 |
ANA1#..ARIAL SILVER ME.,1G7 |
1 | ||
| 76912-72010C0 |
ANA1#..ARIAL BLACK MC.,209 |
1 | ||
| 76912-72010H0 |
ANA1#..ARIAL FROSTY GREEN MC.,781 |
1 | ||
| 76912-72010D0 |
ANA1#..ARIAL BLACKISH RED MC.,3R0 |
1 | ||
| 76912-72010D1 |
ANA1#..ARIAL RED M.M.,3R3 |
1 | ||
| 76912-72010J0 |
ANA1#..ARIAL DK.BLUE MC.,8S6 |
1 | ||
| 76912-72010J1 |
ANA1#..ARIAL LT.BLUE M.M.,8S7 |
1 | ||
| 76921C - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76921-72010B0 |
ANA1#..ARIAL LT. GRAY,070 ,1G7 |
1 | ||
| 76921-72010C0 |
ANA1#..ARIAL BLACK,209 ,3R0 ,3R3 ,8S6 |
1 | ||
| 76921-72010B1 |
ANA1#..ARIAL GRAY,781 ,8S7 |
1 | ||
| 76922F - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76921-72010C0 |
ANA1#..ARIAL BLACK,209 ,3R0 ,3R3 ,8S6 |
1 | ||
| 76921-72010B1 |
ANA1#..ARIAL GRAY,781 ,8S7 |
1 | ||
| 76921-72010B0 |
ANA1#..ARIAL LT. GRAY,070 ,1G7 |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76924-12030 |
ANA1#..ARIAL |
6 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76924-12030 |
ANA1#..ARIAL |
6 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-72010 |
ANA1#..ARIAL |
14 | ||
| 76925E - PROTECTOR, SIDE MUDGUARD, FRONT RH | ||||
| 76925-72010 |
ANA1#..ARIAL |
1 | ||
| 76926E - PROTECTOR, SIDE MUDGUARD, FRONT LH | ||||
| 76925-72010 |
ANA1#..ARIAL |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-72010 |
ANA1#..ARIAL |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76927-72010 |
ANA1#..ARIAL |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06027 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7503 | ||||
