ANA10-AWXSK (2011)

Toyota Mark X Zio

Production Feb 2011 - Oct 2013
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1102- )

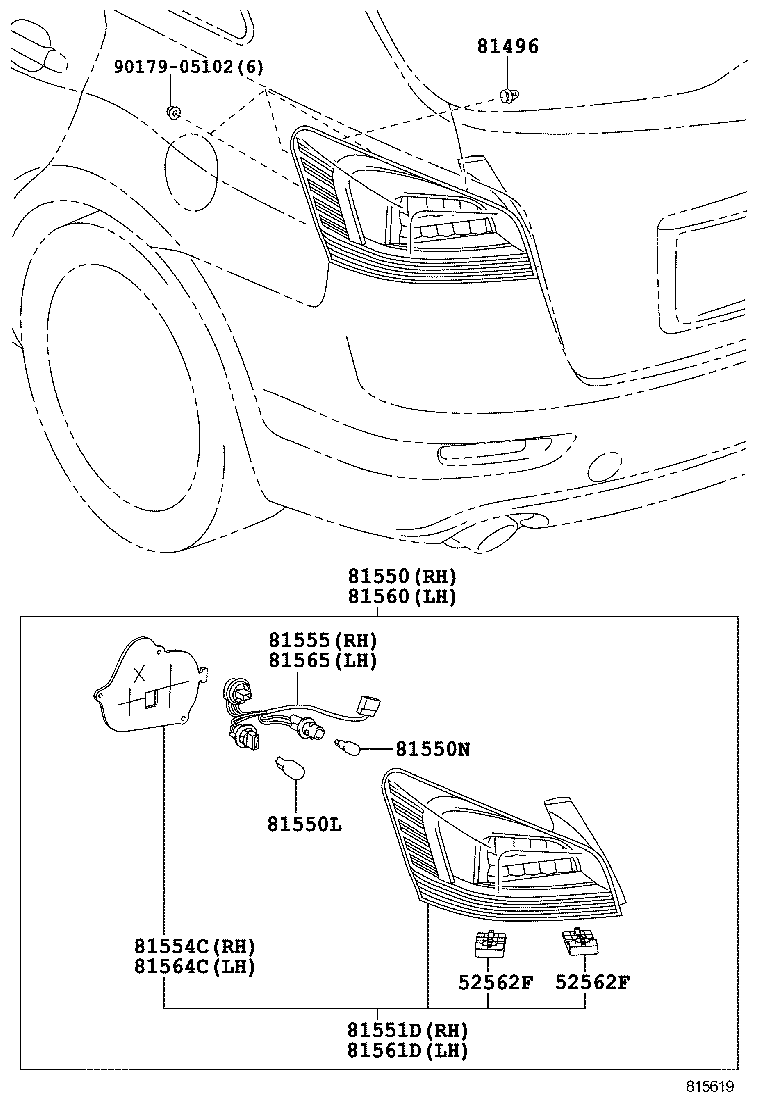

Click highlighted areas on diagram

diagram 52562F 52562F 81496 81550 81550L 81550N 81551D 81554C 81555 81560 81561D 81564C 81565 9017905102
Part # Description Qty Price
52562F - RETAINER, REAR BUMPER, UPPER SIDE
52562-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
52562-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
52562F - RETAINER, REAR BUMPER, UPPER SIDE
52562-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
52562-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010

ANA1#,GGA10..240,240G,350G,ARIAL

 2
81496-60010

ANA1#,GGA10..240,240G,350G,ARIAL

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81550-72040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

ANA1#,GGA10..240,240G,350G,ARIAL

 2
90981-15011

ANA1#,GGA10..240,240G,350G,ARIAL

 2
81550N - BULB, BACK UP LAMP
90981-11059

ANA1#,GGA10..240,240G,350G,ARIAL

 2
90981-11059

ANA1#,GGA10..240,240G,350G,ARIAL

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81551-72040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81554C - PACKING, REAR COMBINATION LAMP BODY, RH
81554-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81554-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81555-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81560-72040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-72040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81561-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81564C - PACKING, REAR COMBINATION LAMP BODY, LH
81554-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81554-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
81555-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90179-05102
