ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )ANA1#

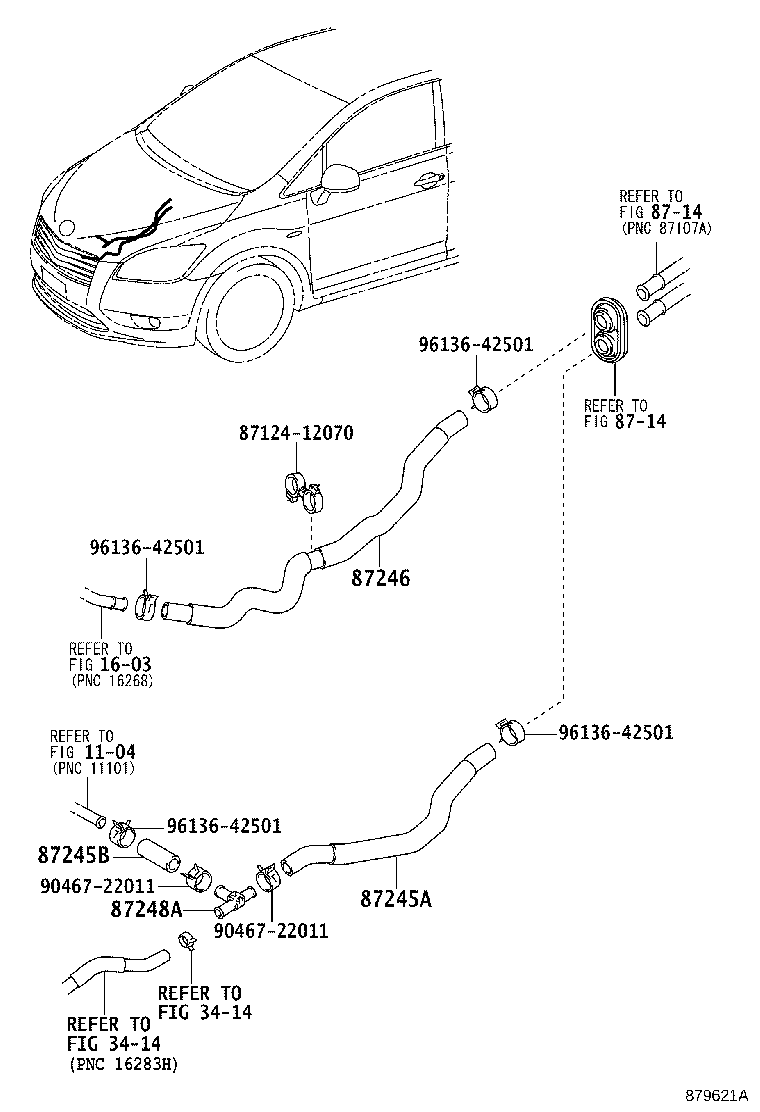

Click highlighted areas on diagram

diagram 1104 1603 3414 3414 8712412070 8714 8714 87245A 87245B 87246 87248A 9046722011 9046722011 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-12D10

ANA1#..240,240G,ARIAL

 1
87245B - HOSE, HEATER WATER, INLET B
87245-12D20

ANA1#..240,240G,ARIAL

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-12D00

ANA1#..240,240G,ARIAL

 1
87248A - PIPE, HEATER WATER INLET, A
87248-20380

ANA1#..240,240G,ARIAL

 1
Common parts
87124-12070
90467-22011
96136-42501
Linked diagrams
1104
1603
3414
8714
