ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

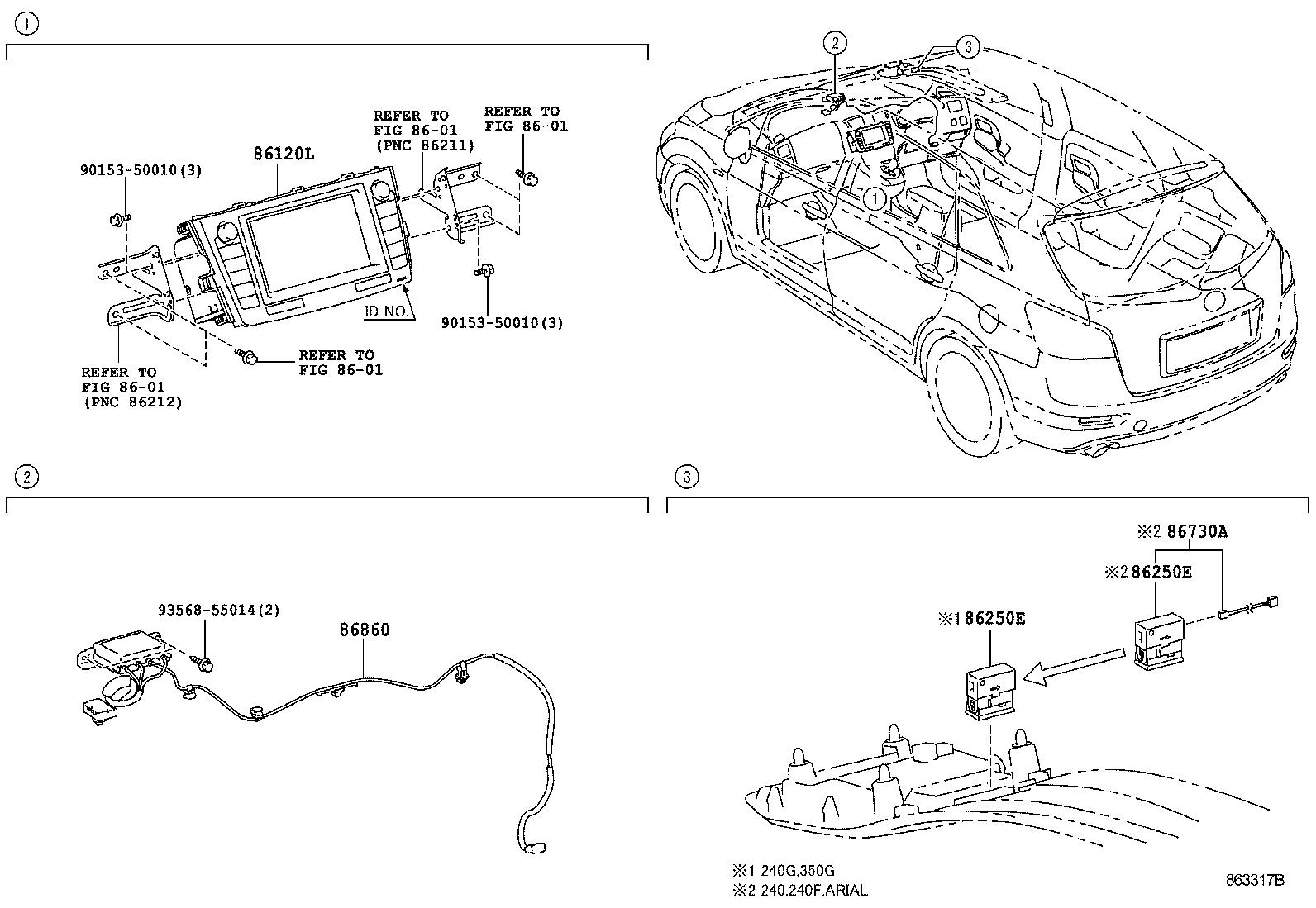

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86120L 86250E 86250E 86730A 86860 9015350010 9015350010 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86100-72012

ANA1#,GGA10

FUJITSU TEN,ID=26035,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86100-72014

ANA1#,GGA10

FUJITSU TEN,ID=26035,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86100-72010

ANA1#,GGA10..CBU

FUJITSU TEN,ID=26035,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86100-72013

ANA1#,GGA10

FUJITSU TEN,ID=26035,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86100-72015

ANA1#,GGA10

FUJITSU TEN,ID=26035,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86100-72030

ANA1#,GGA10

FUJITSU TEN,ID=26066,ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞQｰｼｮﾝ

 1
86100-72011

ANA1#,GGA10..CBU

FUJITSU TEN,ID=26035,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86100-72031

ANA1#,GGA10..240,240G,350G,ARIAL

FUJITSU TEN,ID=26066,ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞQｰｼｮﾝ

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

ANA1#..(240,240F,ARIAL)..CBU

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86250-52020

ANA1#..(240,240F,ARIAL)..CBU

ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

ANA1#..(240,240F,ARIAL)..CBU

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86250-52020

ANA1#..(240,240F,ARIAL)..CBU

ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-42010

ANA1#..(240,240F,ARIAL)..CBU

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86730-42010

ANA1#..(240,240F,ARIAL)..CBU

ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ

 1
86860 - ANTENNA ASSY, NAVIGATION
86870-72010

ANA1#,GGA10

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ&ETC−有り&GｰBOOK−有り

 1
86870-72010

ANA1#,GGA10

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ&ETC−有り

 1
86870-72040

ANA1#,GGA10

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ&GｰBOOK−有り

 1
86860-72010

ANA1#,GGA10

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86870-72010

ANA1#,GGA10..240,240G,350G,ARIAL

ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ

 1
86870-72010

ANA1#,GGA10..240,240G,350G,ARIAL

ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ&GｰBOOK−有り

 1
Common parts
90153-50010
93568-55014
Linked diagrams
8601
