ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

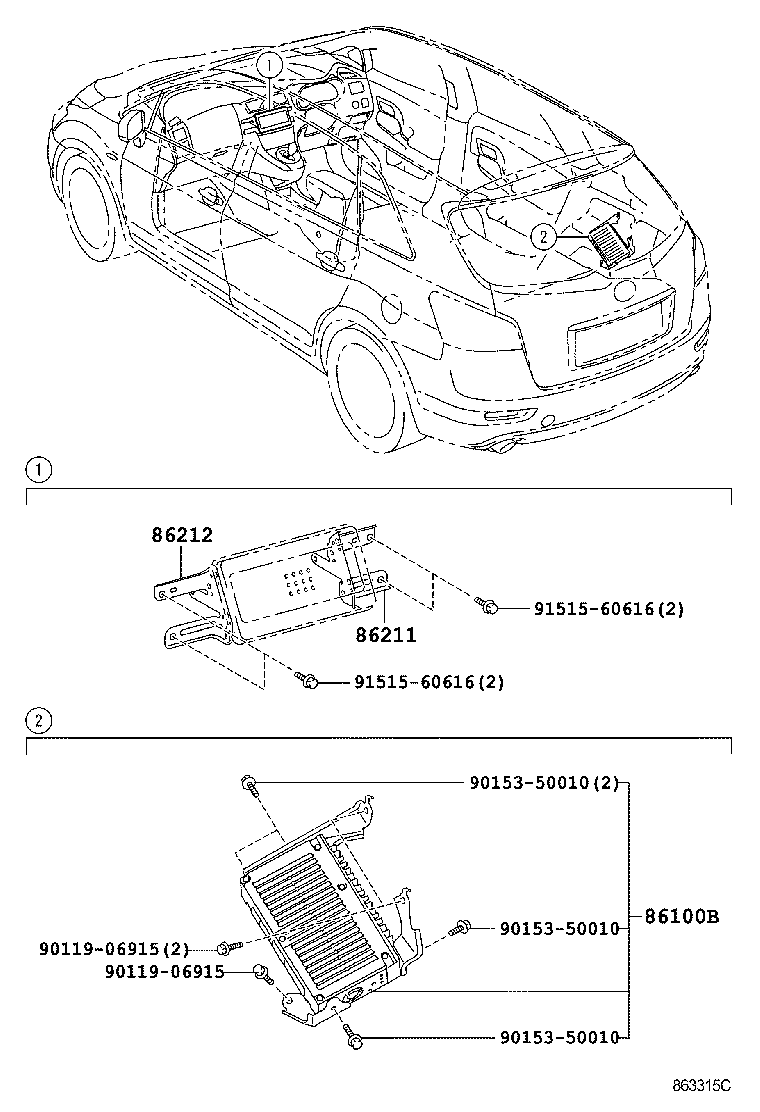

ILLUST NO. 1 OF 2(0709- )

Click highlighted areas on diagram

diagram 86100B 86211 86212 9011906915 9011906915 9015350010 9015350010 9015350010 9151560616 9151560616
Part # Description Qty Price
86100B - AMPLIFIER ASSY
86100-72020

ANA1#,GGA10

ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ

 1
86100-72040

ANA1#,GGA10..240,240G,350G,ARIAL

ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ

 1
86211 - BRACKET, RADIO, NO.1
86211-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
86212 - BRACKET, RADIO, NO.2
86212-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90119-06915
90153-50010
91515-60616

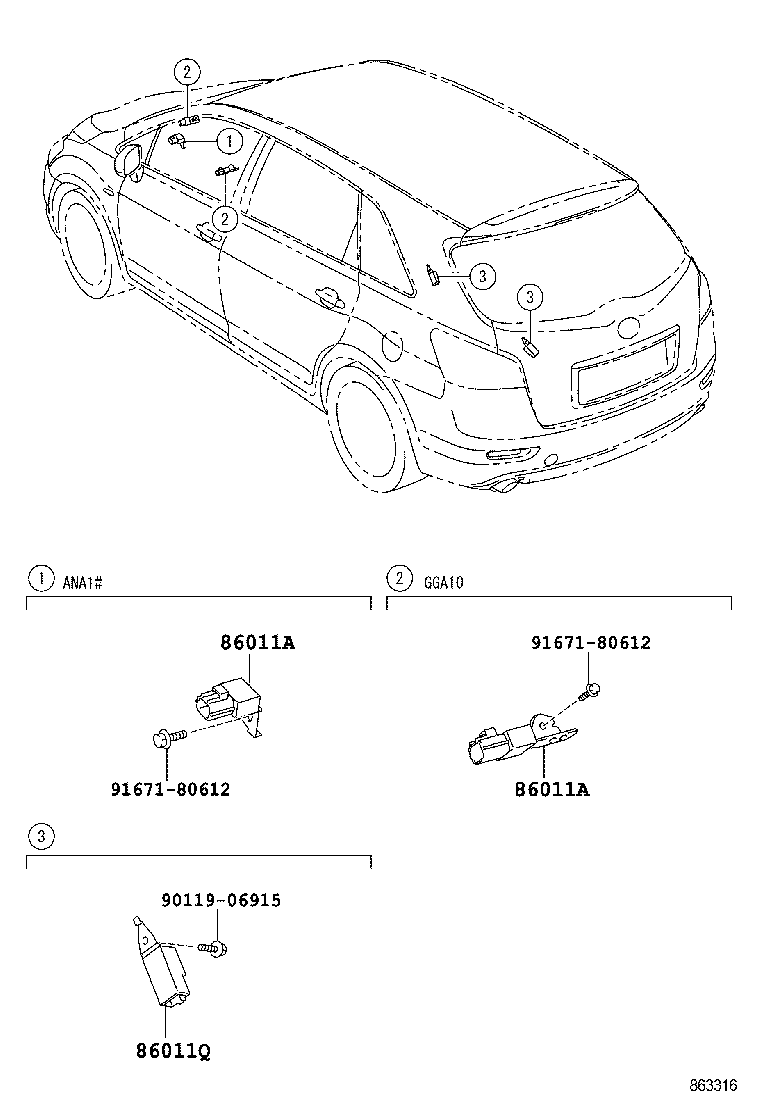

ILLUST NO. 2 OF 2(0709- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 86011A 86011Q 9011906915 9167180612 9167180612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04157

ANA1#..240,240G,ARIAL

 1
86011A - CONDENSER, RADIO SETTING
90980-04157

ANA1#..240,240G,ARIAL

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

ANA1#,GGA10..240,240G,350G,ARIAL

 2
Common parts
90119-06915
91671-80612
