ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

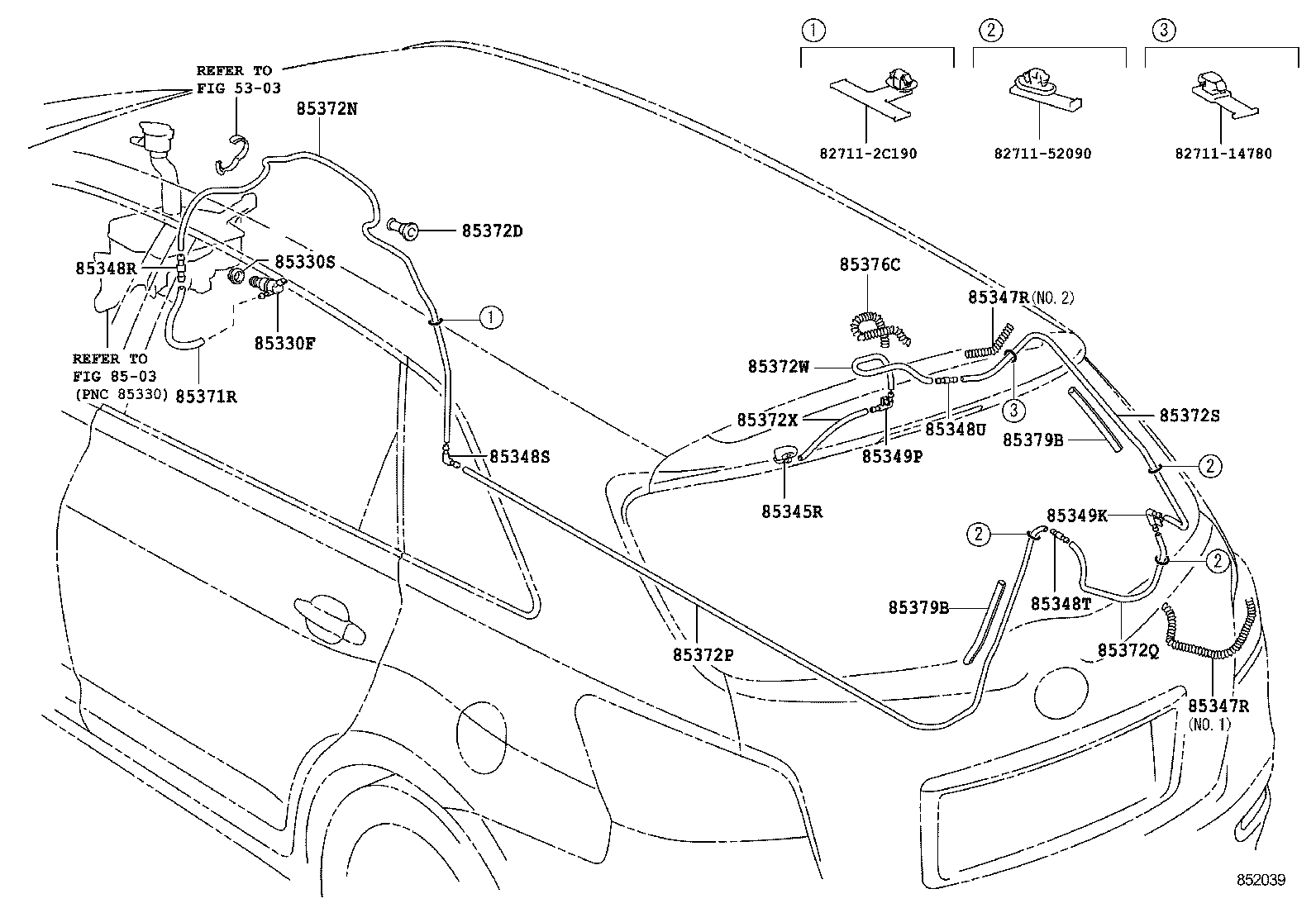

Click highlighted areas on diagram

diagram 5303 8271114780 827112C190 8271152090 8503 85330F 85330S 85345R 85347R 85347R 85348R 85348S 85348T 85348U 85349K 85349P 85371R 85372D 85372N 85372P 85372Q 85372S 85372W 85372X 85376C 85379B 85379B
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60160

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85345R - NOZZLE, REAR WASHER
85391-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85347R - SPRING
85389-12010

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
85389-72020

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
85347R - SPRING
85389-12010

ANA1#,GGA10..240,240G,350G,ARIAL

NO.1

 1
85389-72020

ANA1#,GGA10..240,240G,350G,ARIAL

NO.2

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85375-16160

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85375-16160

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=230

 1
85372D - GROMMET, REAR WASHER HOSE
85379-12850

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=1405

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=2450

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=550

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=930

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=340

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=280

 1
85376C - SPRING, WASHER HOSE
85389-72030

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85379B - GROMMET, WASHER, A
85379-72020

ANA1#,GGA10..240,240G,350G,ARIAL

 2
85379B - GROMMET, WASHER, A
85379-72020

ANA1#,GGA10..240,240G,350G,ARIAL

 2
Common parts
82711-14780
82711-2C190
82711-52090
Linked diagrams
5303
8503
