ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

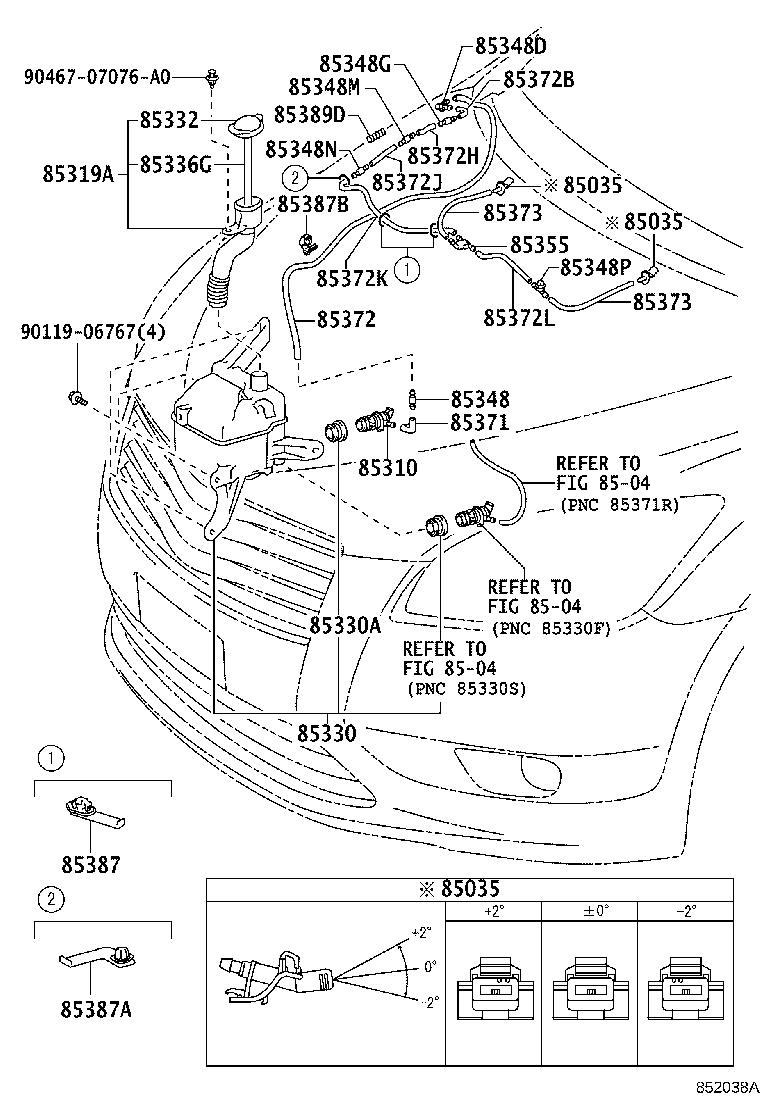

Click highlighted areas on diagram

diagram 85035 85035 85035 8504 8504 8504 85310 85319A 85330 85330A 85332 85336G 85348 85348D 85348G 85348M 85348N 85348P 85355 85371 85372 85372B 85372H 85372J 85372K 85372L 85373 85373 85387 85387A 85387B 85389D 9011906767 9046707076A0
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30110

ANA1#,GGA10..240,240G,350G,ARIAL

角度 0

 2
85381-30150

ANA1#,GGA10..240,240G,350G,ARIAL

角度 +2

 2
85381-30160

ANA1#,GGA10..240,240G,350G,ARIAL

角度 −2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30110

ANA1#,GGA10..240,240G,350G,ARIAL

角度 0

 2
85381-30150

ANA1#,GGA10..240,240G,350G,ARIAL

角度 +2

 2
85381-30160

ANA1#,GGA10..240,240G,350G,ARIAL

角度 −2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30110

ANA1#,GGA10..240,240G,350G,ARIAL

角度 0

 2
85381-30150

ANA1#,GGA10..240,240G,350G,ARIAL

角度 +2

 2
85381-30160

ANA1#,GGA10..240,240G,350G,ARIAL

角度 −2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85319A - HOSE, INLET
85319-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26030

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85336G - GAGE, WATER LEVEL
85318-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85375-72040

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85348P - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-17050

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85355-14481

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=1190

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85355-14481

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=65

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=80

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

ANA1#,GGA10

*H,L=580

 1
90446-07001

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=580

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90446-07001

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=270

 1
90099-33080

ANA1#,GGA10

*H,L=270

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=250

 6
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ANA1#,GGA10..240,240G,350G,ARIAL

*H,L=250

 6
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-2C280

ANA1#,GGA10..240,240G,350G,ARIAL

 2
85387A - CLAMP, WASHER, NO.2
82711-2C170

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85387B - CLAMP, WASHER, NO.3
82711-1E350

ANA1#,GGA10..240,240G,350G,ARIAL

 1
85389D - SPRING(WASHER HOSE)
85389-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90119-06767
90467-07076A0
Linked diagrams
8504
