ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

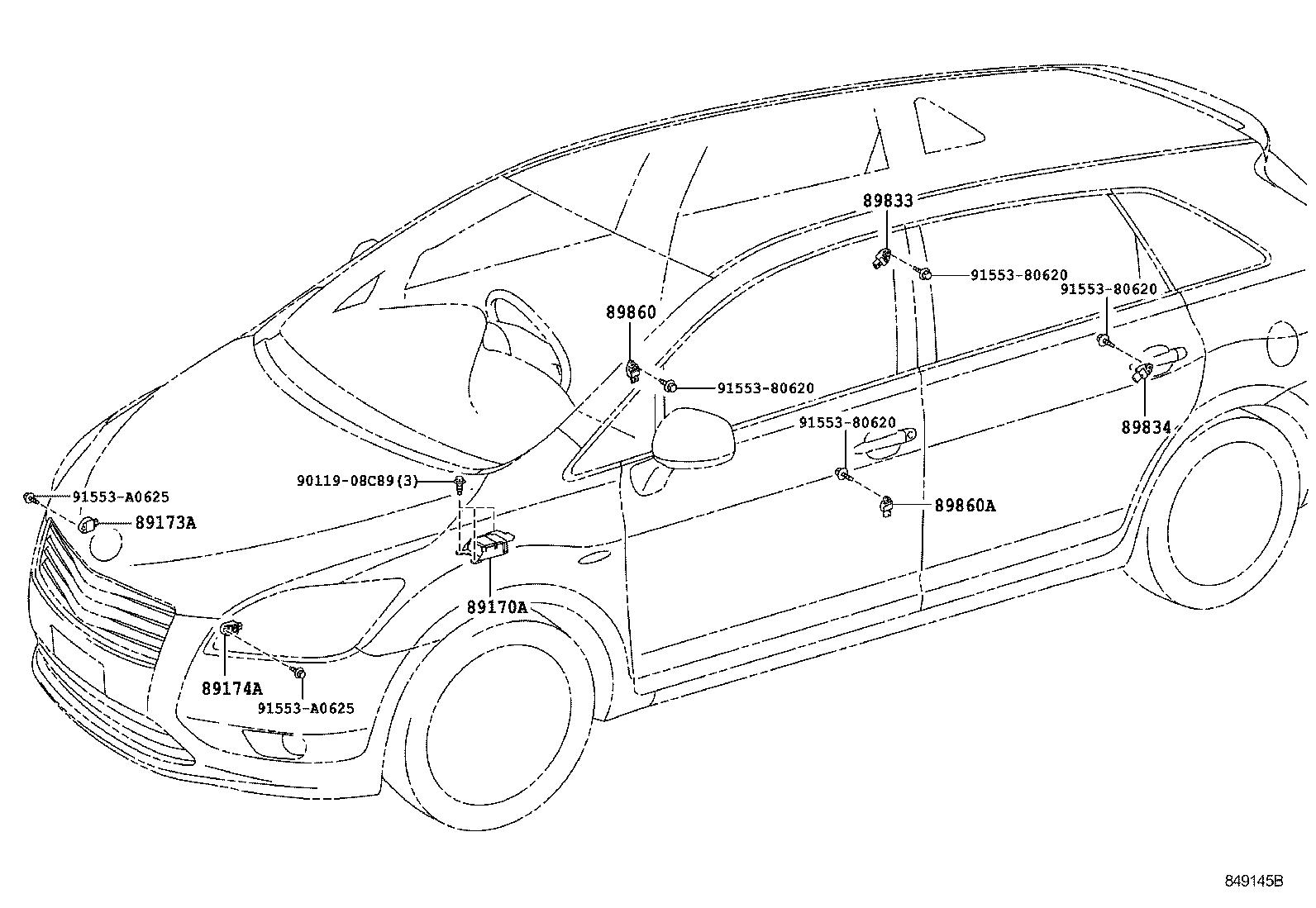

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89833 89834 89860 89860A 9011908C89 9155380620 9155380620 9155380620 9155380620 91553A0625 91553A0625
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49375

ANA1#,GGA10..240,240G,350G,ARIAL

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49375

ANA1#,GGA10..240,240G,350G,ARIAL

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-33030

ANA1#,GGA10..240,240G,350G,ARIAL

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-33030

ANA1#,GGA10..240,240G,350G,ARIAL

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-28020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-28020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90119-08C89
91553-80620
91553-A0625
