ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )ANA1#

Click highlighted areas on diagram

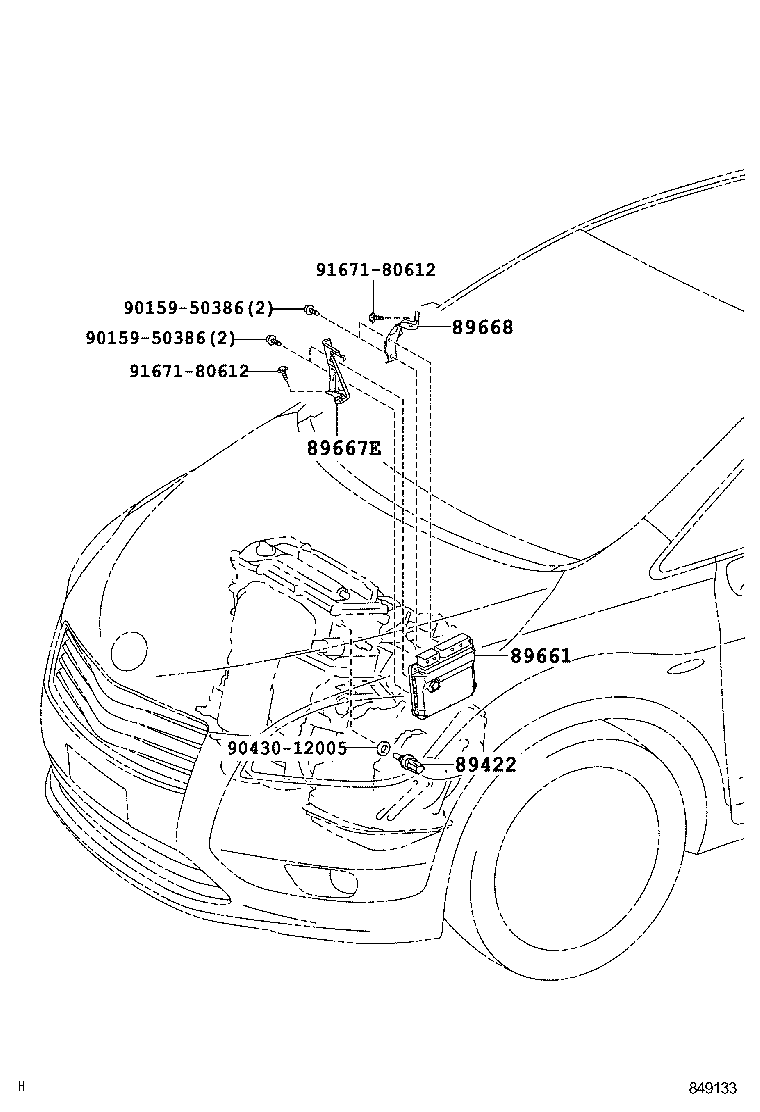

diagram 89422 89661 89667E 89668 9015950386 9015950386 9043012005 9167180612 9167180612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ANA1#,GGA10..CBU

 1
89661 - COMPUTER, ENGINE CONTROL
89661-72050

ANA10..240,240G,ARIAL

DENSO

 1
89661-72010

ANA10

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-12210

ANA1#,GGA10..240,240G,350G,ARIAL

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12180

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90159-50386
90430-12005
91671-80612
