ANA10-AWXNK (2007)
Toyota Mark X Zio

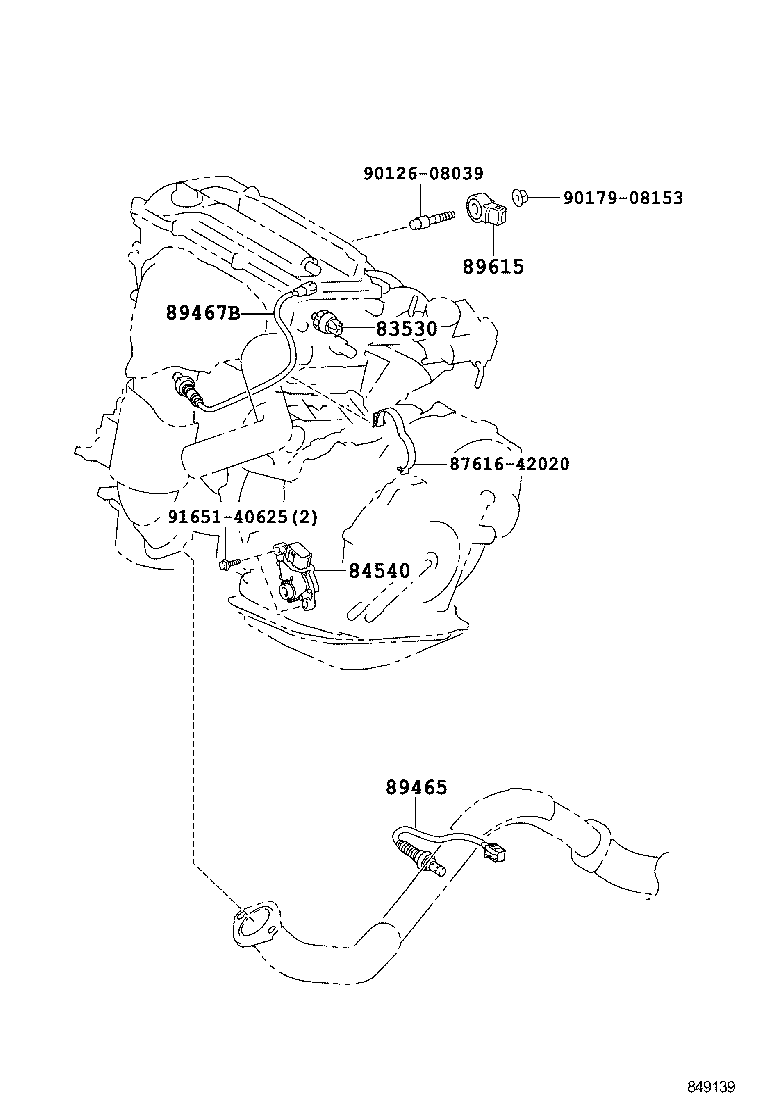

ILLUST NO. 1 OF 8(0709- )ANA1#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ANA1#,GGA10..CBU YAZAKI |
1 | ||
| 83530-28020 |
ANA1#,GGA10..CBU DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ANA1#..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12A00 |
ANA10..CBU |
1 | ||
| 89465-72010 |
ANA10..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28120 |
ANA1#..CBU |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ANA1#..CBU |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91651-40625 | ||||

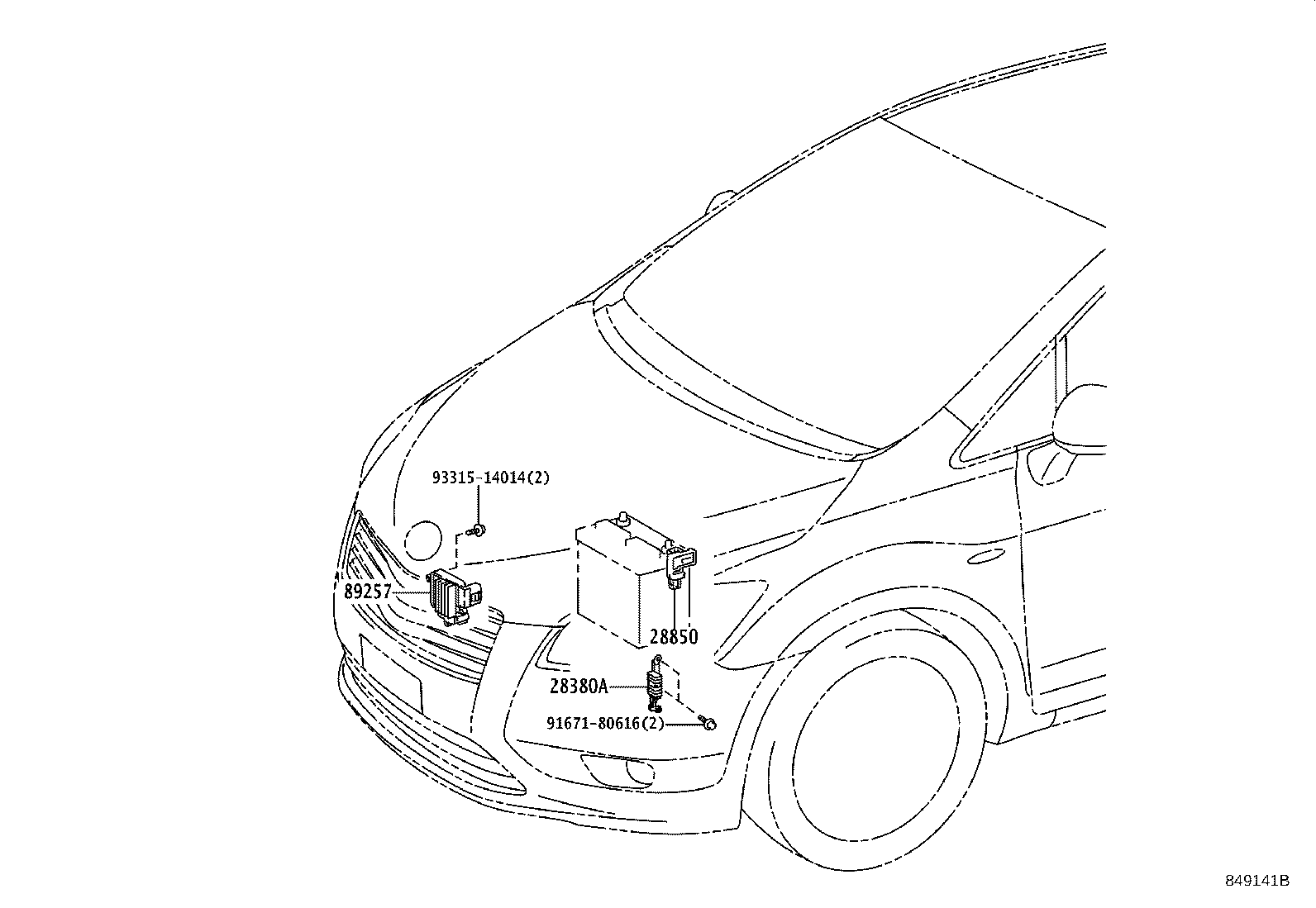

ILLUST NO. 2 OF 8(0709- )
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AZFE,2GRFE..ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 93315-14014 | ||||

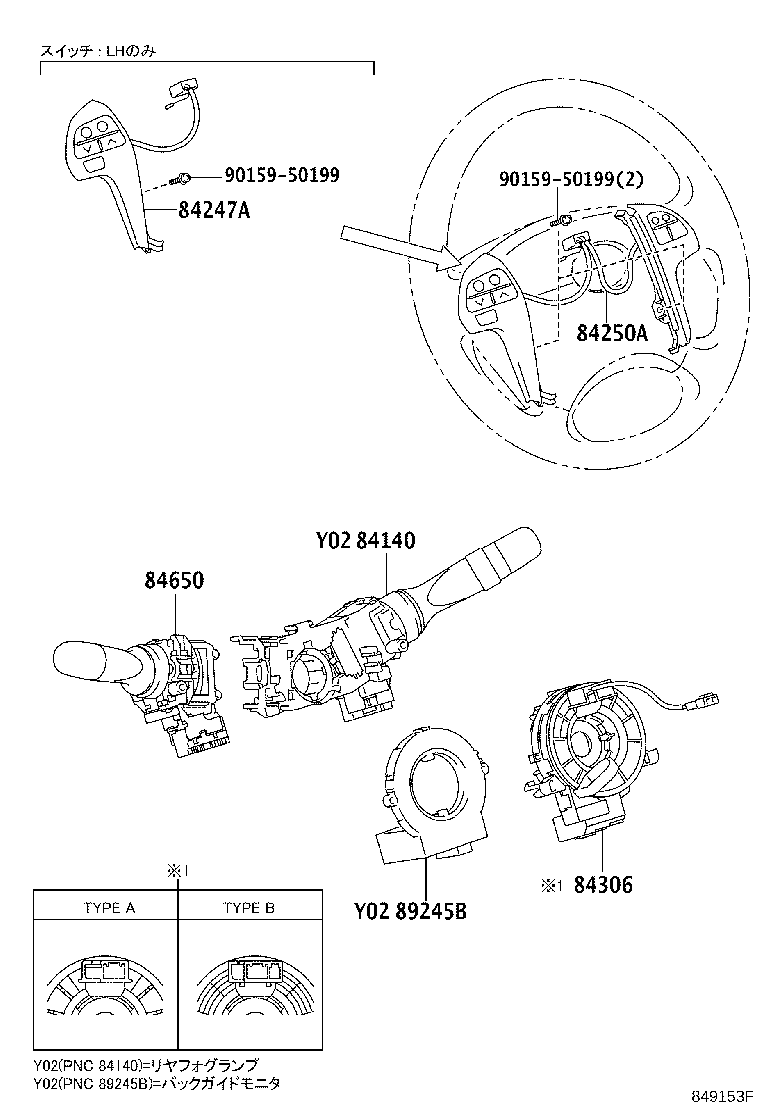

ILLUST NO. 6 OF 8(0709- )
ｲｸﾞﾆｯｼｮﾝ & ｺﾝﾋﾞﾈｰｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
ANA1#,GGA10..CBU |
1 | ||
| 84140-42080 |
ANA1#,GGA10..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 84247-72020 |
ANA1#..240 240“E−Selection” *(Z) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-72010 |
ANA1#..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 84250-72030 |
ANA1#,GGA10..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 84250-72010 |
ANA1#,GGA10..CBU ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 84250-72010 |
ANA1#..(240,240F,240G)..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 84250-72030 |
ANA1#,GGA10..CBU ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12100 |
ANA1#,GGA10..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 84306-52090 |
ANA1#..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84306-52090 |
ANA1#,GGA10..CBU TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
ANA1#,GGA10..CBU |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

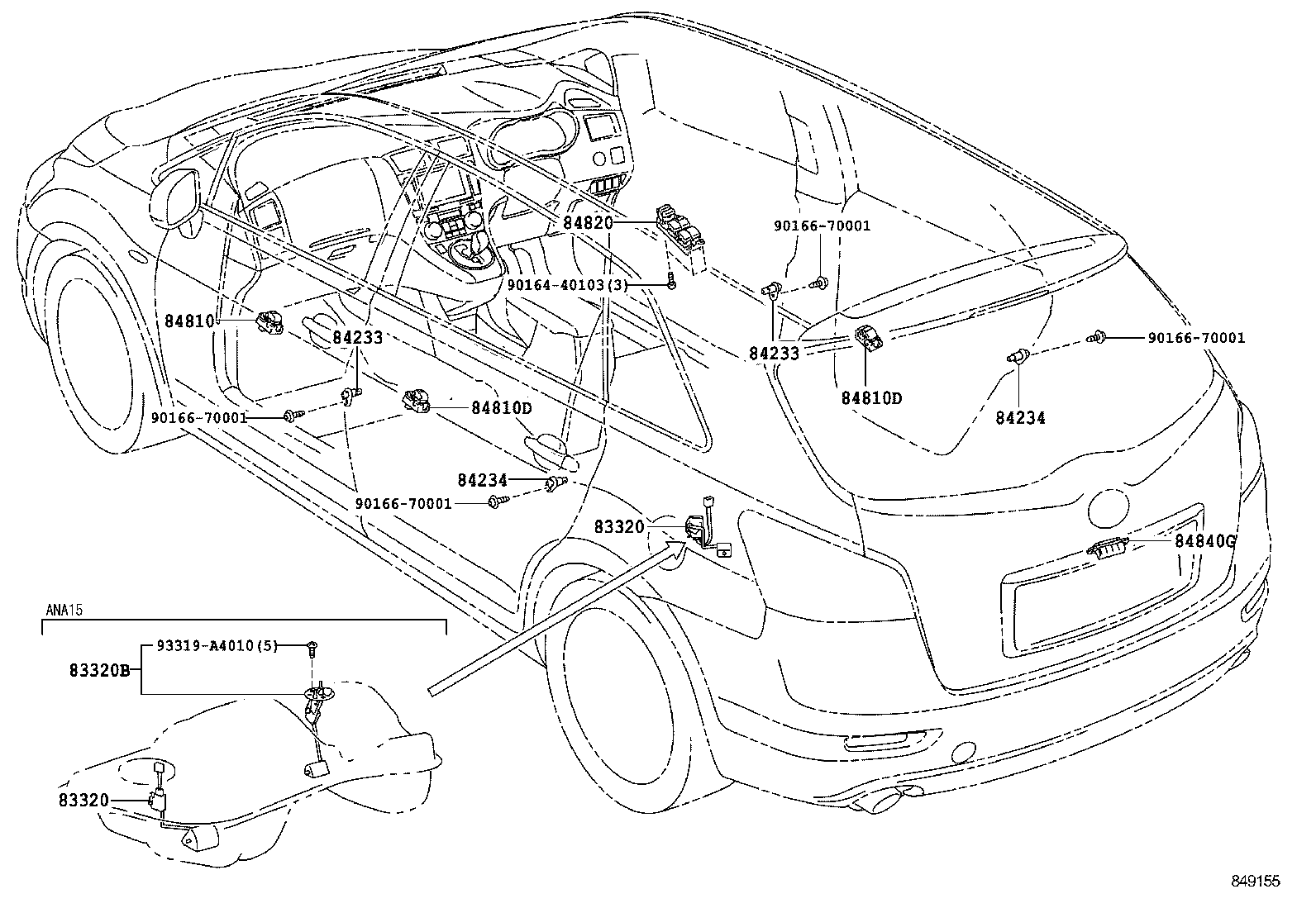

ILLUST NO. 8 OF 8(0709- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-72010 |
ANA10,GGA10..CBU |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-72010 |
ANA10,GGA10..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ANA1#,GGA10..CBU |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ANA1#,GGA10..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ANA1#,GGA10..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ANA1#,GGA10..CBU |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ANA1#,GGA10..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ANA1#,GGA10..CBU |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ANA1#,GGA10..CBU |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-33080 |
ANA1#,GGA10..CBU |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-72010 |
ANA1#,GGA10..CBU |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 93319-A4010 | ||||

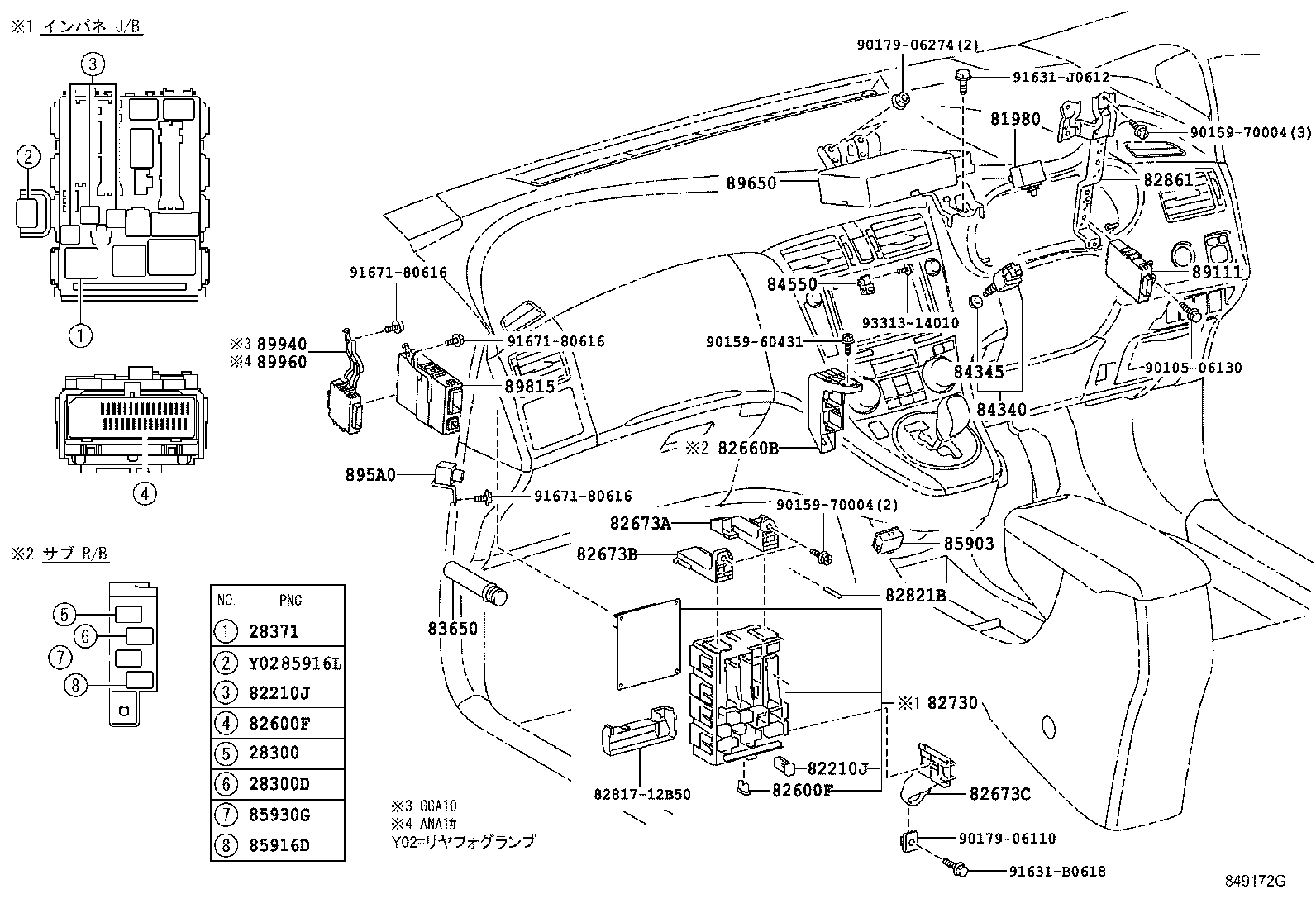

ILLUST NO. 4 OF 8(0709- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE,2GRFE..ANA1#,GGA10..CBU |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
2AZFE,2GRFE..ANA1#,GGA10..CBU |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
2AZFE,2GRFE..ANA1#,GGA10..CBU |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ANA1#,GGA10..CBU |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
ANA1#,GGA10..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ANA1#,GGA10..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
ANA1#,GGA10..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ANA1#,GGA10..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ANA1#,GGA10..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
ANA1#,GGA10..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ANA1#,GGA10..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
ANA1#,GGA10..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ANA1#,GGA10..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
ANA1#,GGA10..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ANA1#,GGA10..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
ANA1#,GGA10..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ANA1#,GGA10..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
ANA1#,GGA10..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ANA1#,GGA10..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
ANA1#,GGA10..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
ANA1#,GGA10..CBU |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12200 |
ANA1#,GGA10..CBU |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12210 |
ANA1#,GGA10..CBU |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12220 |
ANA1#,GGA10..CBU |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-72020 |
ANA1#,GGA10..CBU |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
ANA1#,GGA10..CBU |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12010 |
ANA1#,GGA10..CBU |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ANA1#,GGA10..CBU |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ANA1#,GGA10..CBU |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ANA1#,GGA10..CBU |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ANA1#,GGA10..CBU |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52020 |
ANA1#,GGA10..CBU |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ANA1#,GGA10..CBU |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ANA1#,GGA10..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ANA1#,GGA10..CBU |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-72010 |
ANA10..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 89111-72010 |
ANA10..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-72020 |
ANA1#,GGA10..CBU |
1 | ||
| 895A0-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-72040 |
ANA1#,GGA10..CBU JTEKT/DENSO |
1 | ||
| 89650-72010 |
ANA1#,GGA10..CBU JTEKT/DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-72010 |
ANA10..240 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 82817-12B50 | ||||
| 90105-06130 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91631-B0618 | ||||
| 91631-J0612 | ||||
| 91671-80616 | ||||
| 93313-14010 | ||||

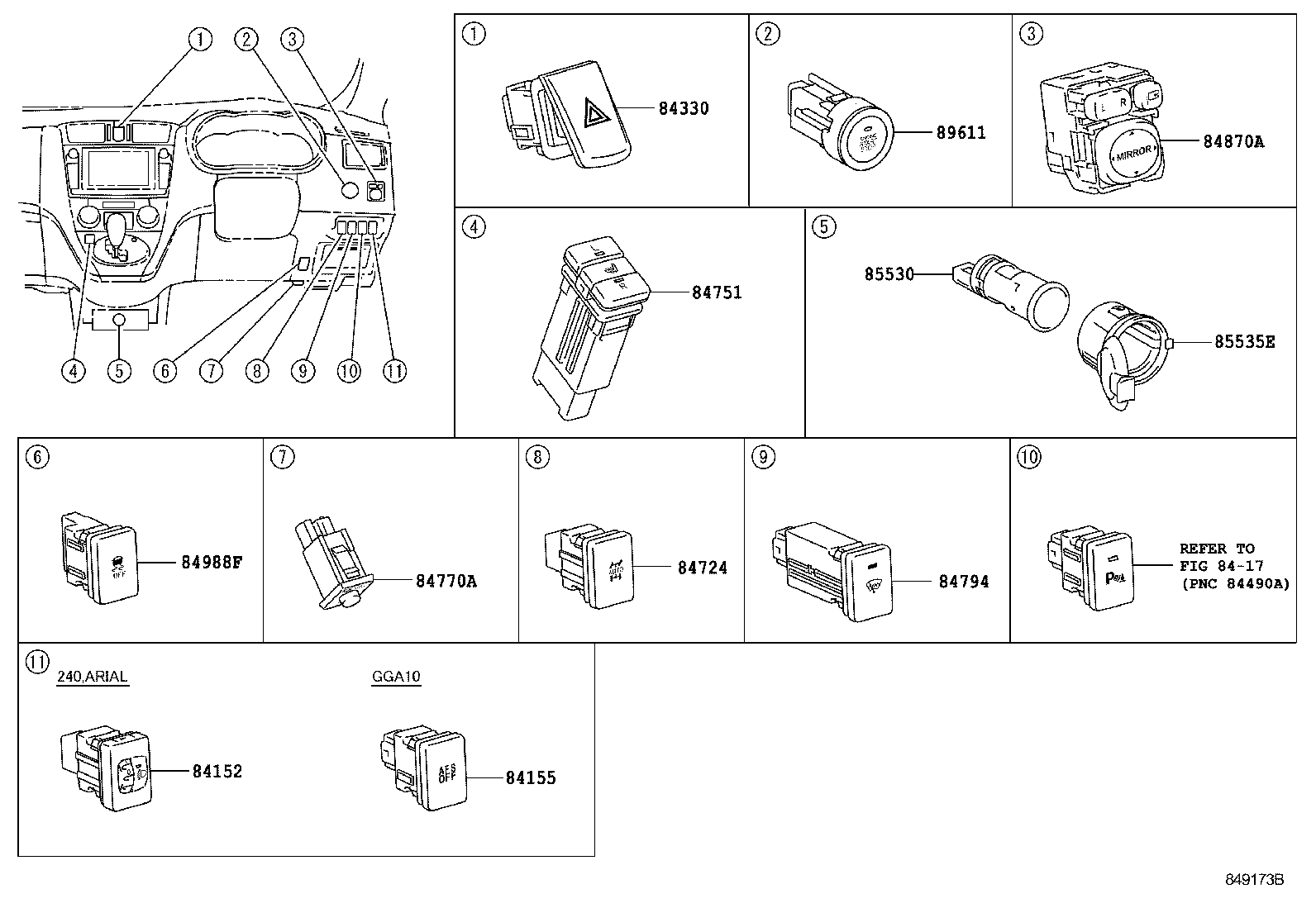

ILLUST NO. 5 OF 8(0709- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
ANA1#..240 |
1 | ||
| 84152-52100 |
ANA1#..240 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52010 |
ANA1#,GGA10..CBU 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
ANA1#,GGA10..CBU |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-48070 |
ANA1#,GGA10..CBU |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ANA1#,GGA10..CBU |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-68010 |
ANA1#,GGA10..CBU |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52011 |
ANA1#,GGA10..CBU |
1 | ||
| 89611-52010 |
ANA1#,GGA10..CBU |
1 | ||
| 89611-52012 |
ANA1#,GGA10..CBU |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

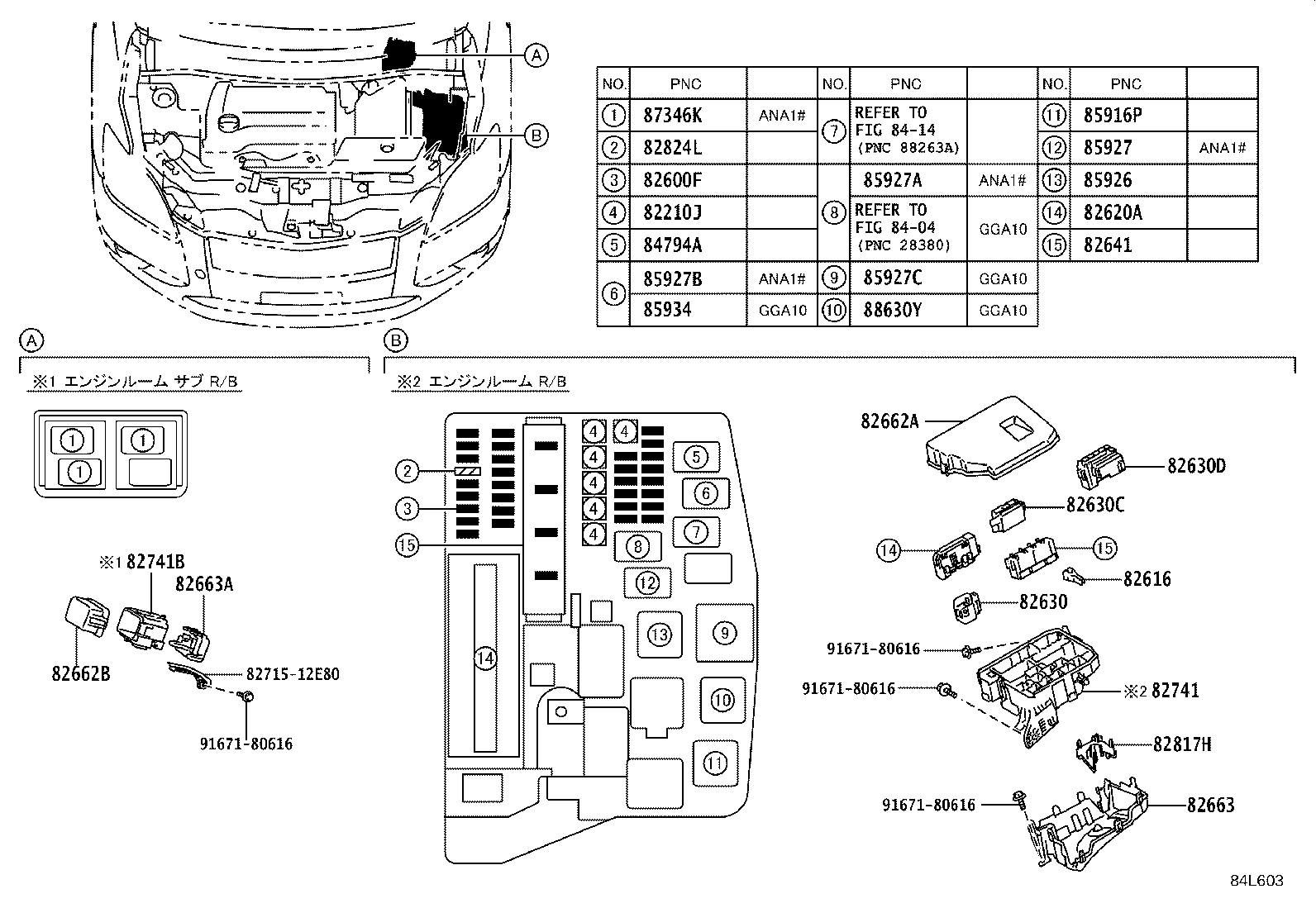

ILLUST NO. 3 OF 8(0709- )
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
ANA1#,GGA10..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ANA1#,GGA10..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ANA1#,GGA10..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
ANA1#,GGA10..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ANA1#,GGA10..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
ANA1#,GGA10..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ANA1#,GGA10..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
ANA1#,GGA10..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ANA1#,GGA10..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
ANA1#..CBU |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
ANA1#,GGA10..CBU |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12020 |
ANA1#,GGA10..CBU |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-12030 |
ANA1#,GGA10..CBU |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ANA1#,GGA10..CBU |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-72010 |
ANA1#..240 |
1 | ||
| 82662-72020 |
ANA10..240 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82662-72020 |
ANA10..240 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 82662-72020 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82662-72020 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-72020 |
ANA10..240 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82662-72020 |
ANA1#..240 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-72020 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82662-72020 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12280 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82662-12280 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82662-12280 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 82662-12280 |
ANA10..CBU 寒冷地仕様 |
1 | ||
| 82662-12280 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12060 |
ANA1#,GGA10..CBU |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82663-12070 |
ANA10..CBU 寒冷地仕様 |
1 | ||
| 82663-12070 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82663-12070 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-12070 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12070 |
ANA1#,GGA10..CBU |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12080 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82741-12080 |
ANA10..CBU 寒冷地仕様 |
1 | ||
| 82741-12080 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-12080 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 82741-12080 |
ANA10..240 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12A80 |
ANA1#,GGA10..CBU |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ANA1#,GGA10..CBU |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
ANA1#,GGA10..CBU 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ANA1#,GGA10..CBU |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ANA1#,GGA10..CBU |
1 | ||
| 90987-02025 |
ANA1#,GGA10..CBU |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ANA1#..CBU |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ANA1#..CBU |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ANA1#..CBU |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
ANA10..CBU 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 82715-12E80 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
