ANA10-AWXNK (2007)
Toyota Mark X Zio
Production
Sep 2007
-
Feb 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )

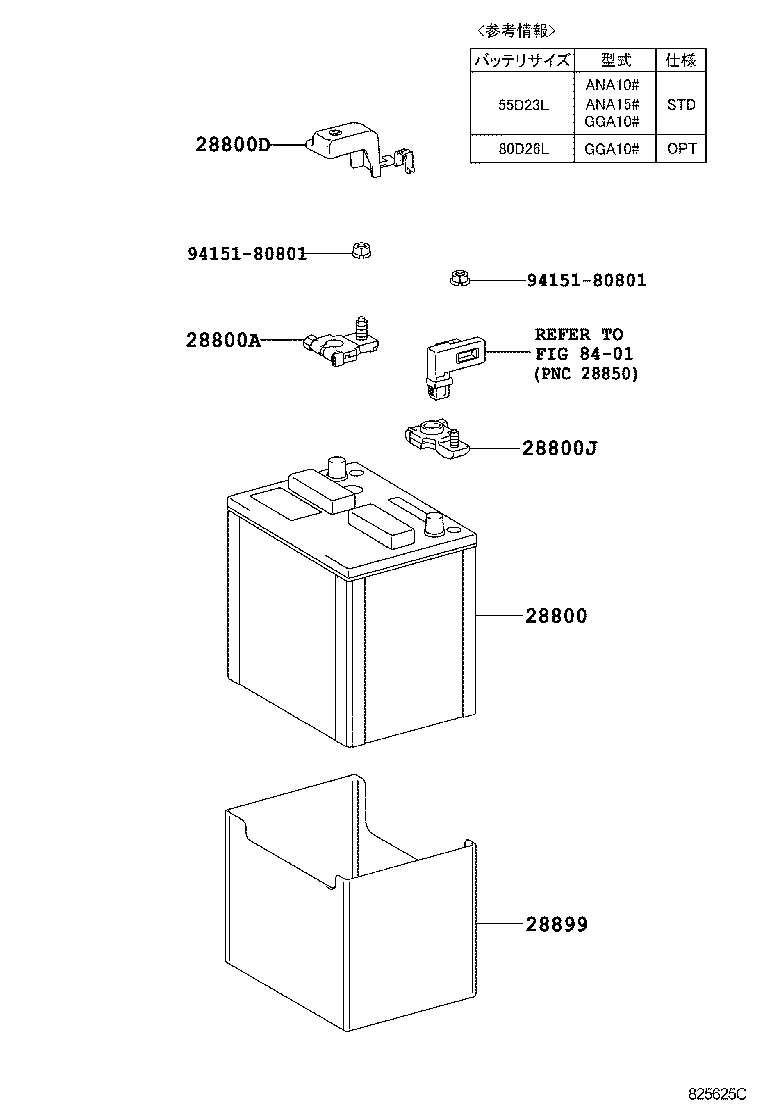

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-47030 |
2AZFE..ANA10..CBU Q−55 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05054 |
2AZFE,2GRFE..ANA1#,GGA10 |
1 | ||
| 90982-05061 |
2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-48020 |
2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06070 |
2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-28020 |
2AZFE,2GRFE..ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
