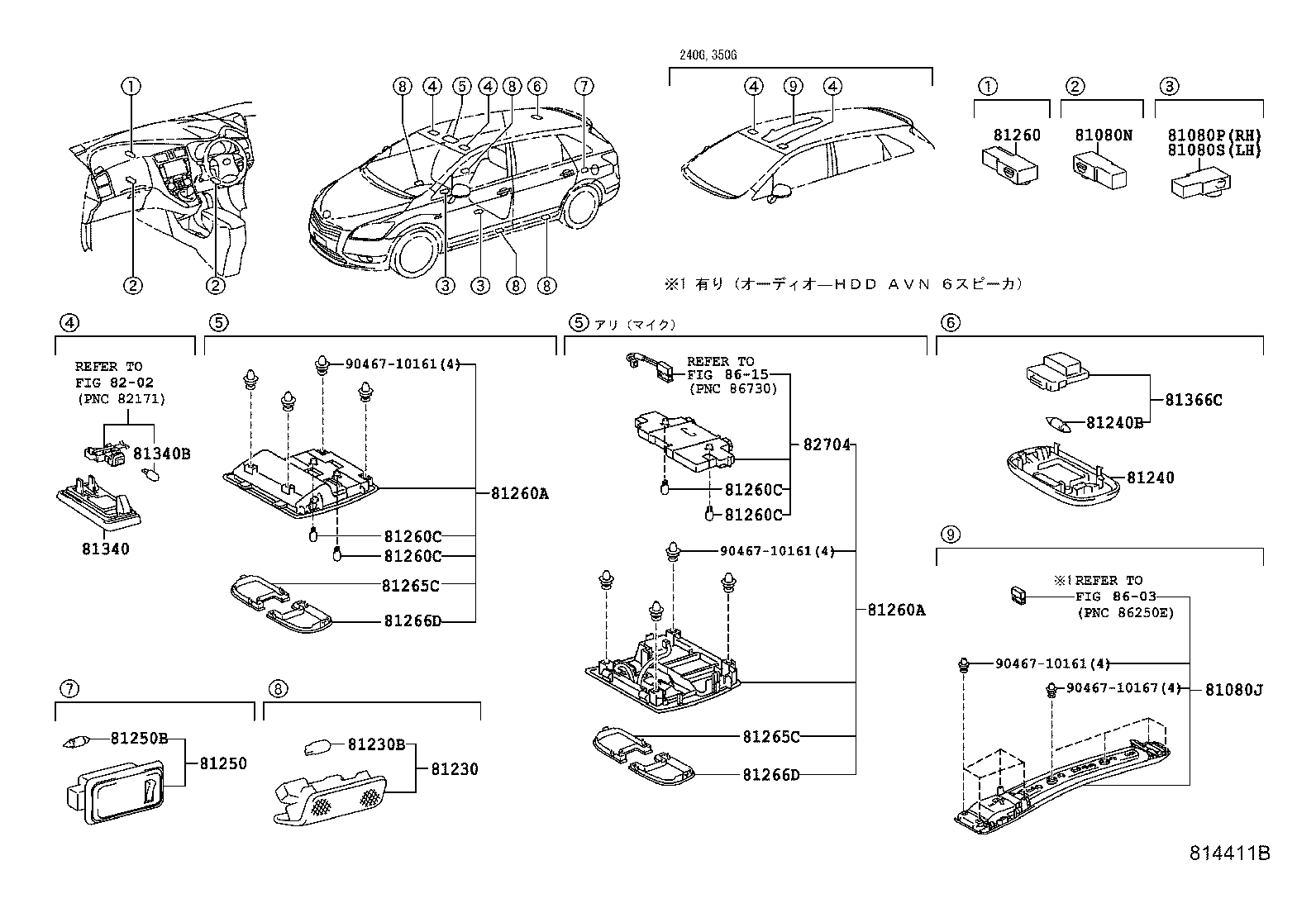

ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080N - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-22040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 81080-30010 |
ANA1#,GGA10 |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-47010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
ANA1#,GGA10..240,240G,350G,ARIAL 12V 5W |
4 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-52040B0 |
ANA1#..240,ARIAL GRAY,TRIM1#,2#,4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ANA1#..240,ARIAL 12V 8W |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-48010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
ANA1#,GGA10..240,240G,350G,ARIAL 12V 5W |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-22040 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-42050B0 |
ANA1#..(240,240F)..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 81260-42051B0 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-42010B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,4# |
1 | ||
| 81260-42051B0 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ,GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-42011B1 |
ANA1#..240,ARIAL GRAY,TRIM1#,2#,4# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-42050B0 |
ANA1#..(240,240F)..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 81260-42051B0 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-42010B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,4# |
1 | ||
| 81260-42051B0 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ,GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-42011B1 |
ANA1#..240,ARIAL GRAY,TRIM1#,2#,4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ANA1#..240,ARIAL 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ANA1#..240,ARIAL 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ANA1#..240,ARIAL 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ANA1#..240,ARIAL 12V 8W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-42010 |
ANA1#..240,ARIAL |
1 | ||
| 81265-42020 |
ANA1#..240,240F,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 81265-42020 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-42010 |
ANA1#..240,ARIAL |
1 | ||
| 81265-42020 |
ANA1#..240,240F,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 81265-42020 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-42020 |
ANA1#..240,240F,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 81266-42020 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 81266-42010 |
ANA1#..240,ARIAL |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-42020 |
ANA1#..240,240F,ARIAL ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 81266-42020 |
ANA1#..240,ARIAL ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 81266-42010 |
ANA1#..240,ARIAL |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100B1 |
ANA1#..240,ARIAL GRAY,TRIM1#,2#,4# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
ANA1#,GGA10..240,240G,350G,ARIAL 12V 8W |
2 | ||
| 81366C - BASE, ROOM LAMP SWITCH | ||||
| 81366-68010 |
ANA1#..(240,240F,ARIAL)..CBU |
1 | ||
| 82704 - BLOCK, OVERHEAD JUNCTION | ||||
| 82704-42110B0 |
ANA1#..240 ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,GRAY,TRIM1#,2#,4# |
1 | ||
| 82704-42110B0 |
ANA1#..240 ｵｰﾃﾞｨｵ−ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ内蔵HDDﾅﾋﾞｹﾞｰｼｮﾝ,GRAY,TRIM1#,2#,4# |
1 | ||
| 82704-42030B0 |
ANA1#..(240,240F)..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8603 | ||||
| 8615 | ||||
