ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

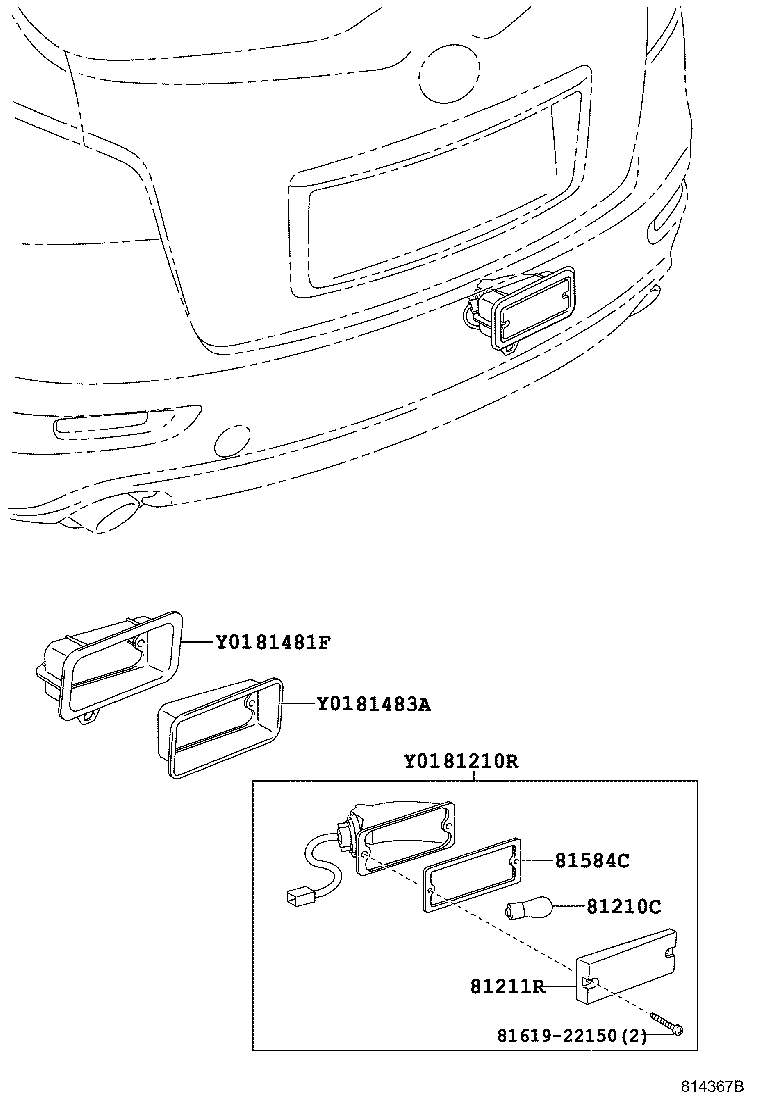

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81481F 81483A 81584C 8161922150
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

ANA1#,GGA10..240,240G,350G,ARIAL

12V 21W,寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81210R - LAMP ASSY, REAR FOG
81480-52020

ANA1#,GGA10..240,240G,350G,ARIAL

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81211R - LENS, REAR FOG LAMP
81581-52060

ANA1#,GGA10..CBU

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81481F - BRACKET, FOG LAMP, RH
81481-72010

ANA1#,GGA10..240,240G,350G,ARIAL

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81483A - PROTECTOR, FOG LAMP
81483-72010

ANA1#,GGA10..240,240G,350G,ARIAL

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81584C - GASKET, REAR FOG LAMP
81584-20250

ANA1#,GGA10..240,240G,350G,ARIAL

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
Common parts
81619-22150
