ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

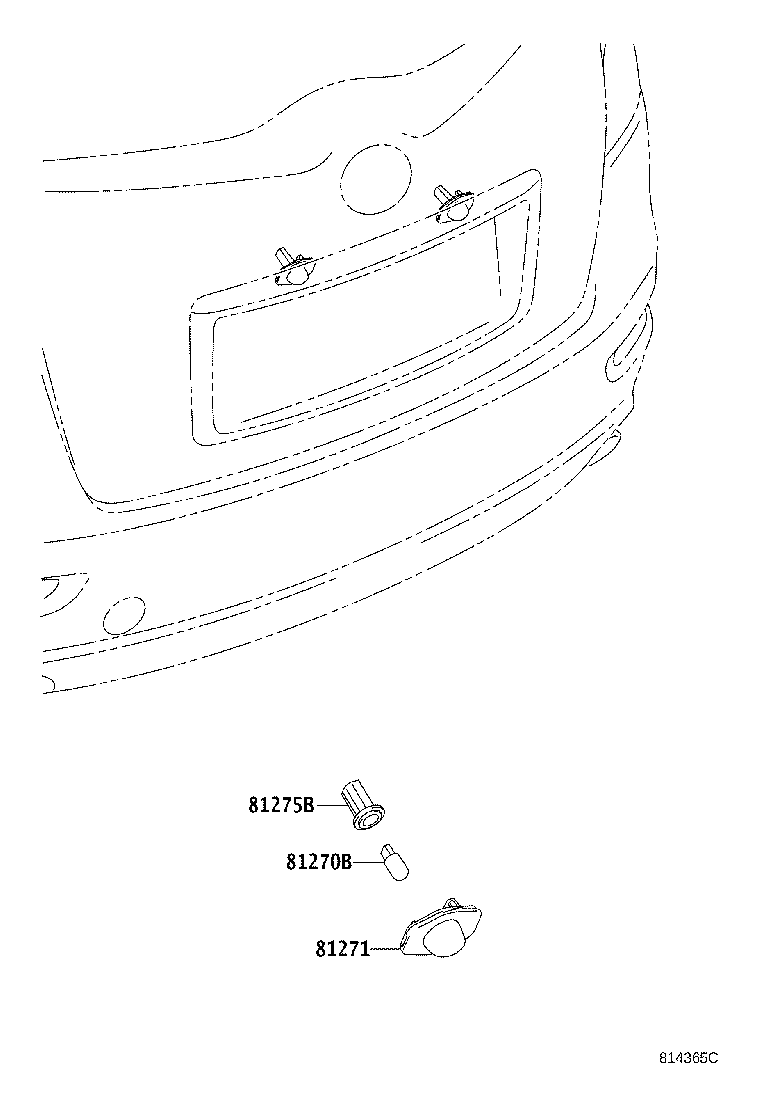

Click highlighted areas on diagram

diagram 81270B 81271 81275B
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ANA1#,GGA10..240,240G,350G,ARIAL

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-72010

ANA1#,GGA10

 2
81271-72011

ANA1#,GGA10..240,240G,350G,ARIAL

 2
81275B - SOCKET PLUG, LICENSE PLATE LAMP
81275-12520

ANA1#,GGA10..240,240G,350G,ARIAL

 2
