ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

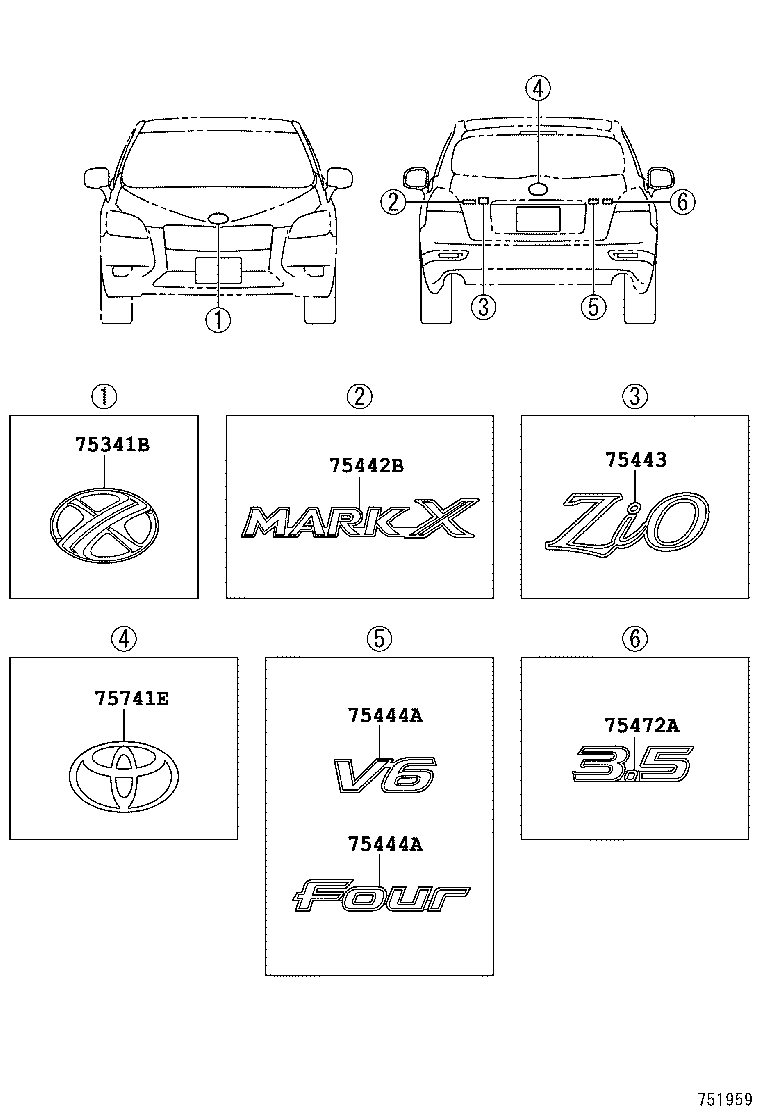

Click highlighted areas on diagram

diagram 75341B 75442B 75443 75444A 75444A 75472A 75741E
Part # Description Qty Price
75341B - PLATE, HOOD NAME
75341-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
75442B - PLATE, BACK DOOR NAME, NO.2
75442-72010

ANA1#,GGA10..240,240G,350G,ARIAL

MARK X

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-72010

ANA1#,GGA10..240,240G,350G,ARIAL

ZIO

 1
75741E - EMBLEM, SYMBOL
90975-02086

ANA1#,GGA10..240,240G,350G,ARIAL

 1
