ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

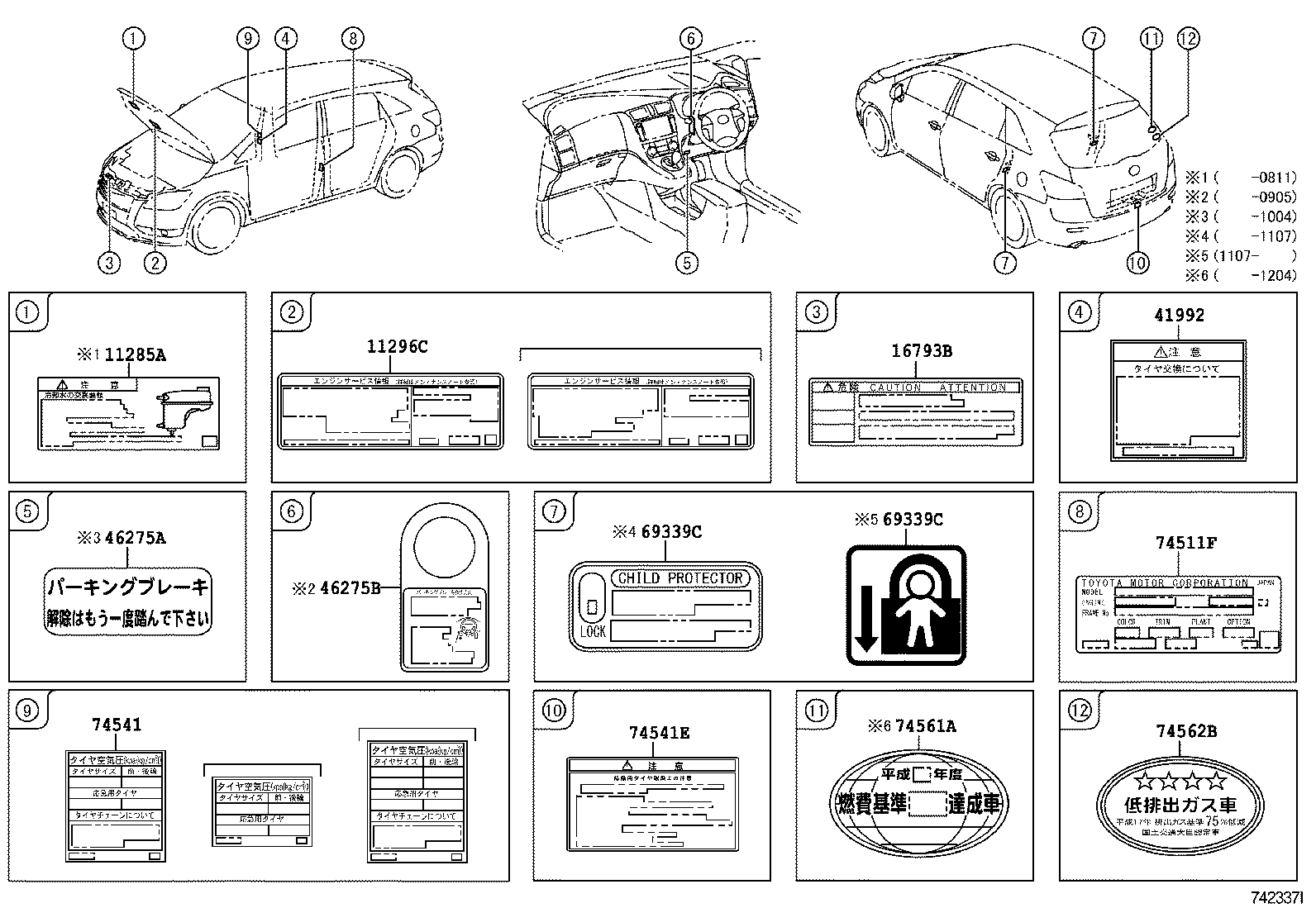

ILLUST NO. 1 OF 3(0709- )

Click highlighted areas on diagram

diagram 11285A 11296C 16793B 41992 46275A 46275B 69339C 69339C 74511F 74541 74541E 74561A 74562B
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-22090

2AZFE,2GRFE..ANA1#,GGA10..CBU

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-28050

2AZFE..ANA1#..CBU

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-46010

2AZFE,2GRFE..ANA1#,GGA10..CBU

 1
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-22010B0

ANA1#,GGA10..CBU

GRAY

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

ANA1#,GGA10..CBU

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

ANA1#,GGA10..CBU

 2
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

ANA1#,GGA10..CBU

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

ANA1#,GGA10..CBU

*111

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-33640

ANA10..(240,240F)..CBU

 1
42661-22A20

ANA10..(240,240F)..CBU

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060

ANA1#,GGA10..CBU

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52040

ANA10..CBU

平成22年度 燃費基準+20%達成車

 1
74561-28020

ANA10..CBU

平成22年度 燃費基準+25%達成車,指定自動車適合−排ｶﾞｽ検査証

 1
74561-28020

ANA10..CBU

平成22年度 燃費基準+25%達成車

 1
74561-52040

ANA10..CBU

指定自動車適合−排ｶﾞｽ検査証

 1
74562B - LABEL, EMISSION INFORMATION
74562-47010

ANA1#,GGA10..CBU

 1

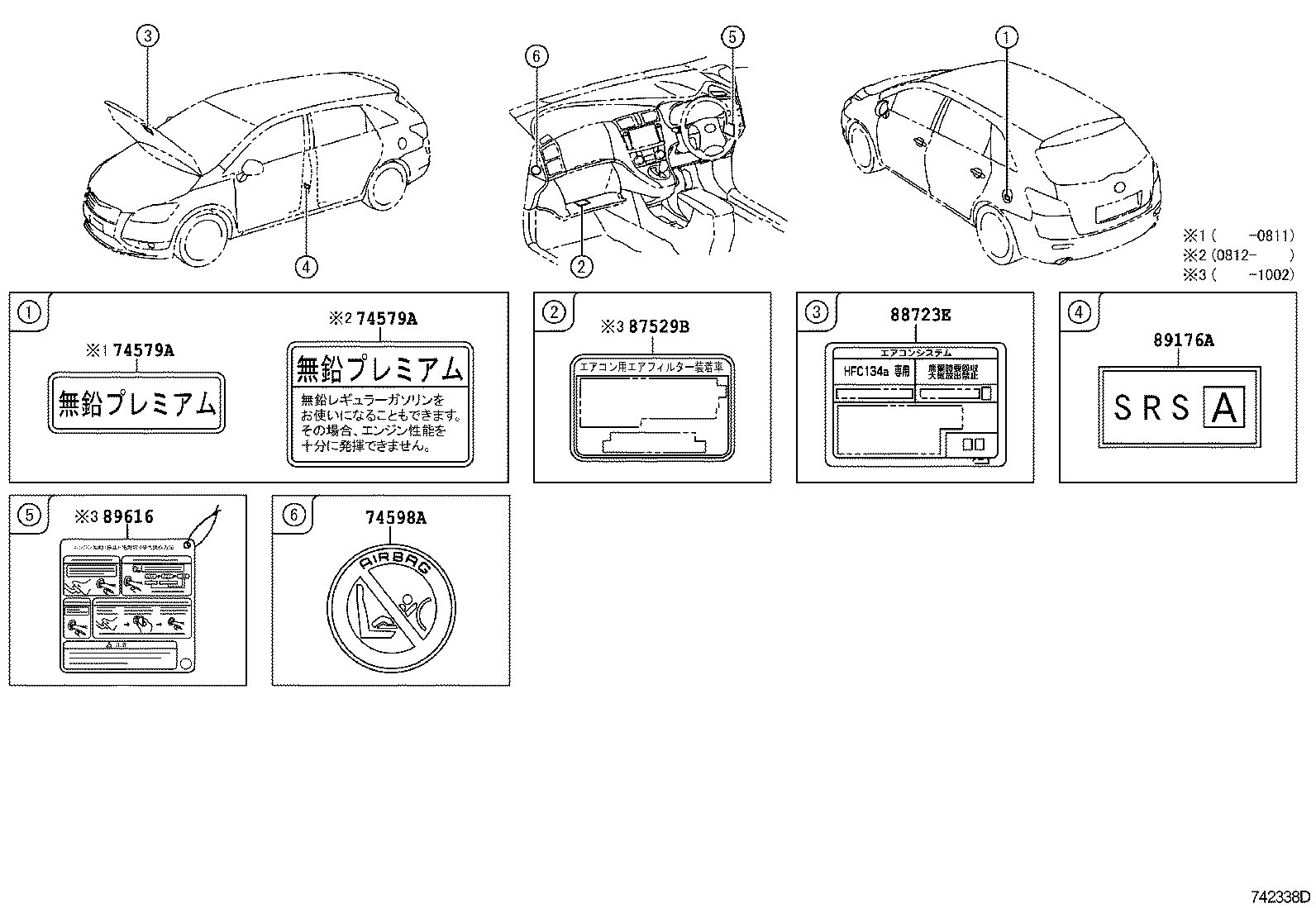

ILLUST NO. 2 OF 3(0709- )

Click highlighted areas on diagram

diagram 74579A 74579A 74598A 87529B 88723E 89176A 89616
Part # Description Qty Price
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

ANA1#,GGA10..CBU

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

ANA1#,GGA10..CBU

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-21020

ANA1#..CBU

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

ANA1#,GGA10..CBU

 1
89616 - LABEL, PUSH START INFORMATION
89616-52010

ANA1#,GGA10..CBU

 1
