ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

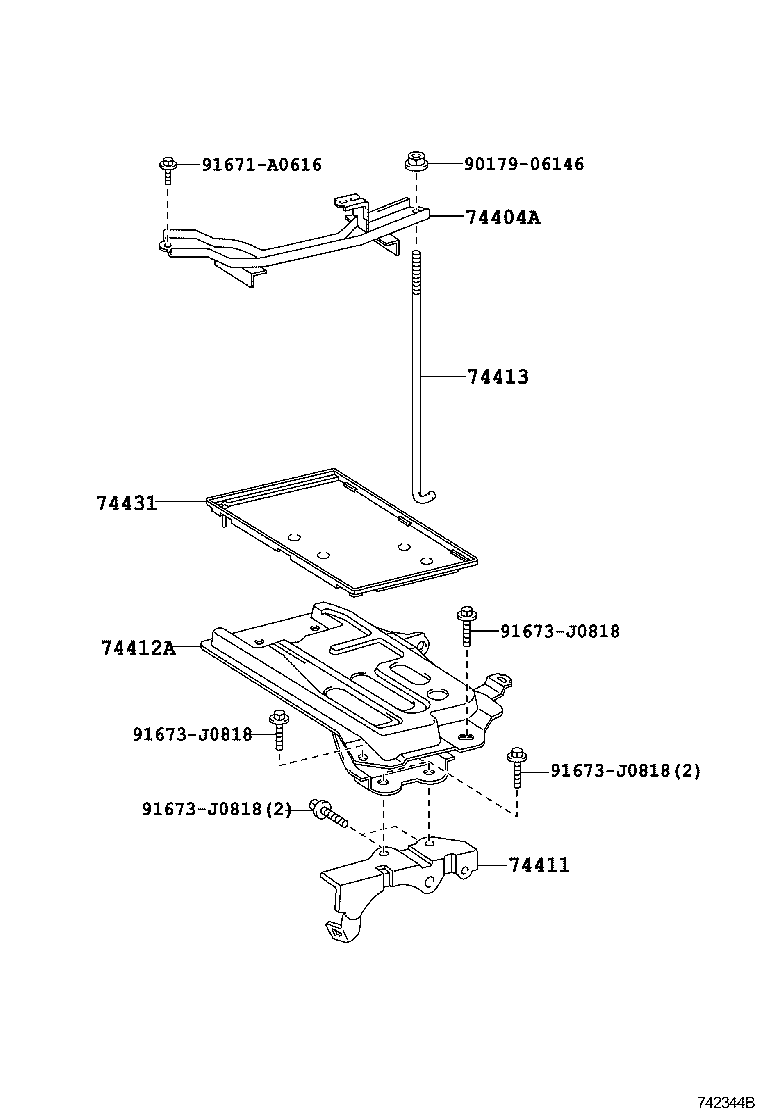

Click highlighted areas on diagram

diagram 74404A 74411 74412A 74413 74431 9017906146 91671A0616 91673J0818 91673J0818 91673J0818 91673J0818
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-12460

ANA1#,GGA10..240,240G,350G,ARIAL

 1
74411 - CARRIER, BATTERY
74401-12010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
74412A - CARRIER, BATTERY, NO.2
74410-12020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
74413 - BOLT, BATTERY CLAMP
74451-10060

ANA1#,GGA10..240,240G,350G,ARIAL

 1
74431 - TRAY, BATTERY
74431-12120

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90179-06146
91671-A0616
91673-J0818
