ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

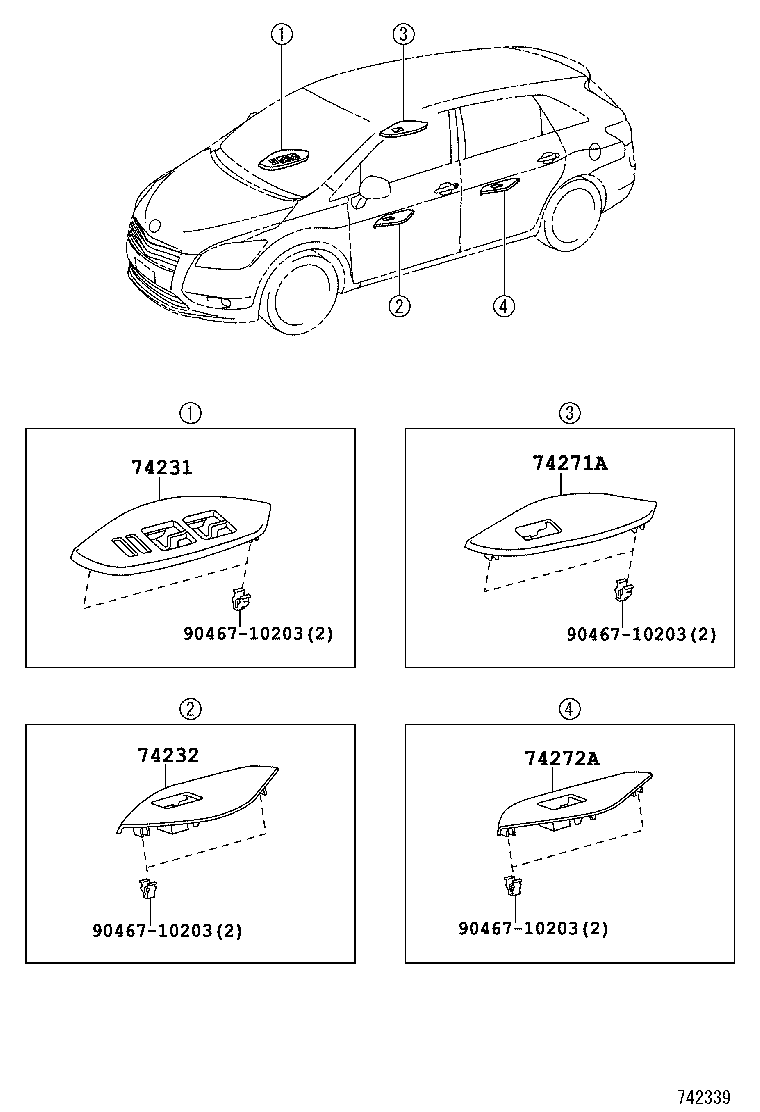

ILLUST NO. 1 OF 2(0709- )

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ

diagram 74231 74232 74271A 74272A 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-72010B0

ANA1#..240,ARIAL

MD.SILVER,TRIM15,20

 1
74231-72010

ANA1#,GGA10..CBU

 1
74231-72010B0

ANA1#..240

240“E−Selection” *(Z),MD.SILVER,TRIM15,2#

 1
74231-72010C0

ANA1#..240

BLACK MICA,TRIM15,20,4#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-72010B0

ANA1#..240

240“E−Selection” *(Z),MD.SILVER,TRIM15,2#

 1
74232-72010B0

ANA1#..240,ARIAL

MD.SILVER,TRIM15,20

 1
74232-72010

ANA1#,GGA10..CBU

 1
74232-72010C0

ANA1#..240

BLACK MICA,TRIM15,20,4#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-72010B0

ANA1#..240,ARIAL

MD.SILVER,TRIM15,20

 1
74271-72010B0

ANA1#..240

240“E−Selection” *(Z),MD.SILVER,TRIM15,2#

 1
74271-72010

ANA1#,GGA10..CBU

 1
74271-72010C0

ANA1#..240

BLACK MICA,TRIM15,20,4#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-72010B0

ANA1#..240,ARIAL

MD.SILVER,TRIM15,20

 1
74272-72010

ANA1#,GGA10..CBU

 1
74272-72010C0

ANA1#..240

BLACK MICA,TRIM15,20,4#

 1
74272-72010B0

ANA1#..240

240“E−Selection” *(Z),MD.SILVER,TRIM15,2#

 1
Common parts
90467-10203

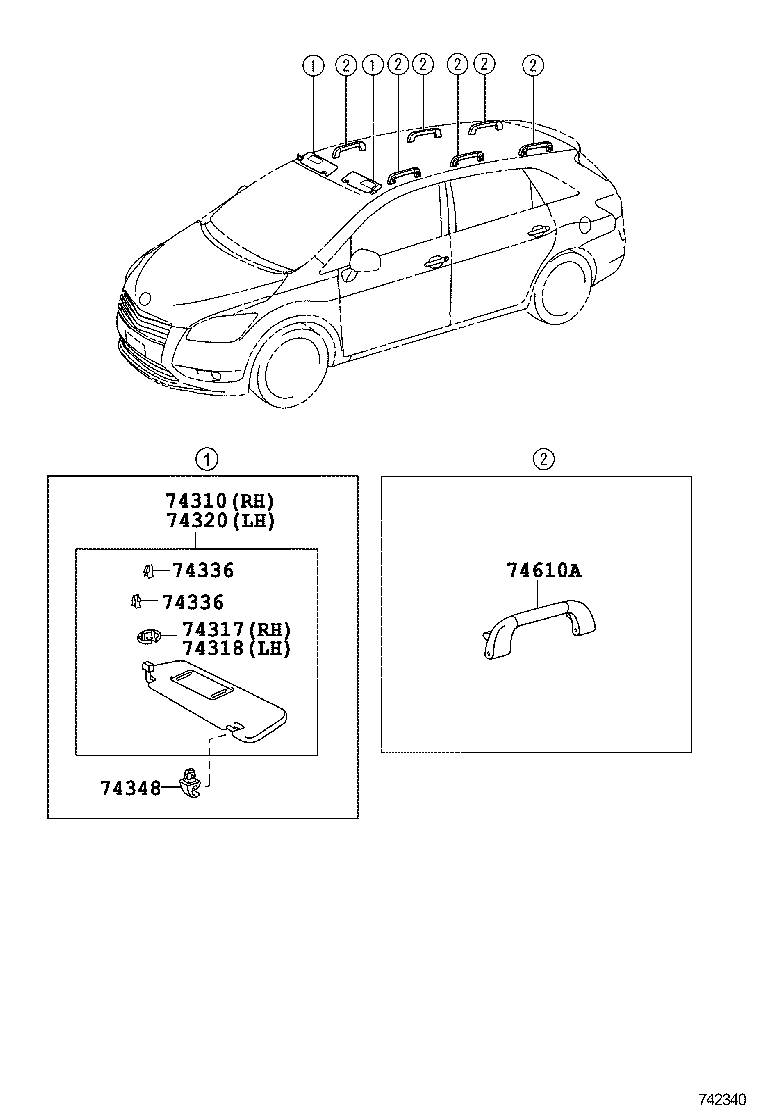

ILLUST NO. 2 OF 2(0709- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 74310 74317 74318 74320 74336 74336 74348 74610A
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-72010B1

ANA1#..240,ARIAL

GRAY,TRIM1#,2#,4#

 1
74317 - COVER, VISOR BRACKET, RH
74317-52010B0

ANA1#..240,ARIAL

GRAY,TRIM1#,2#,4#

 1
74318 - COVER, VISOR BRACKET, LH
74318-52020B0

ANA1#..240,ARIAL

GRAY,TRIM1#,2#,4#

 1
74320 - VISOR ASSY, LH
74320-72010B1

ANA1#..240,ARIAL

GRAY,TRIM1#,2#,4#

 1
74336 - CLIP, VISOR ARM SET
74336-52010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
74336 - CLIP, VISOR ARM SET
74336-52010

ANA1#,GGA10..240,240G,350G,ARIAL

 4
74348 - HOLDER, VISOR
74348-33040B0

ANA1#..240,ARIAL

GRAY,TRIM1#,2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-30240B1

ANA1#..240,ARIAL

GRAY,TRIM1#,2#,4#

 6
