Toyota Mark x zio ANA10 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
JP
MARK X ZIO
ANA10-AWXNK (2007)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0709- )

Click highlighted areas on diagram

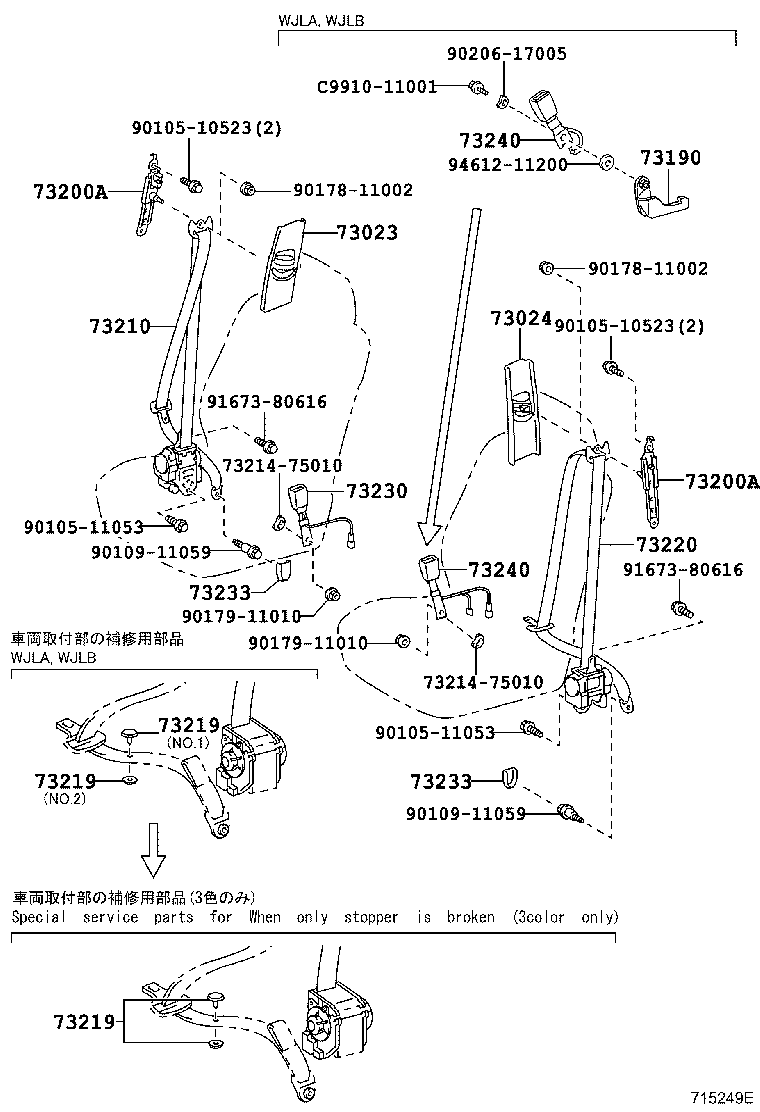

ﾌﾛﾝﾄｼｰﾄ

Part #	Description	Period	Qty
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-53010B1	ANA1#..240,ARIAL GRAY,TRIM1#,2#,4#	09/2007 - 02/2011	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-53010B1	ANA1#..240,ARIAL GRAY,TRIM1#,2#,4#	09/2007 - 02/2011	1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010	ANA1#,GGA10..CBU	09/2007 - 02/2011	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010	ANA1#,GGA10..CBU	09/2007 - 02/2011	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-72010B1	ANA1#,GGA10..CBU GRAY,TRIM4#	09/2007 - 01/2009	1
73210-72010B0	ANA1#,GGA10..CBU GRAY,TRIM1#	09/2007 - 01/2009	1
73210-72011B1	ANA1#,GGA10..CBU GRAY,TRIM4#	02/2009 - 02/2011	1
73210-72011B3	ANA1#..240,ARIAL MD.GRAY,TRIM1#,2#	02/2009 - 02/2011	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-72010B0	ANA1#,GGA10..CBU GRAY,TRIM1#	09/2007 - 01/2009	1
73220-72010B1	ANA1#,GGA10..CBU GRAY,TRIM4#	09/2007 - 01/2009	1
73220-72011B3	ANA1#..240,ARIAL MD.GRAY,TRIM1#,2#	02/2009 - 02/2011	1
73220-72011B1	ANA1#,GGA10..CBU GRAY,TRIM4#	02/2009 - 02/2011	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73230-72010E0	ANA1#..(240,240F,ARIAL)..CBU PLUM BROWN,TRIM4#	09/2007 - 02/2011	1
73230-72010C0	ANA1#..240,ARIAL BLACK,TRIM1#,2#	02/2009 - 02/2011	1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0	ANA1#,GGA10..CBU BLACK	09/2007 - 02/2011	2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0	ANA1#,GGA10..CBU BLACK	09/2007 - 02/2011	2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73240-72010C0	ANA1#..240,ARIAL BLACK,TRIM1#,2#	02/2009 - 02/2011	1
73240-72010E0	ANA1#..(240,240F,ARIAL)..CBU PLUM BROWN,TRIM4#	09/2007 - 02/2011	1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73240-72010C0	ANA1#..240,ARIAL BLACK,TRIM1#,2#	02/2009 - 02/2011	1
73240-72010E0	ANA1#..(240,240F,ARIAL)..CBU PLUM BROWN,TRIM4#	09/2007 - 02/2011	1
Common parts
73214-75010
90105-10523
90105-11053
90109-11059
90178-11002
90179-11010
90206-17005
91673-80616
94612-11200
C9910-11001

(0709- )240,240F ; (0807- )240G,ARIAL

Click highlighted areas on diagram

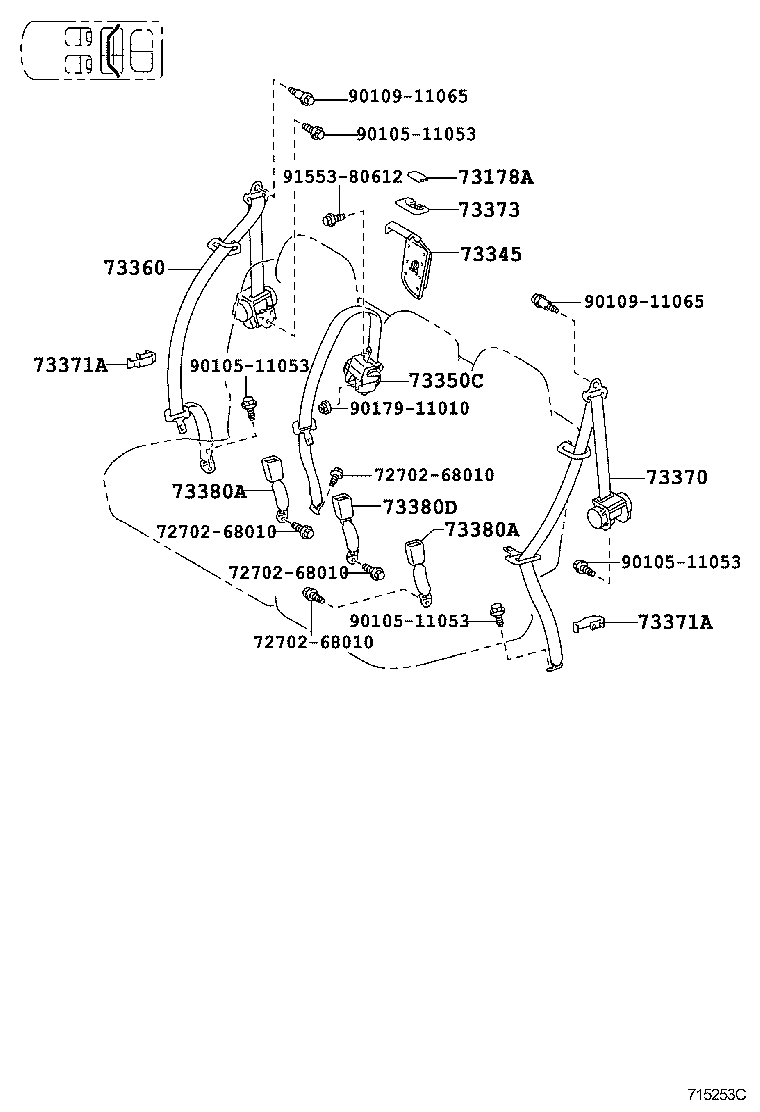

ﾘﾔ NO.1ｼｰﾄ(6:4ﾌﾞﾝｶﾂｼｰﾄ)

Part #	Description	Period	Qty
73178A - CAP, SEAT BELT ANCHOR COVER
73178-72010B2	ANA1#..240 DK.GRAY,TRIM15,2#	02/2009 - 08/2010	1
73178-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73178-72010E0	ANA1#..(240,240F)..CBU PLUM,TRIM4#	09/2007 - 02/2011	1
73178-72010B1	ANA1#..240 MD.GRAY,TRIM15	02/2009 - 08/2010	1
73178-72010B1	ANA1#..240 MD.GRAY,TRIM1#	08/2010 - 02/2011	1
73178-72010B2	ANA1#..240 DK.GRAY,TRIM2#	08/2010 - 02/2011	1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73345-72010	ANA1#..(240,240F)..CBU	09/2007 - 02/2011	1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73350-72010C0	ANA1#..240 BLACK,TRIM1#,2#	02/2009 - 08/2010	1
73350-72020E0	ANA1#..(240,240F)..CBU PLUM/BLACK,TRIM4#	08/2010 - 02/2011	1
73350-72020C0	ANA1#..240 BLACK,TRIM1#,2#	08/2010 - 02/2011	1
73350-72010E0	ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#	09/2007 - 08/2010	1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-72010B1	ANA1#,GGA10..CBU GRAY,TRIM4#	09/2007 - 08/2010	1
73360-72010B0	ANA1#,GGA10..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73360-72010B3	ANA1#..240,ARIAL MD.GRAY,TRIM1#,2#	02/2009 - 08/2010	1
73360-72020B1	ANA1#,GGA10..(240,240F,240G,350G)..CBU GRAY/PLUM/BLACK,TRIM4#	08/2010 - 02/2011	1
73360-72020B0	ANA1#..240,ARIAL GRAY/BLACK,TRIM1#,2#	08/2010 - 02/2011	1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-72010B0	ANA1#,GGA10..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73370-72010B3	ANA1#..240,ARIAL MD.GRAY,TRIM1#,2#	02/2009 - 08/2010	1
73370-72010B1	ANA1#,GGA10..CBU GRAY,TRIM4#	09/2007 - 08/2010	1
73370-72020B1	ANA1#,GGA10..(240,240F,240G,350G)..CBU GRAY/PLUM/BLACK,TRIM4#	08/2010 - 02/2011	1
73370-72020B0	ANA1#..240,ARIAL GRAY/BLACK,TRIM1#,2#	08/2010 - 02/2011	1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-42010C0	ANA1#..240 BLACK,TRIM1#,2#,4#	09/2007 - 02/2011	2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-42010C0	ANA1#..240 BLACK,TRIM1#,2#,4#	09/2007 - 02/2011	2
73373 - COVER, REAR SEAT SHOULDER BELT
73373-72010B1	ANA1#..240 MD.GRAY,TRIM15	02/2009 - 08/2010	1
73373-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73373-72010B1	ANA1#..240 MD.GRAY,TRIM1#	08/2010 - 02/2011	1
73373-72010B2	ANA1#..240 DK.GRAY,TRIM2#	08/2010 - 02/2011	1
73373-72010E0	ANA1#..(240,240F)..CBU PLUM,TRIM4#	09/2007 - 02/2011	1
73373-72010B2	ANA1#..240 DK.GRAY,TRIM15,2#	02/2009 - 08/2010	1
73380A - BELT ASSY, REAR SEAT, INNER
73380-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	2
73380-72010C0	ANA1#..240 BLACK,TRIM1#,2#	02/2009 - 02/2011	2
73380-72010E0	ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#	09/2007 - 02/2011	2
73380A - BELT ASSY, REAR SEAT, INNER
73380-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	2
73380-72010C0	ANA1#..240 BLACK,TRIM1#,2#	02/2009 - 02/2011	2
73380-72010E0	ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#	09/2007 - 02/2011	2
73380D - BELT ASSY, REAR SEAT, INNER
73340-72010B0	ANA1#..(240,240F)..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73340-72010C0	ANA1#..240 BLACK,TRIM1#,2#	02/2009 - 02/2011	1
73340-72010E0	ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#	09/2007 - 02/2011	1
Common parts
72702-68010
90105-11053
90109-11065
90179-11010
91553-80612

(0709- )

Click highlighted areas on diagram

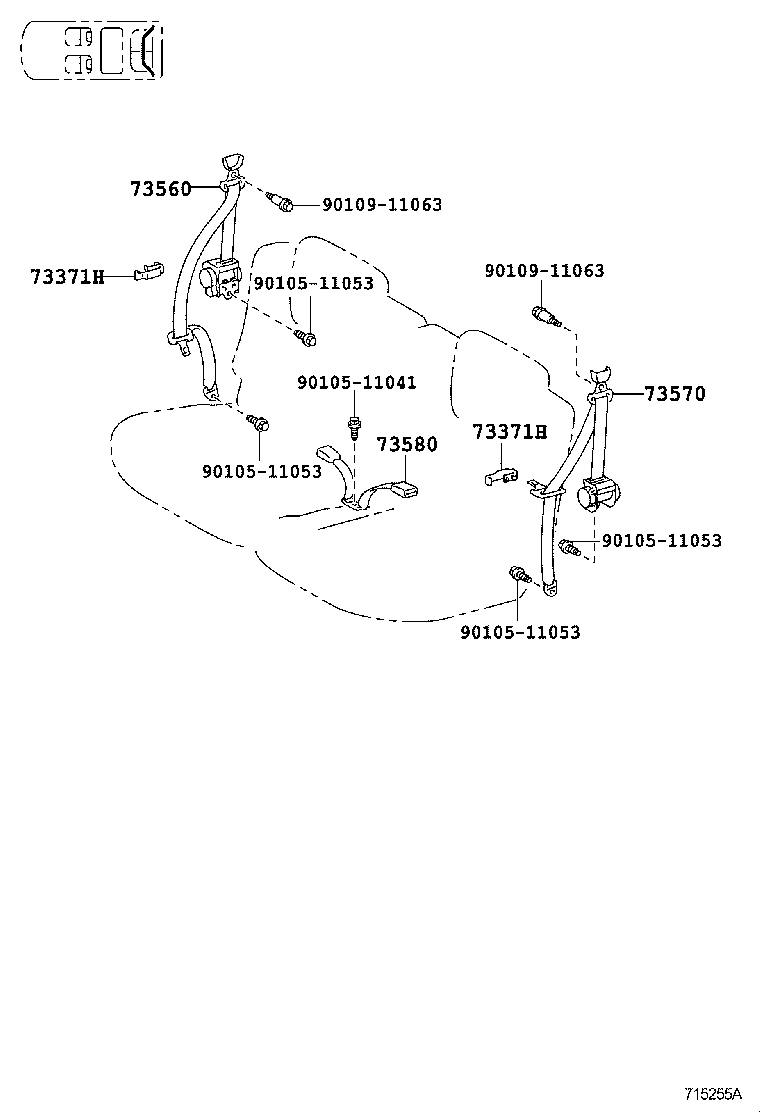

ﾘﾔ NO.2ｼｰﾄ

Part #	Description	Period	Qty
73371H - HANGER, REAR NO.2 SEAT SHOULDER BELT
73371-42010C0	ANA1#..240,ARIAL BLACK,TRIM1#,2#,4#	09/2007 - 02/2011	2
73371H - HANGER, REAR NO.2 SEAT SHOULDER BELT
73371-42010C0	ANA1#..240,ARIAL BLACK,TRIM1#,2#,4#	09/2007 - 02/2011	2
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-72010B1	ANA1#,GGA10..CBU GRAY,TRIM4#	09/2007 - 02/2011	1
73560-72010B0	ANA1#,GGA10..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73560-72010B3	ANA1#..240,ARIAL MD.GRAY,TRIM1#,2#	02/2009 - 02/2011	1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-72010B0	ANA1#,GGA10..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73570-72010B3	ANA1#..240,ARIAL MD.GRAY,TRIM1#,2#	02/2009 - 02/2011	1
73570-72010B1	ANA1#,GGA10..CBU GRAY,TRIM4#	09/2007 - 02/2011	1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-72010C0	ANA1#..240,ARIAL BLACK,TRIM1#,2#	02/2009 - 02/2011	1
73580-72010B0	ANA1#,GGA10..CBU GRAY,TRIM1#	09/2007 - 02/2009	1
73580-72010E0	ANA1#,GGA10..CBU PLUM BROWN,TRIM4#	09/2007 - 02/2011	1
Common parts
90105-11041
90105-11053
90109-11063

ANA10-AWXNK (2007)

(0709- )

(0709- )240,240F ; (0807- )240G,ARIAL

(0709- )
