ANA10-AWXNK (2007)
Toyota Mark X Zio
(0709- )240,240F ; (0807- )240G,ARIAL

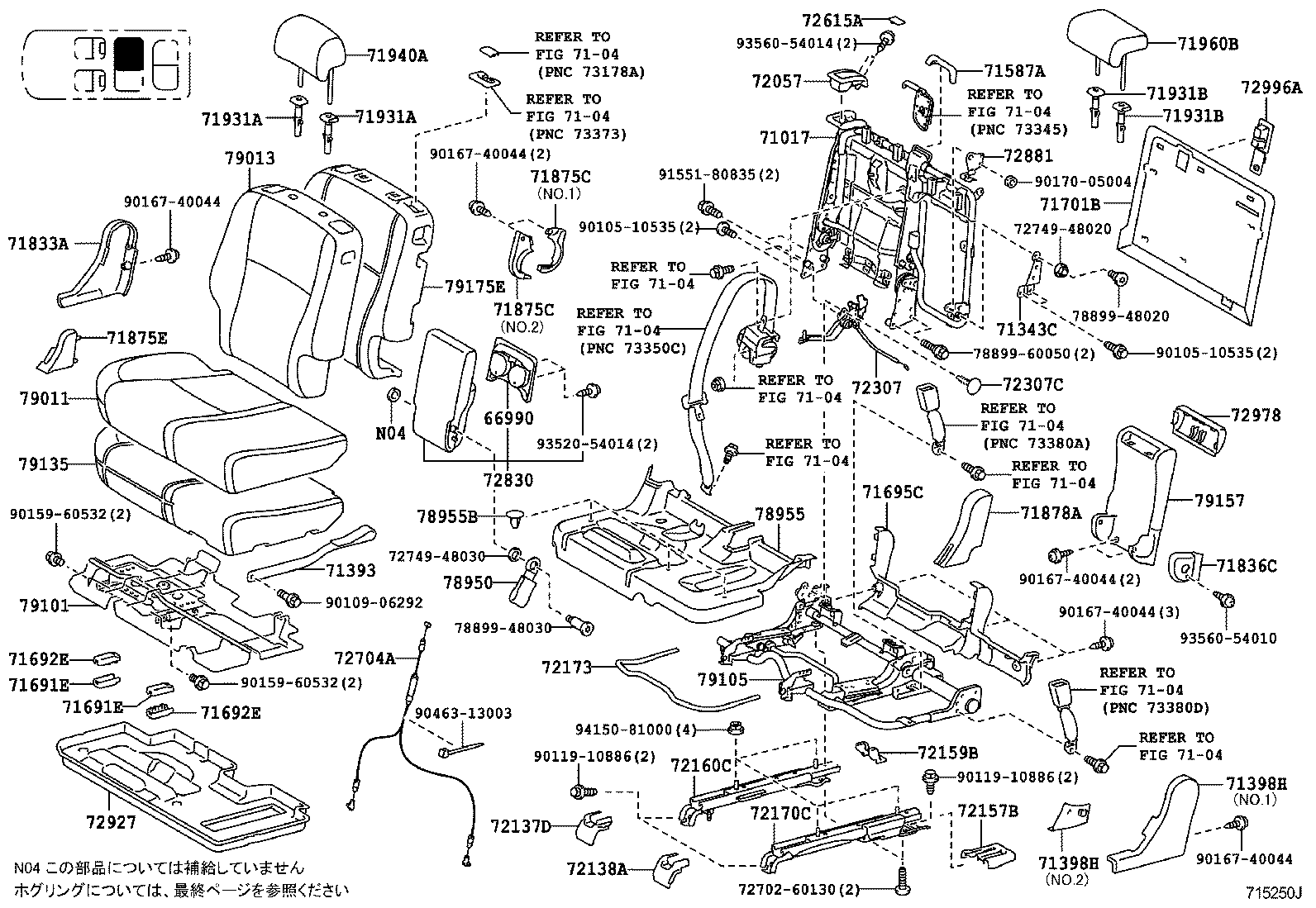

ﾘﾔ NO.1 ｼｰﾄ(RH=6:4ﾌﾞﾝｶﾂ ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-48020B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 66990-48020E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 66990-48020E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 66990-48020P2 |
ANA1#..240 MD.GRAY,TRIM1#,2# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 71343C - HINGE, REAR SEAT BACK, CENTER | ||||
| 71343-72020 |
ANA1#..(240,240F)..CBU |
1 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 71393-72010E0 |
ANA1#..240 PLUM,TRIM4# |
2 | ||
| 71393-72010E0 |
ANA1#..240 PLUM,TRIM40 |
2 | ||
| 71393-72010B1 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71393-72010C0 |
ANA1#..240 BLACK,TRIM15,2#,40 |
2 | ||
| 71393-72010B2 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 71393-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-72020B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.2 |
1 | ||
| 71398-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.1 |
1 | ||
| 71398-72020E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.2 |
1 | ||
| 71398-72010B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.1 |
1 | ||
| 71398-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.1 |
1 | ||
| 71398-72020B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.2 |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-72020B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.2 |
1 | ||
| 71398-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.1 |
1 | ||
| 71398-72020E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.2 |
1 | ||
| 71398-72010B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.1 |
1 | ||
| 71398-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.1 |
1 | ||
| 71398-72020B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.2 |
1 | ||
| 71587A - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71587-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#..240 5人乗り,PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#..240 5人乗り,PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71695-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71695-72010B2 |
ANA1#..240 DK.GRAY,TRIM1#,2# |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71701-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71701-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71701-72010C0 |
ANA1#..240 BLACK,TRIM15,2# |
1 | ||
| 71701-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 71701-72030C0 |
ANA1#..240 5人乗り,BLACK,TRIM2# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71833-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71833-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71836C - MOULDING, REAR SEAT BACK, LH | ||||
| 71836-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71836-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71836-72010B2 |
ANA1#..240 DK.GRAY,TRIM1#,2# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.1 |
2 | ||
| 71875-72020B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.2 |
2 | ||
| 71875-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.1 |
2 | ||
| 71875-72020E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.2 |
2 | ||
| 71875-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.1 |
2 | ||
| 71875-72020B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.2 |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.1 |
2 | ||
| 71875-72020B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.2 |
2 | ||
| 71875-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.1 |
2 | ||
| 71875-72020E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.2 |
2 | ||
| 71875-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.1 |
2 | ||
| 71875-72020B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.2 |
2 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72030E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-72030B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71875-72030B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-72020B2 |
ANA1#..240 DK.GRAY,TRIM1#,2# |
1 | ||
| 71878-72020E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71878-72020B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71955-72010B0 |
ANA1#..(240,240F)..CBU ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-48010E0 |
ANA1#..(240,240F)..CBU ﾛｯｸ無,PLUM BROWN,TRIM4# |
1 | ||
| 71955-72010B1 |
ANA1#..(240,240F)..CBU ﾛｯｸ付,MD.GRAY,TRIM1# |
1 | ||
| 71955-72010E0 |
ANA1#..(240,240F)..CBU ﾛｯｸ付,PLUM,TRIM4# |
1 | ||
| 71956-48010B2 |
ANA1#..(240,240F)..CBU ﾛｯｸ無,MD.GRAY,TRIM1# |
1 | ||
| 71955-72010B2 |
ANA1#..240 ﾛｯｸ付,5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71956-48010B4 |
ANA1#..240 ﾛｯｸ無,5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71956-48010B1 |
ANA1#..(240,240F)..CBU ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71955-72010B2 |
ANA1#..240 ﾛｯｸ付,240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71956-48010B4 |
ANA1#..240 ﾛｯｸ無,240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71955-72010B0 |
ANA1#..(240,240F)..CBU ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-48010E0 |
ANA1#..(240,240F)..CBU ﾛｯｸ無,PLUM BROWN,TRIM4# |
1 | ||
| 71955-72010B1 |
ANA1#..(240,240F)..CBU ﾛｯｸ付,MD.GRAY,TRIM1# |
1 | ||
| 71955-72010E0 |
ANA1#..(240,240F)..CBU ﾛｯｸ付,PLUM,TRIM4# |
1 | ||
| 71956-48010B2 |
ANA1#..(240,240F)..CBU ﾛｯｸ無,MD.GRAY,TRIM1# |
1 | ||
| 71955-72010B2 |
ANA1#..240 ﾛｯｸ付,5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71956-48010B4 |
ANA1#..240 ﾛｯｸ無,5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71956-48010B1 |
ANA1#..(240,240F)..CBU ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71955-72010B2 |
ANA1#..240 ﾛｯｸ付,240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71956-48010B4 |
ANA1#..240 ﾛｯｸ無,240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-72040E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71940-72040B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71940-72090B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-72090B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-72040B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71960-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71960-72010B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
1 | ||
| 71960-72040B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71960-72040B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 72057-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 72057-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72057-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 72057-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-72030C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72137-72040C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH | ||||
| 72137-72050C0 |
ANA1#..240 BLACK,TRIM1#,2#,4# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72137-68020C0 |
ANA1#,GGA10..CBU BLACK |
2 | ||
| 72137-72100 |
ANA1#,GGA10..CBU |
2 | ||
| 72160C - TRACK ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 72160-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72170-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-72010 |
ANA1#,GGA10..CBU |
2 | ||
| 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH | ||||
| 72307-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-48020B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 72615-48020E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72615-48020B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72615-48020B1 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 72615-48020B3 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-72020 |
ANA1#,GGA10..CBU |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 72830-72011E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 72830-72040B0 |
ANA1#..240 240“E−Selection” *(Z),MD.GRAY,TRIM1#,2# |
1 | ||
| 72830-72011B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72830-72040B0 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,2# |
1 | ||
| 72830-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 72830-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-48010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 72927-72010E1 |
ANA1#..(240,240F)..CBU PLUM,TRIM4# |
1 | ||
| 72927-72010C1 |
ANA1#..240 BLACK,TRIM2# |
1 | ||
| 72927-72010B3 |
ANA1#..(240,240F)..CBU MD.GRAY,TRIM1# |
1 | ||
| 72978 - COVER, NO.2 CENTER SEAT BACK | ||||
| 72978-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72978-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 72978-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72978-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 72978-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM,TRIM4# |
2 | ||
| 72996-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 72996-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 72996-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 72996-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-72010E0 |
ANA1#..(240,240F)..CBU PLUM,TRIM4# |
1 | ||
| 78950-72010B1 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 78950-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2# |
1 | ||
| 78950-72010B0 |
ANA1#..(240,240F)..CBU MD.GRAY,TRIM1# |
1 | ||
| 78950-72010C0 |
ANA1#..240 240“E−Selection” *(Z),BLACK,TRIM1#,2# |
1 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 78955-72010B2 |
ANA1#..240 DK.GRAY,TRIM1#,2# |
1 | ||
| 78955-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 78955B - CLIP(FOR REARSEAT UNDER TRAY) | ||||
| 71769-60010B9 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
5 | ||
| 71769-60010E6 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
5 | ||
| 71769-60010B6 |
ANA1#..240 DK.GRAY,TRIM1#,2# |
5 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 79011-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 79011-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79011-72010E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 79011-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 79011-72011B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79011-72011E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 79011-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 71077-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71077-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71077-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71077-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71077-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 71077-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71077-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 79157 - COVER, NO.1 SEAT BACK | ||||
| 79157-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 79157-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 79157-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 79157-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79157-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 71651-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| Common parts | ||||
| 72702-60130 | ||||
| 72749-48020 | ||||
| 72749-48030 | ||||
| 78899-48020 | ||||
| 78899-48030 | ||||
| 78899-60050 | ||||
| 90105-10535 | ||||
| 90109-06292 | ||||
| 90119-10886 | ||||
| 90159-60532 | ||||
| 90167-40044 | ||||
| 90170-05004 | ||||
| 90463-13003 | ||||
| 91551-80835 | ||||
| 93520-54014 | ||||
| 93560-54010 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||

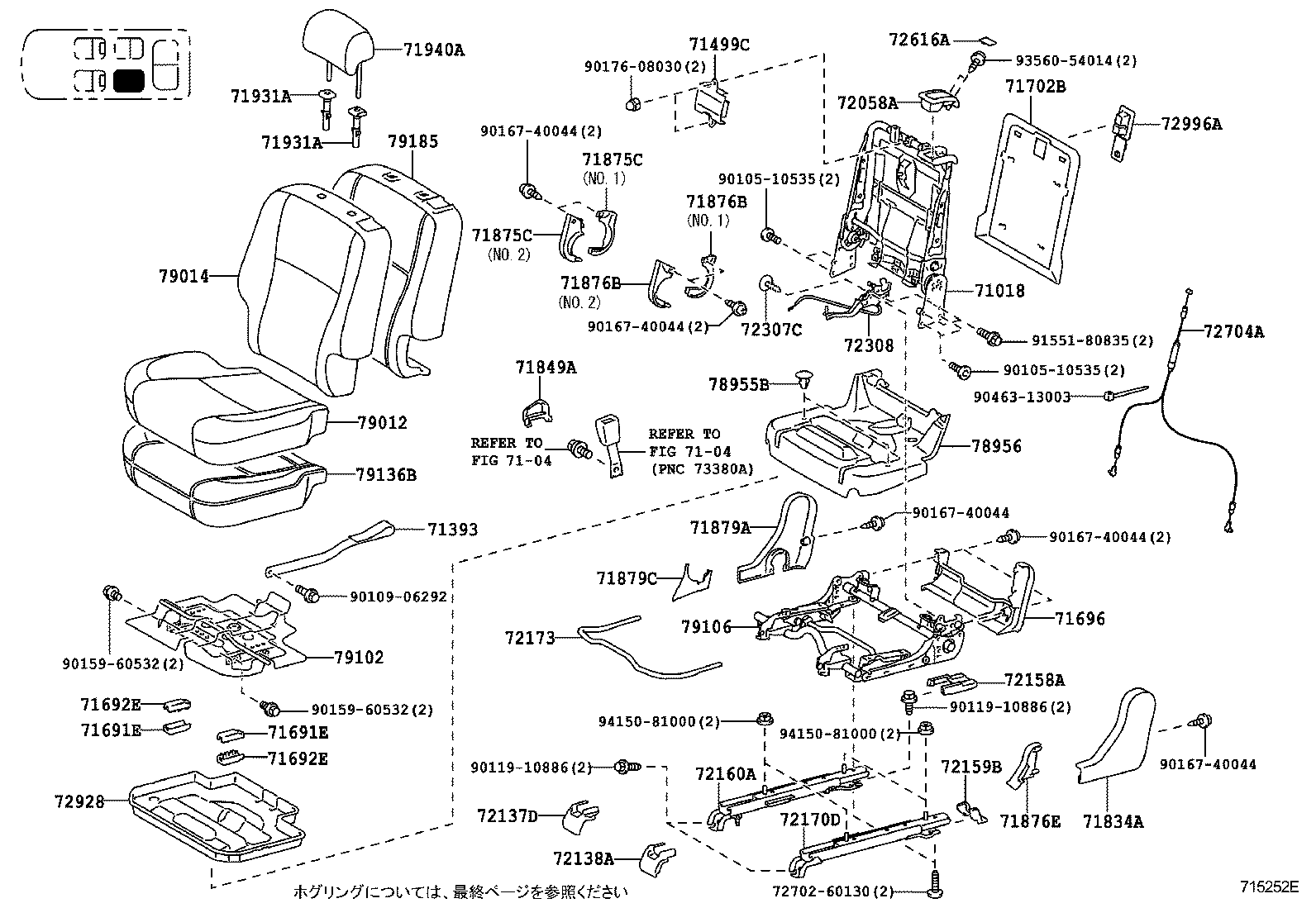

(0709- )
ﾘﾔ NO.1 ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 71393-72010E0 |
ANA1#..240 PLUM,TRIM4# |
2 | ||
| 71393-72010E0 |
ANA1#..240 PLUM,TRIM40 |
2 | ||
| 71393-72010B1 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71393-72010C0 |
ANA1#..240 BLACK,TRIM15,2#,40 |
2 | ||
| 71393-72010B2 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 71393-72010B2 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#..240 5人乗り,PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#..240 5人乗り,PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71696 - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71696-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71696-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71696-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71702-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 71702-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71702-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71702-72010C0 |
ANA1#..240 BLACK,TRIM15,2# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71834-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71834-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.1 |
2 | ||
| 71875-72020B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.2 |
2 | ||
| 71875-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.1 |
2 | ||
| 71875-72020E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.2 |
2 | ||
| 71875-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.1 |
2 | ||
| 71875-72020B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.2 |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.1 |
2 | ||
| 71875-72020B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.2 |
2 | ||
| 71875-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2#,NO.1 |
2 | ||
| 71875-72020E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.2 |
2 | ||
| 71875-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,NO.1 |
2 | ||
| 71875-72020B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,NO.2 |
2 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.1 |
1 | ||
| 71876-72060B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.2 |
1 | ||
| 71876-72010B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.1 |
1 | ||
| 71876-72060E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.2 |
1 | ||
| 71876-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.1 |
1 | ||
| 71876-72060B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.2 |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.1 |
1 | ||
| 71876-72060B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1#,NO.2 |
1 | ||
| 71876-72010B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.1 |
1 | ||
| 71876-72060E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.2 |
1 | ||
| 71876-72010E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4#,NO.1 |
1 | ||
| 71876-72060B2 |
ANA1#..240 DK.GRAY,TRIM1#,2#,NO.2 |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-72020B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71876-72020B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71876-72020E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-72020B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 71879-72020E0 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71879-72020B2 |
ANA1#..240 DK.GRAY,TRIM1#,2# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71876-72050E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71876-72050B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 71876-72050B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-72040E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71940-72040B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71940-72090B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-72090B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-72040B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72058-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 72058-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72058-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 72058-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-72030C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72137-72040C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH | ||||
| 72137-72060C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72137-68020C0 |
ANA1#,GGA10..CBU BLACK |
2 | ||
| 72137-72100 |
ANA1#,GGA10..CBU |
2 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72160-72020 |
ANA1#,GGA10..CBU |
1 | ||
| 72170D - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-72030 |
ANA1#,GGA10..CBU |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-72010 |
ANA1#,GGA10..CBU |
2 | ||
| 72308 - LINK SUB-ASSY, RECLINING CONTROL, LH | ||||
| 72308-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-48020B1 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 72615-48020B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72615-48020B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 72615-48020E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 72615-48020B3 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-72020 |
ANA1#,GGA10..CBU |
2 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-72010E0 |
ANA1#..240,240F PLUM BROWN,TRIM4# |
1 | ||
| 72928-72010B0 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
1 | ||
| 72928-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72928-72010B1 |
ANA1#..(240,240F)..CBU MD.GRAY,TRIM1# |
1 | ||
| 72928-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 72928-72010B1 |
ANA1#..240 240“E−Selection” *(Z),MD.GRAY,TRIM15 |
1 | ||
| 72928-72010B3 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 72928-72010E0 |
ANA1#..240 240“E−Selection” *(Z),PLUM BROWN,TRIM4# |
1 | ||
| 72928-72010E1 |
ANA1#..(240,240F)..CBU PLUM,TRIM4# |
1 | ||
| 72928-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 72928-72010C1 |
ANA1#..240 BLACK,TRIM2# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM,TRIM4# |
2 | ||
| 72996-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 72996-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 72996-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 72996-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 78955B - CLIP(FOR REARSEAT UNDER TRAY) | ||||
| 71769-60010B9 |
ANA1#..(240,240F)..CBU GRAY,TRIM1# |
5 | ||
| 71769-60010E6 |
ANA1#..(240,240F)..CBU PLUM BROWN,TRIM4# |
5 | ||
| 71769-60010B6 |
ANA1#..240 DK.GRAY,TRIM1#,2# |
5 | ||
| 78956 - COVER, REAR SEAT UNDER TRAY LH | ||||
| 78955-72030E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 78955-72030B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM1#,2# |
1 | ||
| 78955-72030B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 79012-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 79012-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79012-72011B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79012-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 79012-72011E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 79012-72010E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 79012-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71078-72010B1 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 71078-72010E0 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 71078-72011E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71078-72011B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71078-72070B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 71078-72012B2 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71078-72012E0 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 71078-72070B0 |
ANA1#..240 5人乗り,DK.GRAY,TRIM1#,2# |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 71652-72010 |
ANA1#..(240,240F)..CBU |
1 | ||
| Common parts | ||||
| 72702-60130 | ||||
| 90105-10535 | ||||
| 90109-06292 | ||||
| 90119-10886 | ||||
| 90159-60532 | ||||
| 90167-40044 | ||||
| 90176-08030 | ||||
| 90463-13003 | ||||
| 91551-80835 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||

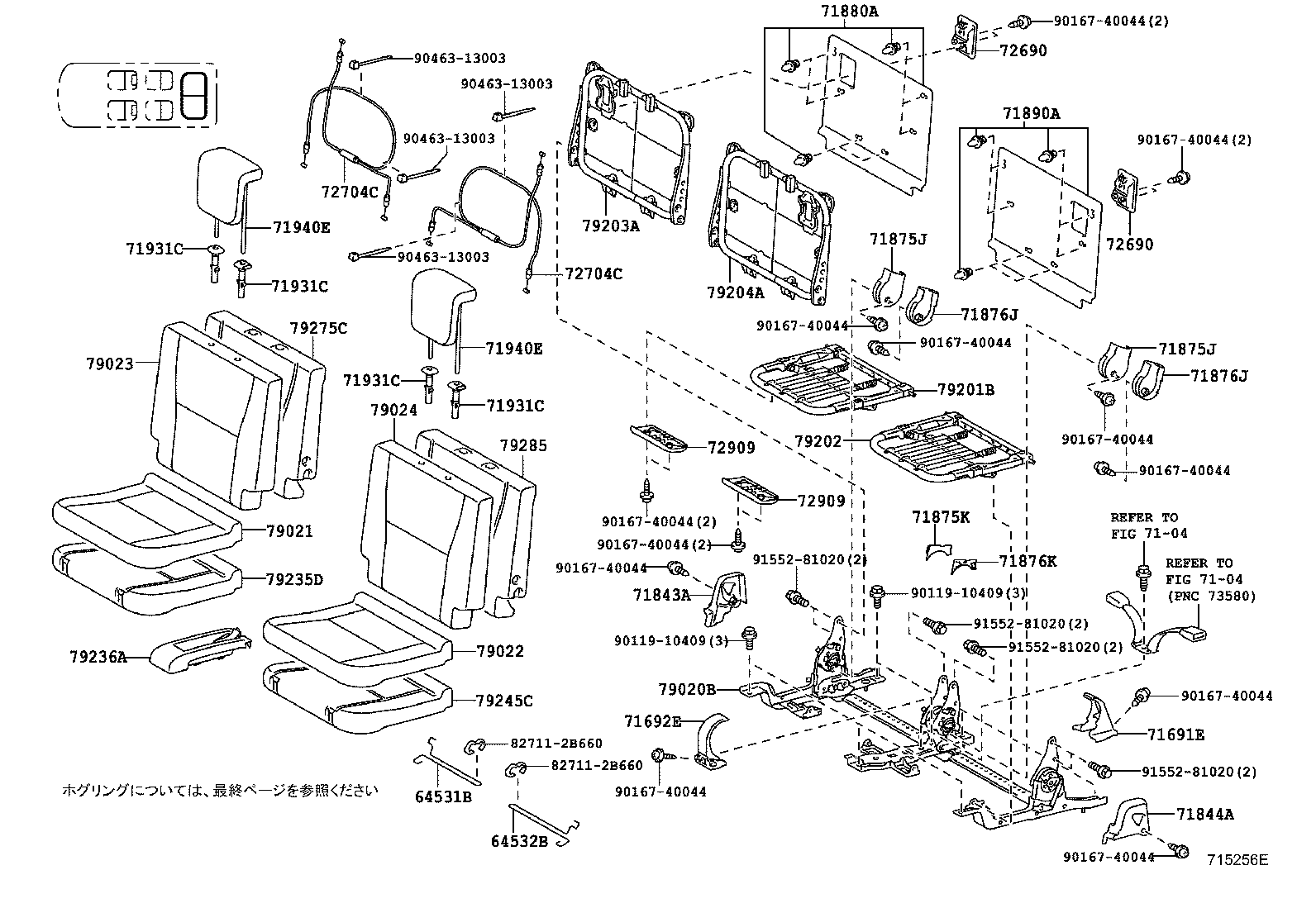

(0709- )
ﾘﾔ NO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64531B - BAR, HINGE TORSION, RH | ||||
| 64531-72010 |
ANA1#..240 5人乗り |
1 | ||
| 64531-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64532B - BAR, HINGE TORSION, LH | ||||
| 64532-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64532-72010 |
ANA1#..240 5人乗り |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011E0 |
ANA1#..240 5人乗り,PLUM,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71691-72011B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4#,ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 71692-72020 |
ANA1#,GGA10..CBU ﾘﾔ NO.1 ｼｰﾄ |
4 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-72010 |
ANA1#..240 5人乗り |
1 | ||
| 71843-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-72010 |
ANA1#..240 5人乗り |
1 | ||
| 71844-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72040B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71875-72040B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71875-72040E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71875-72040B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71875-72040B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71875-72040E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71875-72040B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 71875-72040B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
2 | ||
| 71875-72040B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 71875-72040B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
2 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72040B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71875-72040B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71875-72040E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71875-72040B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71875-72040B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71875-72040E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71875-72040B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 71875-72040B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
2 | ||
| 71875-72040B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 71875-72040B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
2 | ||
| 71875K - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-72060B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 71875-72060B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
1 | ||
| 71875-72060E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71875-72060E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
1 | ||
| 71875-72060B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71875-72060B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 71875-72060B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71875-72060B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
1 | ||
| 71875-72060B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
1 | ||
| 71875-72060B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-72030E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71876-72030B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71876-72030E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71876-72030B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 71876-72030B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71876-72030B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71876-72030B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
2 | ||
| 71876-72030B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 71876-72030B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71876-72030B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
2 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-72030E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71876-72030B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71876-72030E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71876-72030B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 71876-72030B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71876-72030B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71876-72030B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
2 | ||
| 71876-72030B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 71876-72030B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71876-72030B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
2 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-72040B1 |
ANA1#..240 MD.GRAY,TRIM15 |
1 | ||
| 71876-72040B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 71876-72040B1 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 71876-72040B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
1 | ||
| 71876-72040B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 71876-72040E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
1 | ||
| 71876-72040E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
1 | ||
| 71876-72040B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
1 | ||
| 71876-72040B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
1 | ||
| 71876-72040B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 71880-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2#,4# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-72010C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2#,4# |
1 | ||
| 71890-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-52030E2 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,PLUM,TRIM4# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-52030E2 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,PLUM,TRIM4# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-52030E2 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,PLUM,TRIM4# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-52030E2 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,PLUM,TRIM4# |
2 | ||
| 71930-52030B1 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ANA1#,GGA10..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020E8 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),PLUM BROWN,TRIM4# |
2 | ||
| 71930-52030B7 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E2 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),PLUM,TRIM4# |
2 | ||
| 71930-52030B0 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ有り),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B4 |
ANA1#..240 ﾛｯｸ付(ﾎﾞﾀﾝ無し),240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71931-42020B6 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.GRAY,TRIM1# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71940-72010B2 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71940-72010B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71940-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71940-72010B3 |
ANA1#..240 5人乗り,MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-72010E1 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71940-72100B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-72010B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71940-72010B2 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71940-72010B2 |
ANA1#..240 GRAY,TRIM1# |
2 | ||
| 71940-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
2 | ||
| 71940-72010B3 |
ANA1#..240 5人乗り,MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-72010E1 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71940-72100B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-72010B3 |
ANA1#..240 MEDIUM GRAY,TRIM1# |
2 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-28050C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 72690-28050C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2#,4# |
2 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-28050C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 72690-28050C0 |
ANA1#..240 5人乗り,BLACK,TRIM1#,2#,4# |
2 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-72010 |
ANA1#..240 5人乗り |
2 | ||
| 72704-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-72010 |
ANA1#..240 5人乗り |
2 | ||
| 72704-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 72909 - HANDLE 3RD SEAT | ||||
| 71915-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
2 | ||
| 71915-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71915-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71915-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71915-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71915-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71915-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71915-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 71915-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
2 | ||
| 71915-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 72909 - HANDLE 3RD SEAT | ||||
| 71915-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
2 | ||
| 71915-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
2 | ||
| 71915-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
2 | ||
| 71915-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
2 | ||
| 71915-72010E0 |
ANA1#,GGA10..(240,240F,240G,350G)..CBU PLUM BROWN,TRIM4# |
2 | ||
| 71915-72010B1 |
ANA1#..240 MD.GRAY,TRIM1# |
2 | ||
| 71915-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
2 | ||
| 71915-72010B2 |
ANA1#..240 DK.GRAY,TRIM15,2# |
2 | ||
| 71915-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
2 | ||
| 71915-72010B1 |
ANA1#..240 MD.GRAY,TRIM15 |
2 | ||
| 79020B - LEG ASSY, NO.2 SEAT | ||||
| 79030-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79030-72011 |
ANA1#..240 5人乗り |
1 | ||
| 79030-72010 |
ANA1#,GGA10..CBU |
1 | ||
| 79030-72011 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-72010B2 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
1 | ||
| 79021-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 79021-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79021-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 79021-72010B3 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 79021-72050B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 79021-72010E1 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79021-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 79021-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 79021-72010B2 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
1 | ||
| 79021-72010E1 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
1 | ||
| 79021-72010B3 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 79021-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79021-72050B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 79023-72010E1 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
1 | ||
| 79023-72050B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 79023-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 79023-72011E1 |
ANA1#..240 5人乗り,PLUM,TRIM4# |
1 | ||
| 79023-72010B2 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
1 | ||
| 79023-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79023-72011E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 79023-72010B3 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 79023-72011B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79023-72011B3 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 79023-72051B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM2# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-72010B2 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
1 | ||
| 79024-72010B2 |
ANA1#..240 GRAY,TRIM1# |
1 | ||
| 79024-72010E1 |
ANA1#..240 PLUM BROWN,TRIM4# |
1 | ||
| 79024-72010B3 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 79024-72010E1 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
1 | ||
| 79024-72050B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM1#,2# |
1 | ||
| 79024-72010B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79024-72011B3 |
ANA1#..240 MD.GRAY,TRIM1# |
1 | ||
| 79024-72011B3 |
ANA1#..240 5人乗り,MD.GRAY,TRIM1# |
1 | ||
| 79024-72011E1 |
ANA1#..240 PLUM,TRIM4# |
1 | ||
| 79024-72051B0 |
ANA1#..240 240“E−Selection” *(Z),DK.GRAY,TRIM2# |
1 | ||
| 79024-72011E1 |
ANA1#..240 5人乗り,PLUM,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79201-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79201-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79202-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79203-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79204-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79335-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79335-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-72010B1 |
ANA1#..240 5人乗り,MD.GRAY,TRIM15 |
1 | ||
| 79236-72010E0 |
ANA1#,GGA10..CBU PLUM BROWN,TRIM4# |
1 | ||
| 79236-72010B2 |
ANA1#..240 5人乗り,DK.GRAY,TRIM15,2# |
1 | ||
| 79236-72010B2 |
ANA1#..240,ARIAL DK.GRAY,TRIM15,2# |
1 | ||
| 79236-72010B0 |
ANA1#..240 5人乗り,GRAY,TRIM1# |
1 | ||
| 79236-72010B0 |
ANA1#,GGA10..CBU GRAY,TRIM1# |
1 | ||
| 79236-72010E0 |
ANA1#..240 5人乗り,PLUM BROWN,TRIM4# |
1 | ||
| 79236-72010B1 |
ANA1#..240,ARIAL MD.GRAY,TRIM15 |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79335-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79335-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79375-72010 |
ANA1#..240 5人乗り |
1 | ||
| 79375-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79385-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 79385-72010 |
ANA1#..240 5人乗り |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10409 | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 91552-81020 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0709- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
