ANA10-AWXNK (2007)

Toyota Mark X Zio

Production Sep 2007 - Feb 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

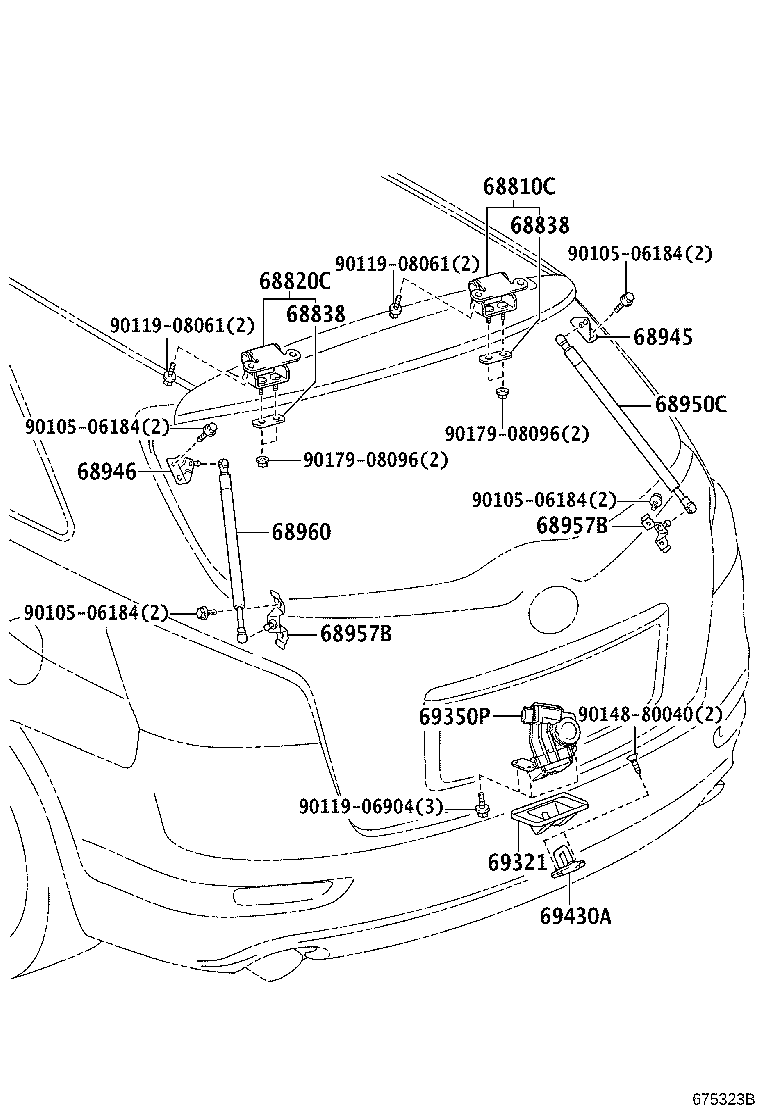

Click highlighted areas on diagram

diagram 68810C 68820C 68838 68838 68945 68946 68950C 68957B 68957B 68960 69321 69350P 69430A 9010506184 9010506184 9010506184 9010506184 9011906904 9011908061 9011908061 9014880040 9017908096 9017908096
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-21050

ANA1#,GGA10..240,240G,350G,ARIAL

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-21050

ANA1#,GGA10..240,240G,350G,ARIAL

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-44020

ANA1#,GGA10..240,240G,350G,ARIAL

厚さ=1.0

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-44020

ANA1#,GGA10..240,240G,350G,ARIAL

厚さ=1.0

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0W440

ANA1#,GGA10..240,240G,350G,ARIAL

 1
68950-0W450

ANA1#,GGA10..240,240G,350G,ARIAL

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式ﾅﾝﾊﾞｰﾌﾟﾚｰﾄ対応

 1
68957B - BRACKET, BACK DOOR STAY, LOWER
68957-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 2
68957B - BRACKET, BACK DOOR STAY, LOWER
68957-72010

ANA1#,GGA10..240,240G,350G,ARIAL

 2
68960 - STAY ASSY, BACK DOOR, LH
68960-0W450

ANA1#,GGA10..240,240G,350G,ARIAL

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式ﾅﾝﾊﾞｰﾌﾟﾚｰﾄ対応

 1
68960-0W440

ANA1#,GGA10..240,240G,350G,ARIAL

 1
69321 - COVER, BACK DOOR LOCK
69321-28020

ANA1#,GGA10..240,240G,350G,ARIAL

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-28150

ANA1#,GGA10..CBU

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-28050

ANA1#,GGA10..240,240G,350G,ARIAL

 1
Common parts
90105-06184
90119-06904
90119-08061
90148-80040
90179-08096
