ANA10-AWXNK (2007)
Toyota Mark X Zio

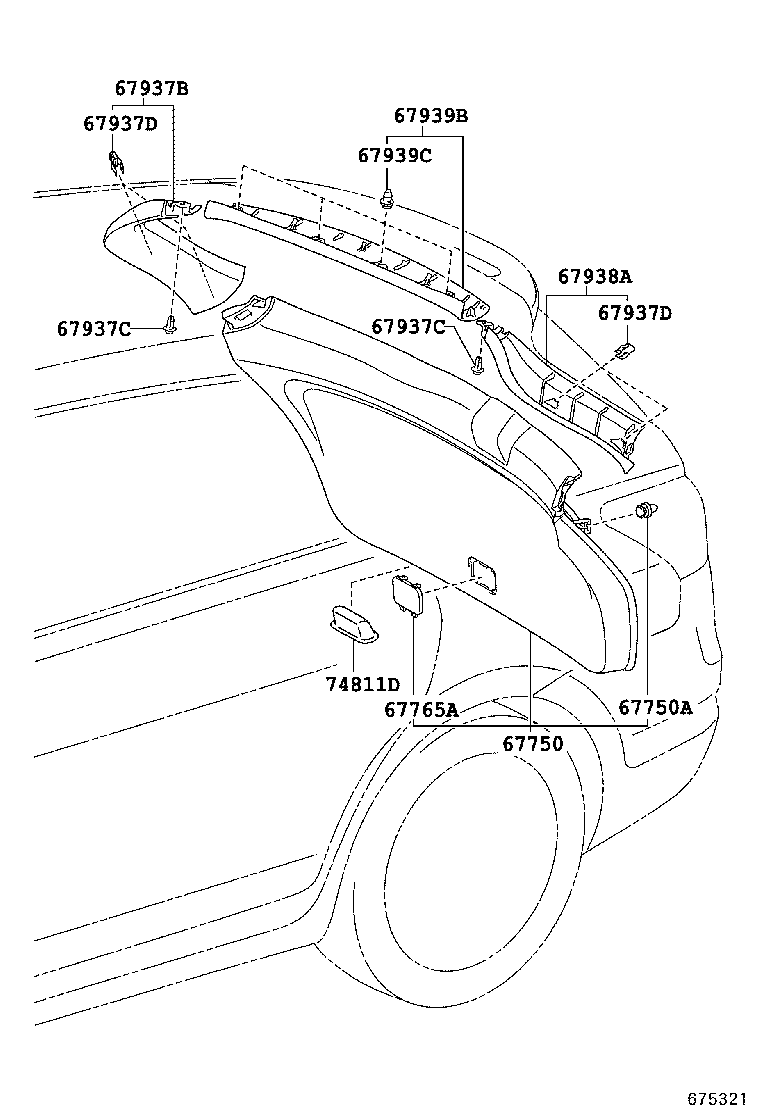

ILLUST NO. 2 OF 2(0709- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ANA1#,GGA10..240,240G,350G,ARIAL |
12 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-72010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-72010B0 |
ANA1#..240,ARIAL GRAY,TRIM1#,2#,4# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-05063C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-05063C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
2 | ||
| 67937D - RETAINER, DOOR TRIM | ||||
| 67771-58010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
4 | ||
| 67937D - RETAINER, DOOR TRIM | ||||
| 67771-58010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-72010B0 |
ANA1#..240,ARIAL GRAY,TRIM1#,2#,4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-72010B0 |
ANA1#..240,ARIAL GRAY,TRIM1#,2#,4# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
ANA1#,GGA10..240,240G,350G,ARIAL |
4 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010C0 |
ANA1#..240,ARIAL BLACK,TRIM1#,2#,4# |
1 | ||

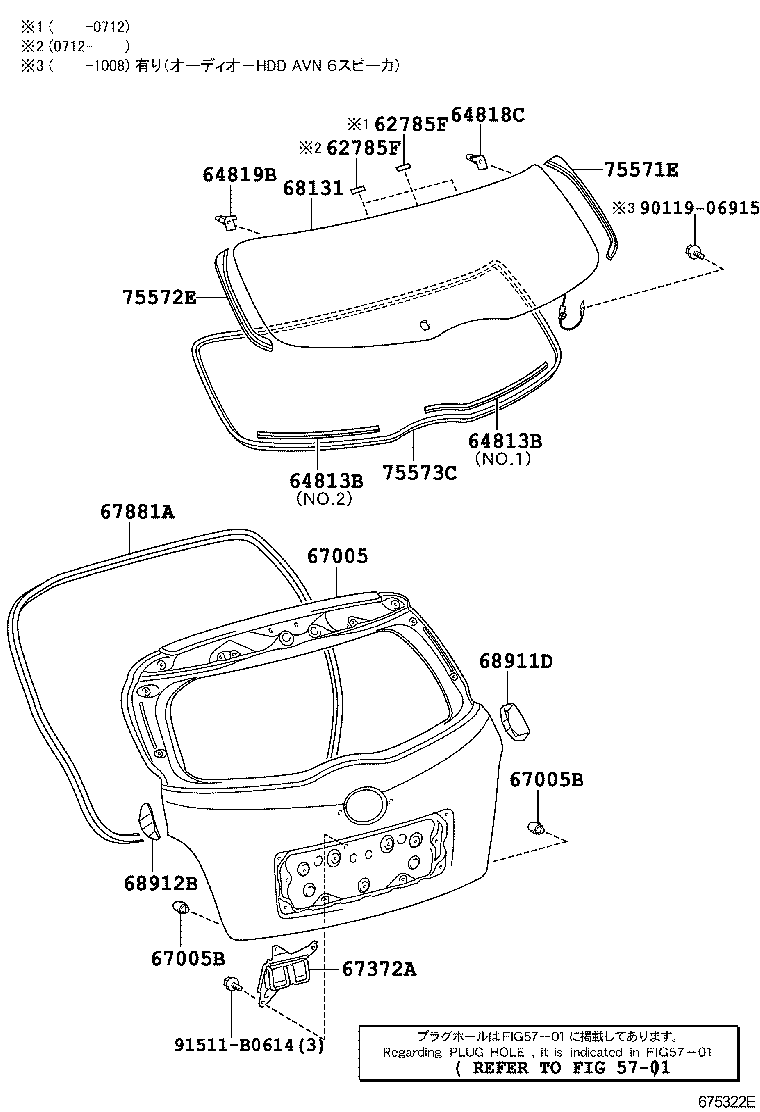

ILLUST NO. 1 OF 2(0709- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
ANA1#,GGA10..CBU |
1 | ||
| 62785-60030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
ANA1#,GGA10..CBU |
1 | ||
| 62785-60030 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 64813B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64814-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
1 | ||
| 64813-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
1 | ||
| 64813B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64814-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.2 |
1 | ||
| 64813-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL NO.1 |
1 | ||
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-72010 |
ANA1#..CBU ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 67005-72020 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67005-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り |
1 | ||
| 67005-72010 |
ANA1#..240,240G ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09080 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09080 |
ANA1#,GGA10..240,240G,350G,ARIAL |
2 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-72902 |
ANA1#,GGA10 *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−HDD AVN 6ｽﾋﾟｰｶ |
1 | ||
| 68131-72901 |
ANA1#,GGA10..240,240G,350G,ARIAL *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68911D - COVER, BACK DOOR STAY, RH | ||||
| 68911-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 68912B - COVER, BACK DOOR STAY, LH | ||||
| 68912-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75571E - MOULDING, BACK WINDOW, OUTSIDE UPPER RH | ||||
| 75571-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75572E - MOULDING, BACK WINDOW, OUTSIDE UPPER LH | ||||
| 75572-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-72010 |
ANA1#,GGA10..240,240G,350G,ARIAL |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
