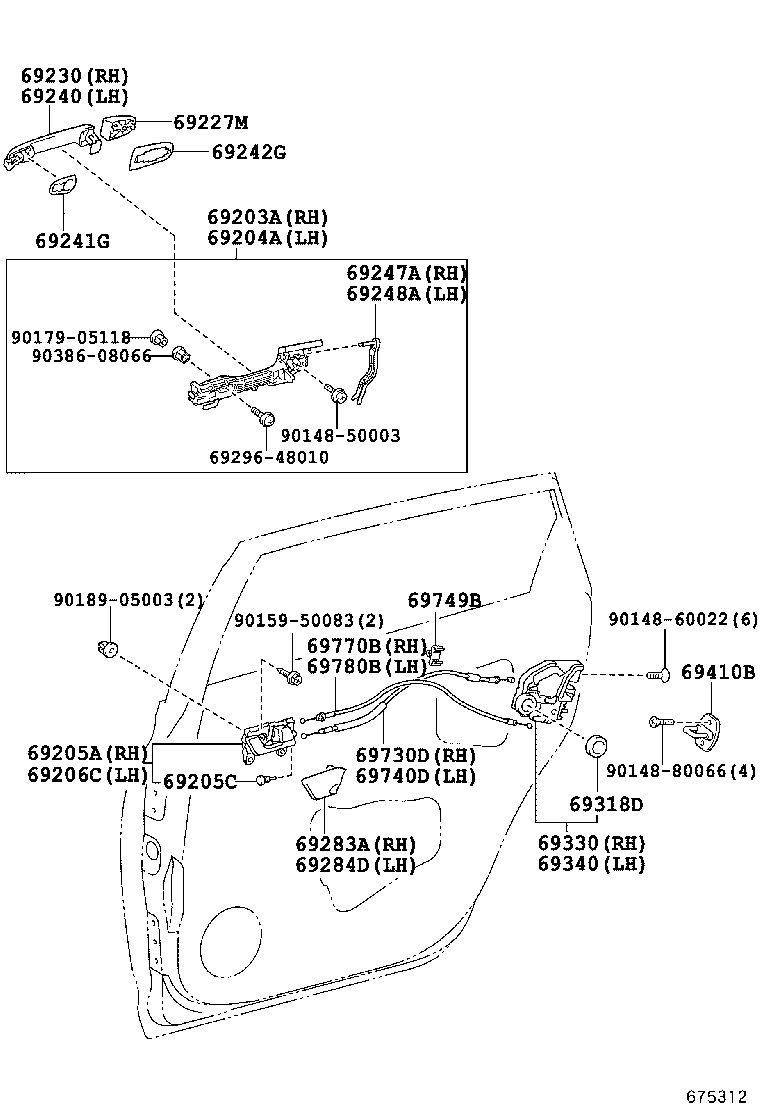

Toyota Mark x zio ANA10 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69270-22010	ANA1#,GGA10..CBU	09/2007 - 10/2007	1
69205-20210C0	ANA1#,GGA10..CBU BLACK	10/2007 - 02/2011	1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69280-22020	ANA1#,GGA10..CBU	09/2007 - 10/2007	1
69206-20210C0	ANA1#,GGA10..CBU BLACK	10/2007 - 02/2011	1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-60020B1	ANA1#..240 DK.GRAY M.M.,1E9	09/2007 - 07/2008	2
69227-60020A1	ANA1#..240 WHITE PEARL CS.,070	09/2007 - 02/2011	2
69227-60020X0	ANA1#..240 BLACKISH RED MC.,3R0	09/2007 - 02/2011	2
69227-60020P6	ANA1#..240 SILVER ME.,1G7	09/2007 - 02/2011	2
69227-60020H1	ANA1#..240 FROSTY GREEN MC.,781	09/2007 - 02/2011	2
69227-60020D9	ANA1#..240 RED M.M.,3R3	09/2007 - 02/2011	2
69227-60020R9	ANA1#..240 LT.BLUE M.M.,8S7	02/2009 - 02/2011	2
69227-60020R4	ANA1#..240 DK.BLUE MC.,8S6	09/2007 - 02/2011	2
69227-60020C1	ANA1#..240 BLACK MC.,209	09/2007 - 02/2011	2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-28070B4	ANA1#..240 DK.GRAY M.M.,1E9	09/2007 - 07/2008	1
69211-28070A3	ANA1#..240 WHITE PEARL CS.,070	09/2007 - 02/2011	1
69211-28070C0	ANA1#..240 BLACK MC.,209	09/2007 - 02/2011	1
69211-28070H2	ANA1#..240 FROSTY GREEN MC.,781	09/2007 - 02/2011	1
69211-28070P9	ANA1#..240 SILVER ME.,1G7	09/2007 - 02/2011	1
69211-28070X2	ANA1#..240 BLACKISH RED MC.,3R0	09/2007 - 02/2011	1
69211-28070V4	ANA1#..240 LT.BLUE M.M.,8S7	02/2009 - 02/2011	1
69211-28070X1	ANA1#..240 RED M.M.,3R3	09/2007 - 02/2011	1
69211-28070R9	ANA1#..240 DK.BLUE MC.,8S6	09/2007 - 02/2011	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-28070B4	ANA1#..240 DK.GRAY M.M.,1E9	09/2007 - 07/2008	1
69211-28070C0	ANA1#..240 BLACK MC.,209	09/2007 - 02/2011	1
69211-28070R9	ANA1#..240 DK.BLUE MC.,8S6	09/2007 - 02/2011	1
69211-28070V4	ANA1#..240 LT.BLUE M.M.,8S7	02/2009 - 02/2011	1
69211-28070A3	ANA1#..240 WHITE PEARL CS.,070	09/2007 - 02/2011	1
69211-28070P9	ANA1#..240 SILVER ME.,1G7	09/2007 - 02/2011	1
69211-28070H2	ANA1#..240 FROSTY GREEN MC.,781	09/2007 - 02/2011	1
69211-28070X2	ANA1#..240 BLACKISH RED MC.,3R0	09/2007 - 02/2011	1
69211-28070X1	ANA1#..240 RED M.M.,3R3	09/2007 - 02/2011	1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-28060	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-60030	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
69247A - PLATE, REAR DOOR OUTSIDE HANDLE RELEASE, RH
69247-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69248A - PLATE, REAR DOOR OUTSIDE HANDLE RELEASE, LH
69248-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-20020C0	ANA1#,GGA10..CBU BLACK	10/2007 - 02/2011	1
69283-22020	ANA1#,GGA10..CBU	09/2007 - 10/2007	1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-20010C0	ANA1#,GGA10..CBU BLACK	10/2007 - 02/2011	1
69284-22020	ANA1#,GGA10..CBU	09/2007 - 10/2007	1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
69330 - LOCK ASSY, REAR DOOR, RH
69050-42021	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69340 - LOCK ASSY, REAR DOOR, LH
69060-42021	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-72010	ANA1#,GGA10..240,240G,350G,ARIAL	09/2007 - 02/2011	1
Common parts
69296-48010
90148-50003
90148-60022
90148-80066
90159-50083
90179-05118
90189-05003
90386-08066
